7 Secure the seat spacer assembly with the 4 x M8
x 20mm Socket Cap Head screws 902100 that
were supplied with spacer.
8 Reconnect the Seat interlock harness onto the
board as shown and secure the harness in place
with 4 x Tie wraps.
9 Secure front cover back onto the mainframe.
10 Reposition the seat onto the carriage, Reconnect
carriage harness and secure Lower back cover
and back pad back onto the seat.
46
ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

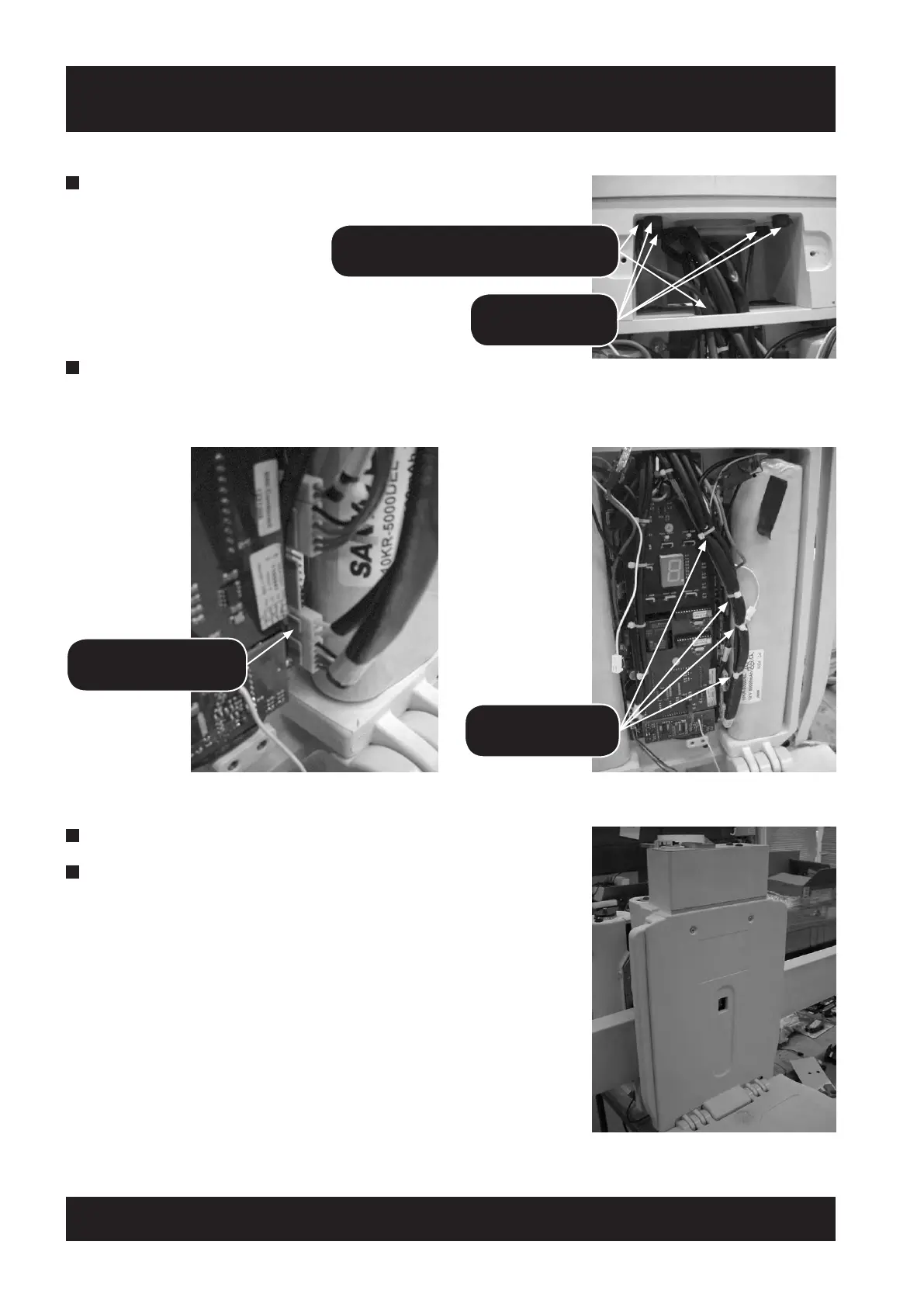

REMOVE 4 x M8
x 20 SCREWS
901200
HARNESS WIRING FED CORRECTLY
THROUGH THE MAINFRAME CASTING
RECONNECT HARNESS
TO MAIN PCB
SECURE WITH 4x
TIE WRAPS
To Next Page
