47
ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

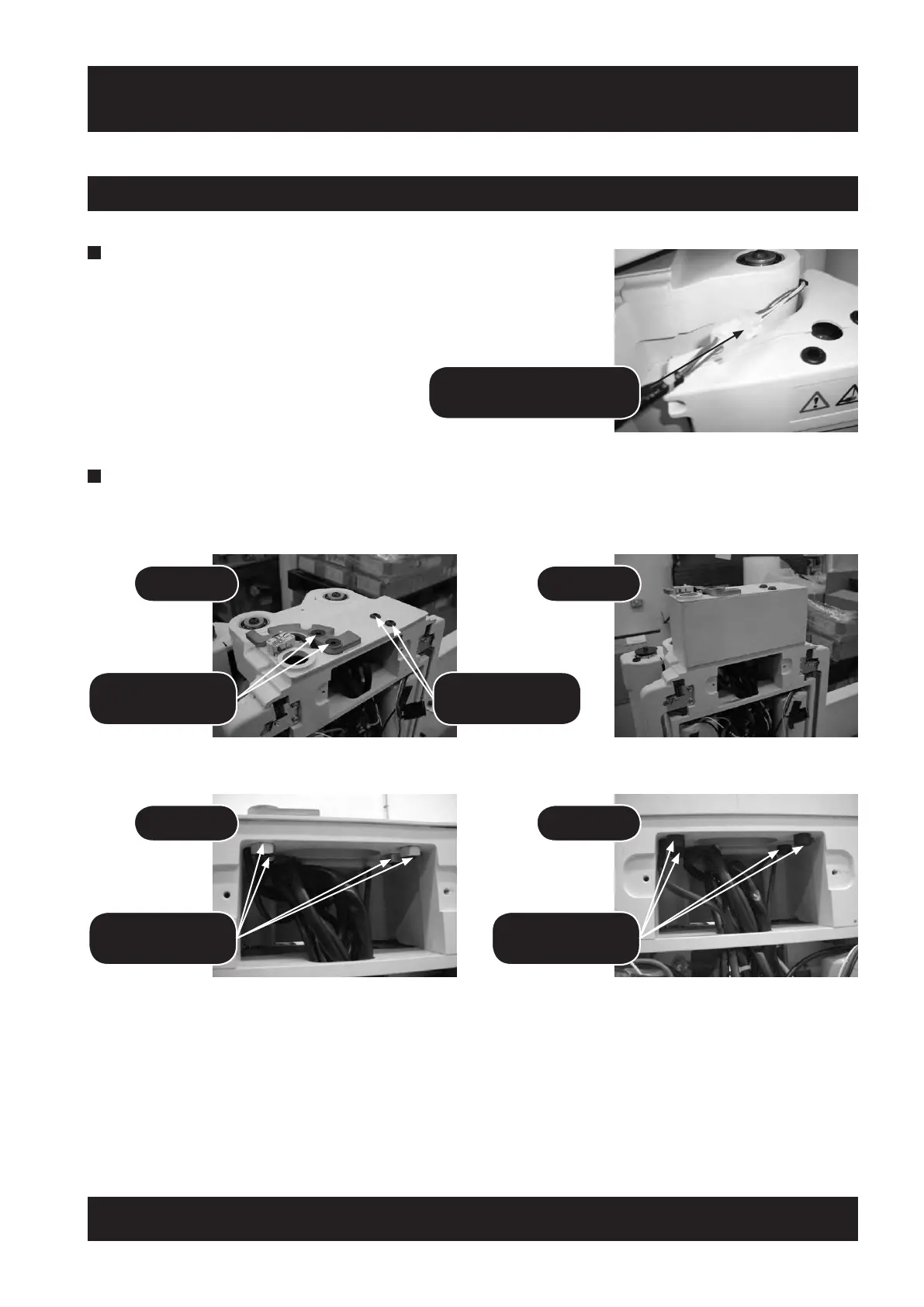

10.3 Assembly Of Powered Swivel On-site
REMOVE 2 x M8
CSK SCREW
901045
OPTION 1A OPTION 2A
REMOVE DOME
HEAD SCREWS
1040250
OPTION 1B OPTION 2B
REMOVE 4 x M8
NUTS
900009
REMOVE 4 x M8
x 20 SCREWS
901200
1 Disconnect the seat from the arm Harness and remove the seat.
2 Remove Seat spacer cover from mainframe by either removing the 2 x M8 CSK screws (901045), 2 x Dome
head screws (1040250) and 4 off M8 nuts (900009) as shown in Option 1A/1B, or by removing the 4 x
M8 x 20 (901200) screws as shown in Option 2A/2B.
DISCONNECT FROM HERE
AND REMOVE FROM SEAT
To Next Page
