ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

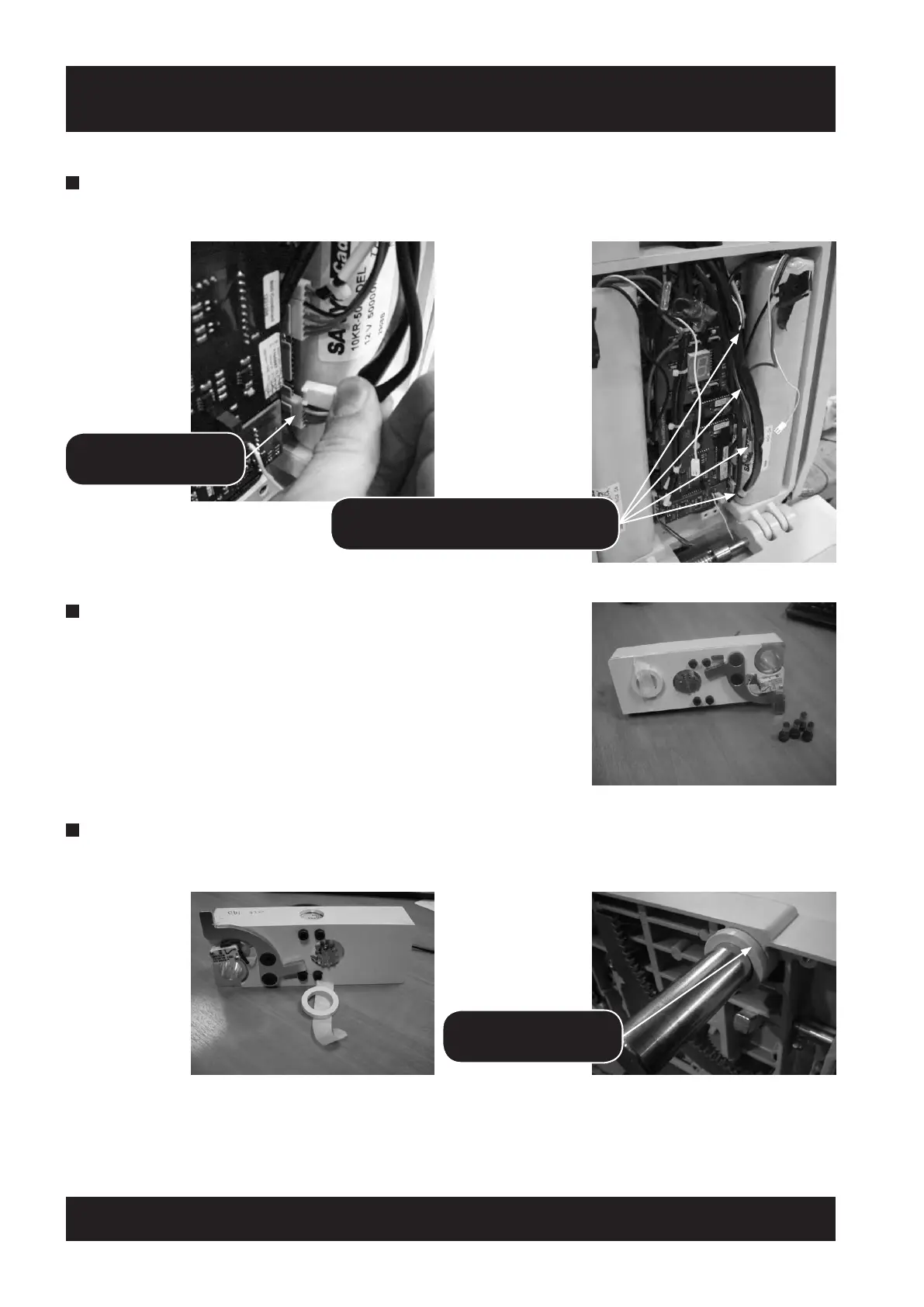

3 Disconnect the Seat interlock harness from the main PCB and remove all the tie wraps that is securing the
harness in position. Completely remove the seat spacer assembly.
REMOVE SEAT
INTERLOCK HARNESS
REMOVE TIE-WRAPS SECURING THE
INTERLOCK HARNESS IN POSITION
4 Unpack pre-assembled Power Swivel Assembly
1243007 – 530 Powered Swivel Seat Spacer complete L/H
1243009 – 550 Powered Swivel Seat Spacer complete L/H
1243011 – 580 Powered Swivel Seat Spacer complete L/H
1243013 – 530 Powered Swivel Seat Spacer complete R/H
1243015 – 550 Powered Swivel Seat Spacer complete R/H
1243017 – 580 Powered Swivel Seat Spacer complete R/H
5 Remove Swivel pin thrust washer (112CSB22) from the Powered swivel spacer assembly and position onto
the swivel pin on the bottom of the new powered swivel seat.
SWIVEL PIN
THRUST WASHER
112CSB22
