ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

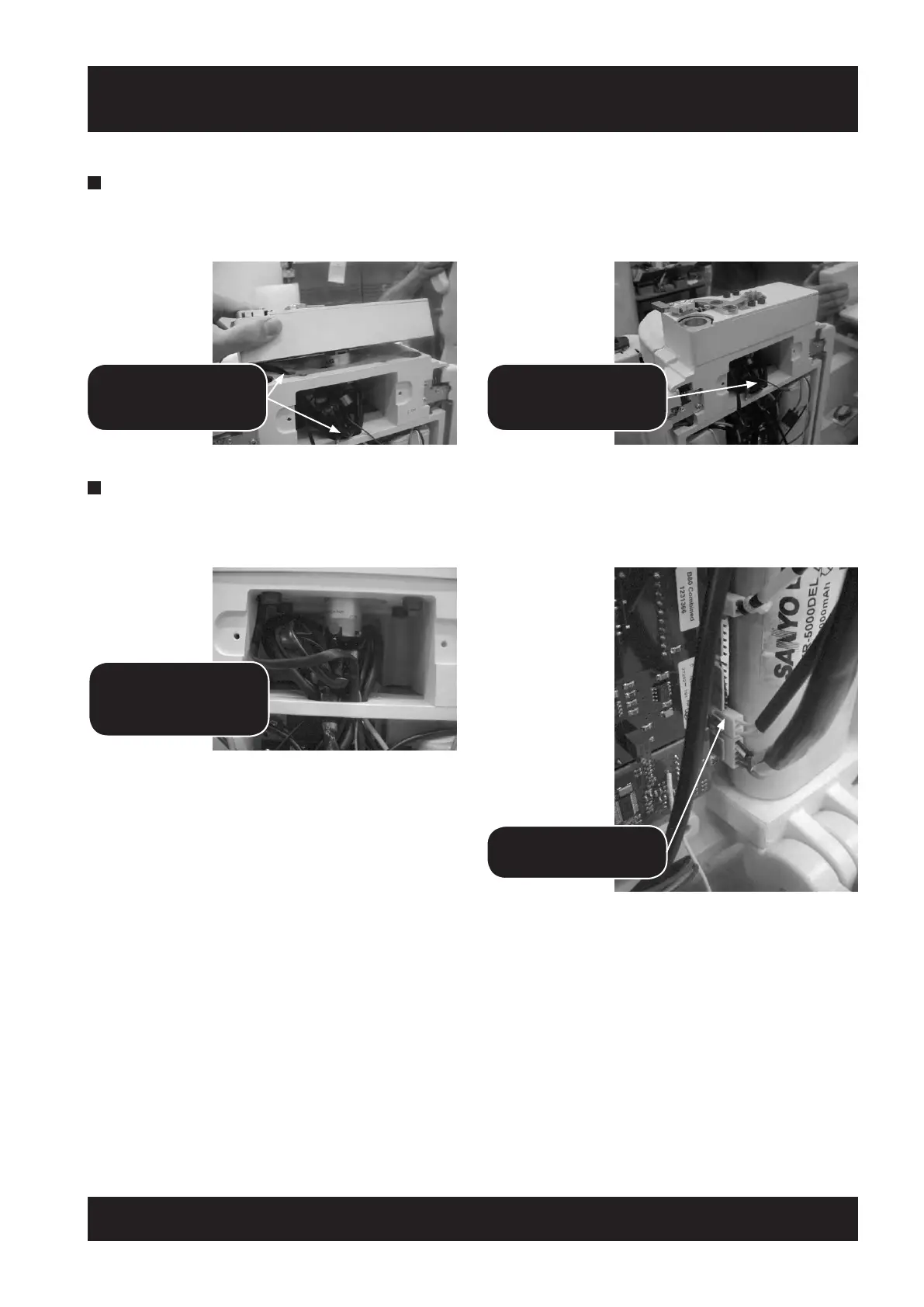

6 Assemble powered swivel assembly onto the mainframe ensuring that the seat interlock harness is fed
through the holes as indicated below and that the motor cables are free and neatly passed through the
mainframe.
SEAT INTERLOCK
HARNESS FED
THROUGH HERE
MOTOR LEADS
FED THROUGH
MAINFRAME HERE
7 Assemble seat spacer assembly to the mainframe and secure in position with 4 x PATCHED M8 x 20mm
Socket Cap Head screws (902100) and connect the seat interlock harness to the main PCB board as
shown below.
4 x PATCHED M8 x
20mm SOCKET CAP
HEAD SCREWS
902100
REMOVE SEAT
INTERLOCK HARNESS
To Next Page
