Acorp 6BX86 - Wake up on LAN

16 / Chapter 3 Installation

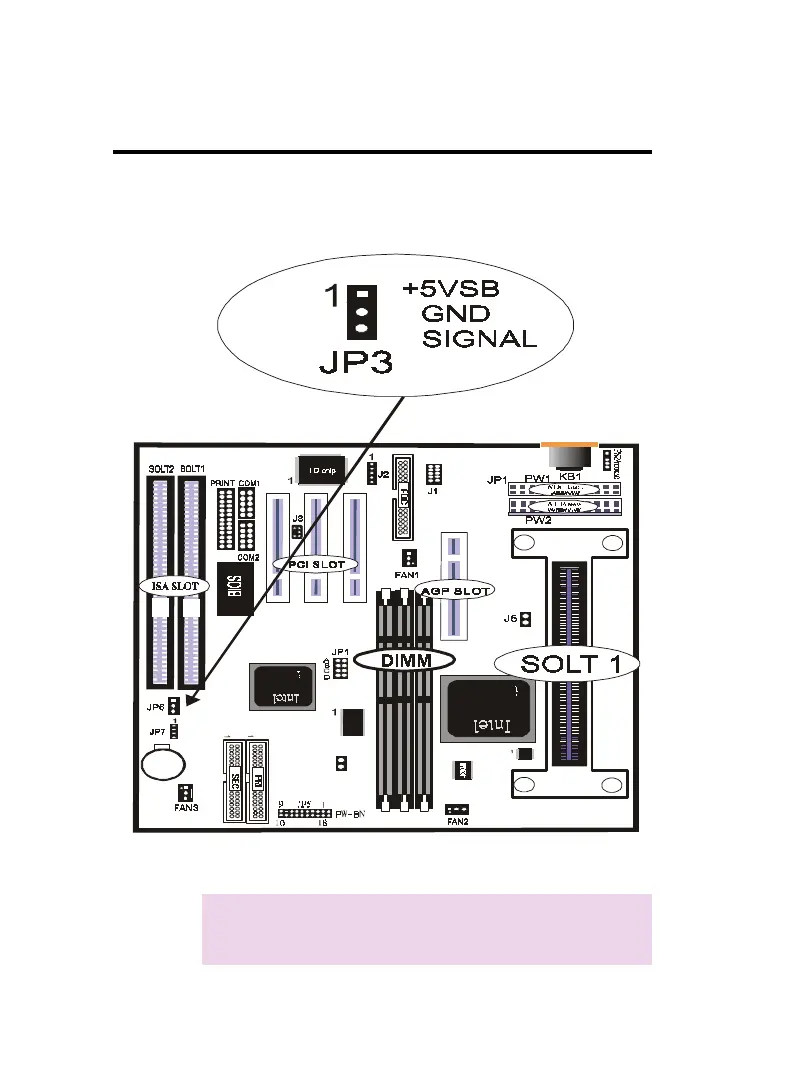

Wake Up On LAN (3-pin WOL)
This connector connects LAN cards and a Wake On LAN output.
When the system is in soft-off mode LAN activity will power on
the system.
IMPORTANT:
Requires an ATX power supply with at least
720ma +5 volt standby power.
JP8
