24 / Chapter 3 Installation

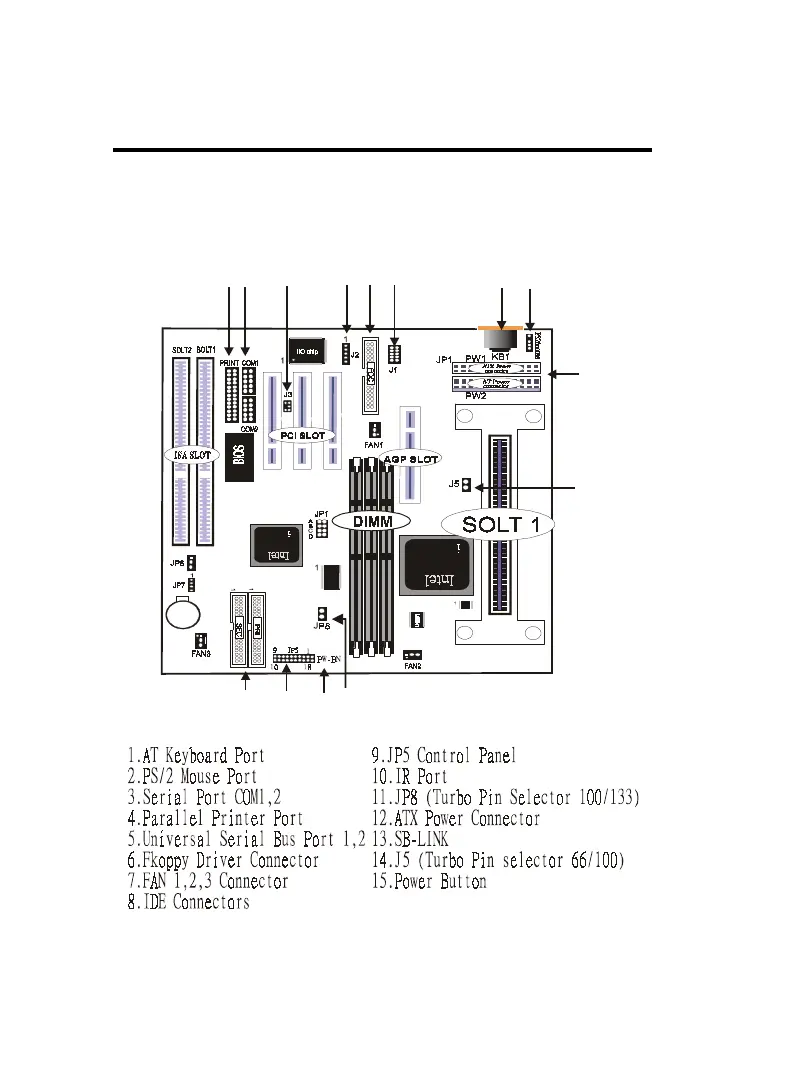

EXTERNAL CONNECTORS
Both Ribbon cable and Connectors on board are with direction signs
to avoid that user insert wrong direction. On other hand, the ribbon
cables should always be connected with the red stripe on the pin 1
of side of the connector.
12346
5
7
8
9
10
11
12
13
14
15
7
7
