30 / Chapter 3 Installation

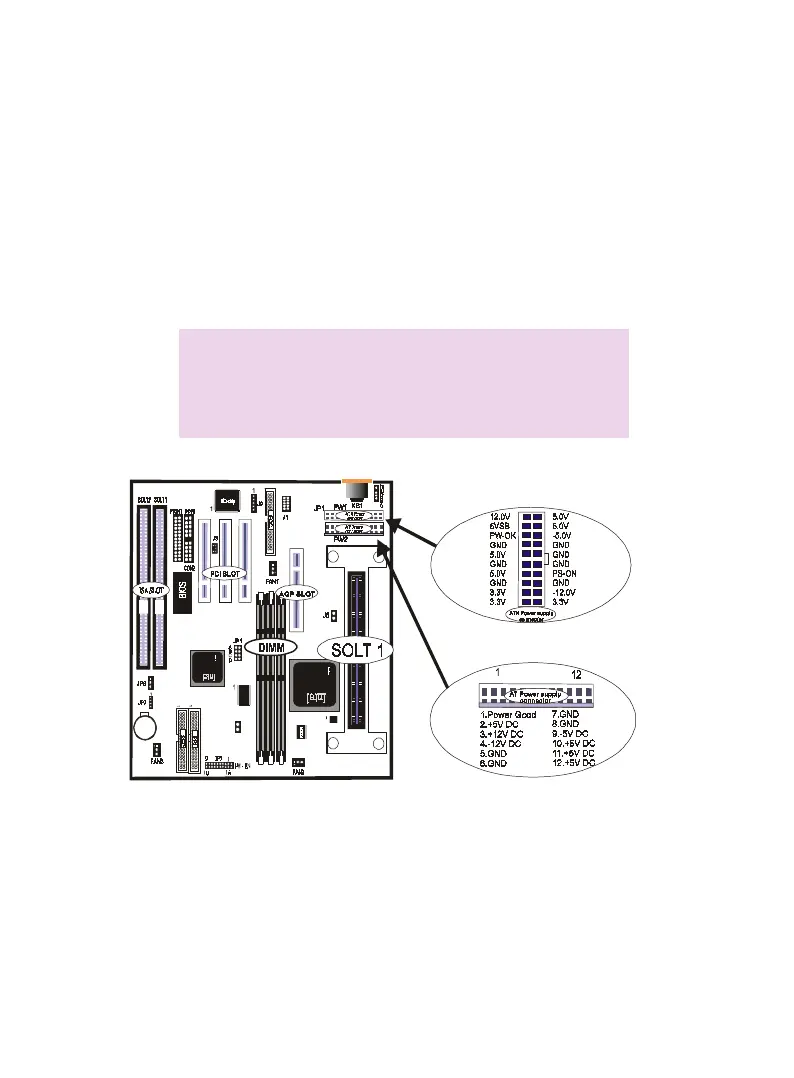

11. ATX Power Supply Connector (20-pin block) - PW1
This connector connects to a ATX power supply. The plug from
the power supply will only insert in one orientation because of
the different hole sizes. Find the proper orientation and push
down firmly making sure that the pins are aligned.
IMPORTANT:
Make sure that the ATX power supply can take at
least 10mAmp load on the 5Volt standby lead
(5VSB). You may experience difficulty in
powering on your system without this.
JP8
