ACTentry A5 Operating and Installation Manual Rev 1.1

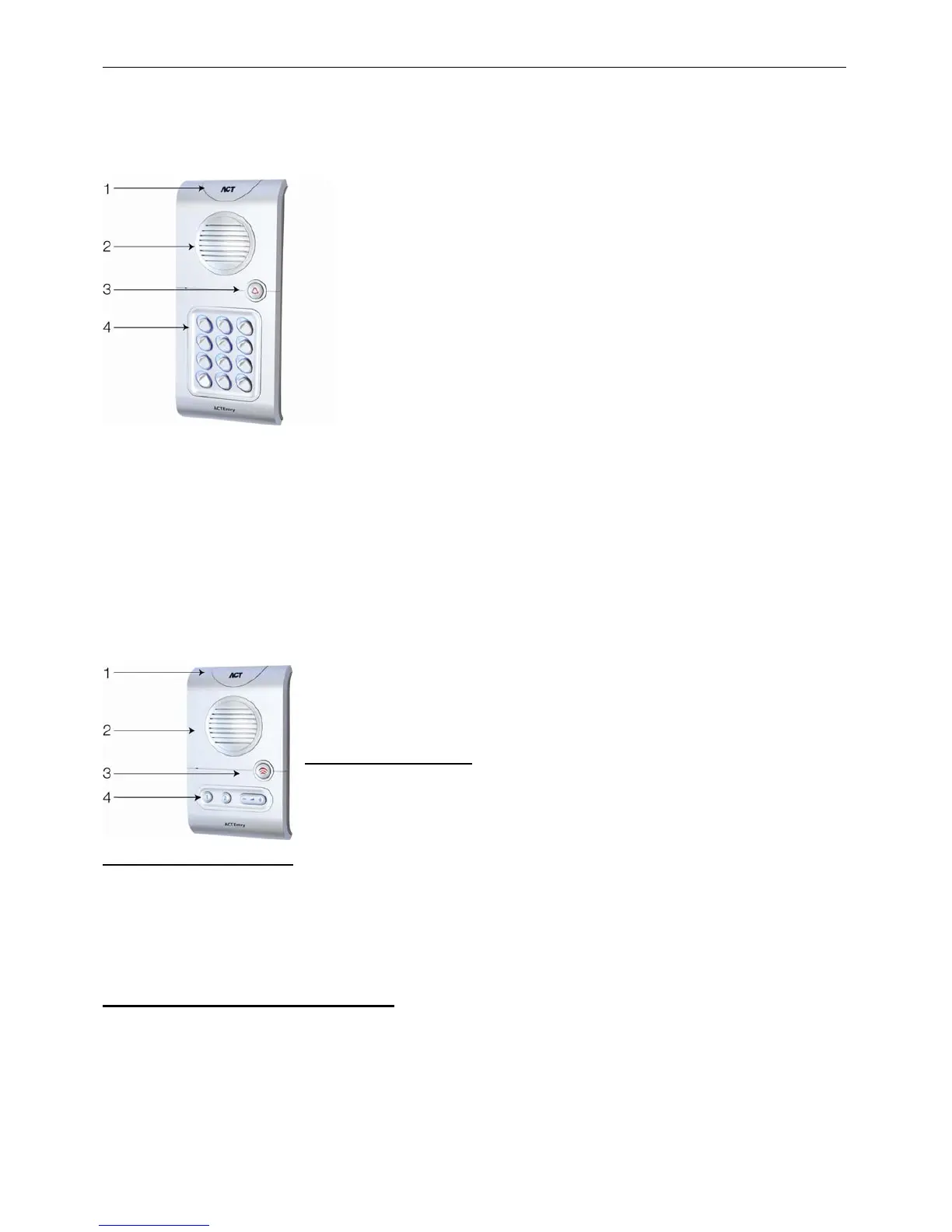

ACTentry A5 Entry Panel
The Entry Panel is securely mounted on the wall at the entrance
to the premises. It consists of a speaker grille (label 2), CALL
button for visitors (label 3) and a keypad (label 4). The keypad is
used for PIN code access or to configure the unit.
Visitors press the CALL button to speak to the householder.
Regular users enter their PIN code to gain access (up to 10 User
Codes).
The keypad and call button are backlit for use in low ambient
light. The backlight can be switched off if desired.
The Entry Panel is rated for IP56. A security screw is concealed
under the cap (label 1).
The volume of the speaker may be adjusted if the unit is in a noisy environment (see page 7).
6 wires minimum are required to connect to the ACTentry Intercom or the ACTentry Phone.
Additional wires are required to connect the onboard relays to the gates or doors.
ACTentry A5 Intercom
The Intercom is mounted indoors and has an integrated speaker (label
2), TALK button (label 3), release buttons for Relay 1 and Relay 2 and
a volume control button (label 4).
Adjust Ring Volume
The Intercom rings when a visitor presses the CALL Button on the
Entry Panel. The volume of the ringing may be adjusted by pressing
the - and + keys.
Adjust Speech Volume
To answer the call, the householder presses the TALK button and begins speaking. The speech
volume may be adjusted using the - and + keys.
To end the call, the householder should press either 1 or 2 to activate the relays, or press the
TALK button.
Activate Relay Indefinitely (Toggle)
Each relay may be switched on indefinitely by holding down the corresponding key on the
intercom for five seconds. This allows the door or gate to be opened indefinitely and the
corresponding button will flash while the relay is active. Press the button again to restore the
relays to the normal state.
