HARDWARE MANUAL
26
Other Connections
This section describes the procedures in preparing the external devices that you can connect
to the camera. The camera supports DC12V power input, Digital Input and Output (DI/DO) and
Audio Input and Output devices using the bundled terminal blocks. The use of these devices,
however, is optional.

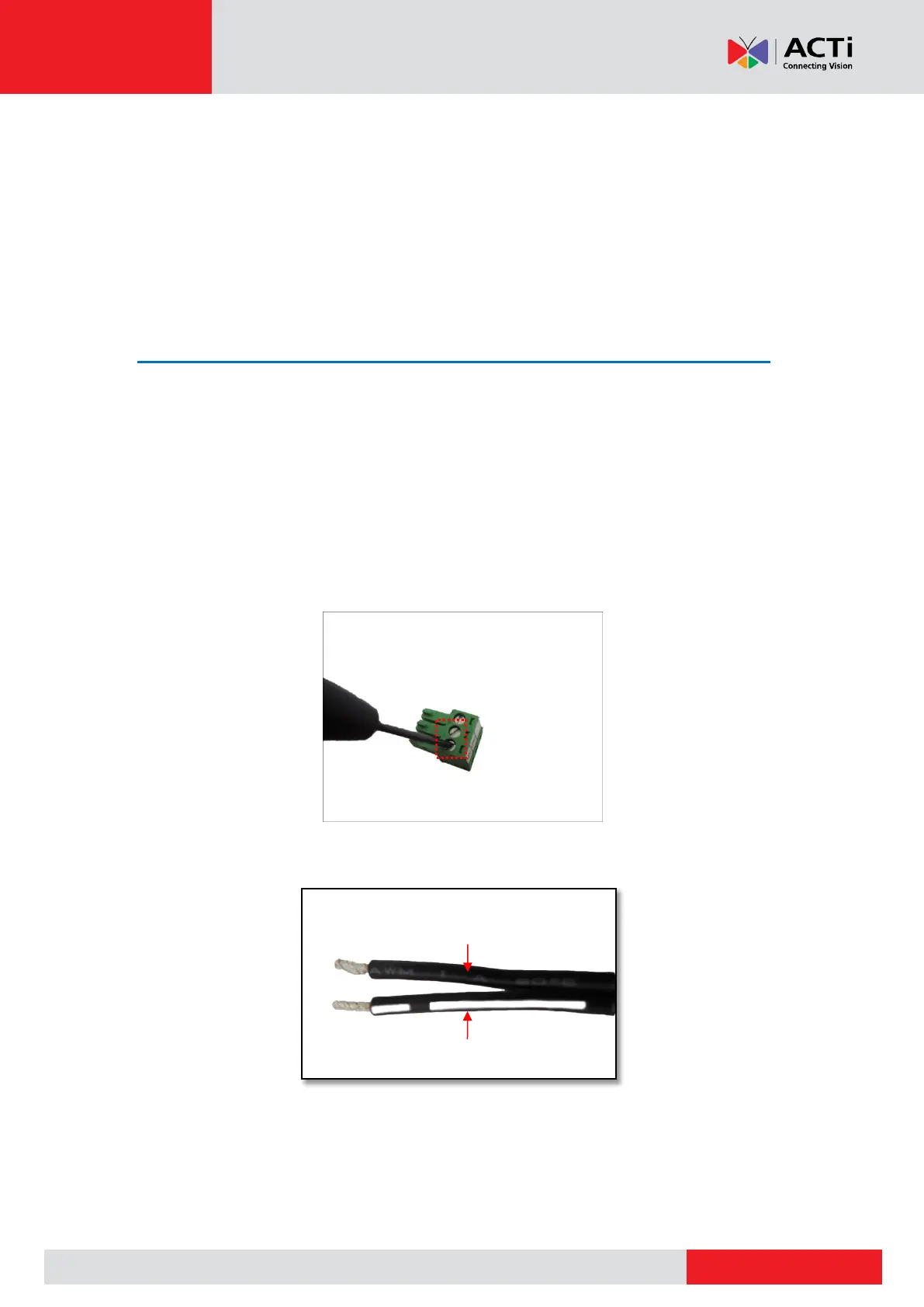

Connecting a Power Adapter (Optional)
In case of using a non-PoE switch or your PoE switch has limited power supply, you can
purchase a power adapter and directly connect the camera to a power outlet. The power
adapter must be connected to the supplied terminal block before use. Check the camera
package for the appropriate terminal block. The pictures below are for reference only, actual
items may vary depending on purchased model.
To do this, follow the procedures below:
1. Loosen the screws of the 12V and GND pins of the power terminal block.
2. Take note that a standard power adapter cable has two (2) different wires:
White stripe: Connects to 12V Pin
