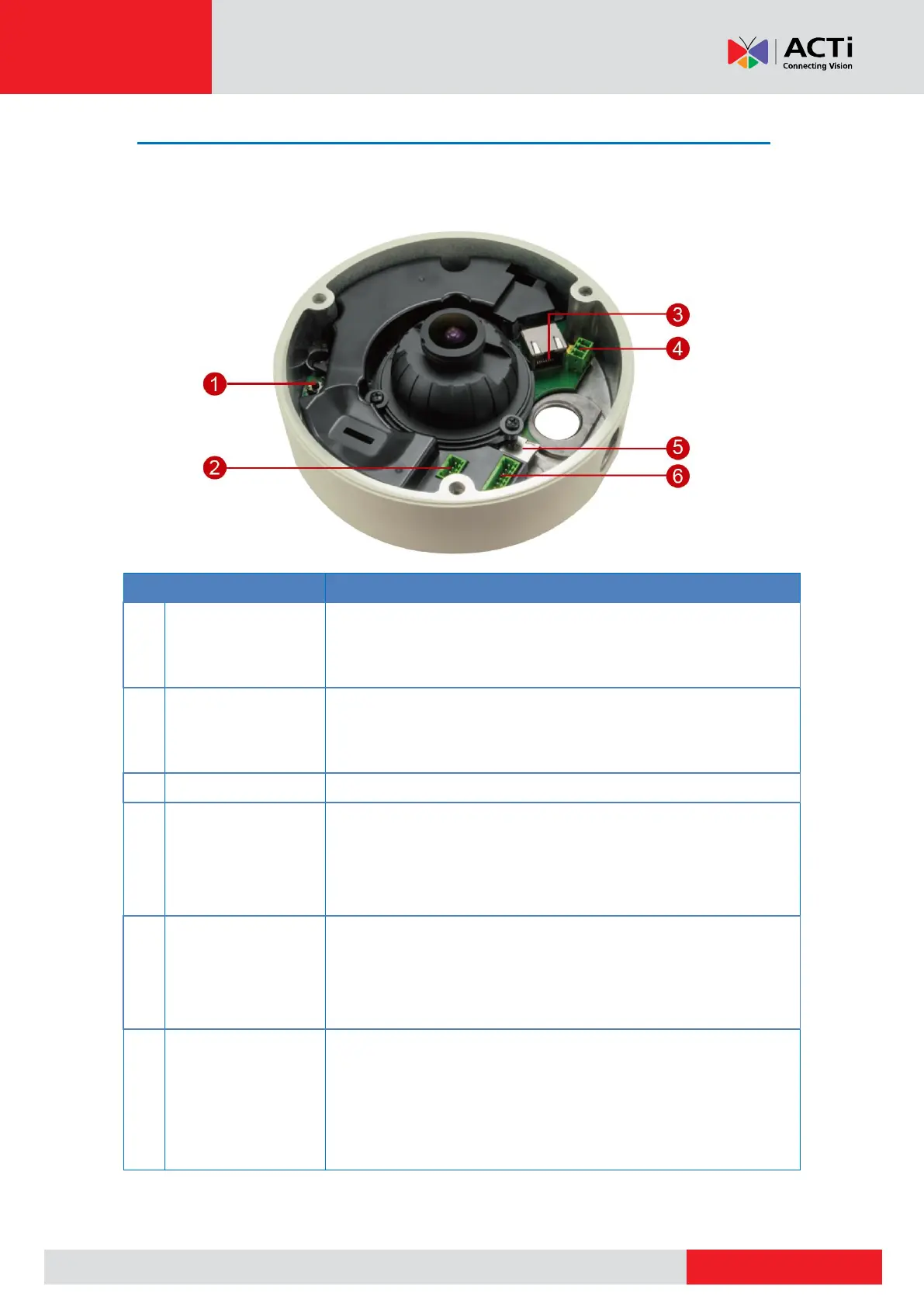

Physical Description
I71, I72
Item
Description
1
Reset Button
Restores the factory default settings of the camera. To reset the
camera, while the power is on, press and hold the Reset Button for
at least 5 seconds or until the Power LED lights up.
2
Audio Input / Output
Connects to audio input and output devices, such as microphones
and speakers. See Connecting Audio In / Out Devices
(Optional) on page 28.
3
Ethernet Port
Connects to a network using an Ethernet cable.
4
DC 12V Power Input
In case the camera is connected to a non-PoE (Power over
Ethernet) switch, use this connector to connect the camera to an
external power adapter. See Connecting a Power Adapter
(Optional) on page 26 for information.
5
Memory Card Slot
Insert a memory card (not included) into the slot for local recording
purposes. See How to Install / Remove the Memory Card on
page 33.
NOTE: Supports only microSDHC and microSDXC cards.
6
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output (DO)
devices are used in applications like motion detection, event
triggering, alarm notifications, etc. See Connecting DI/DO
Devices (Optional) on page 28 for information.
