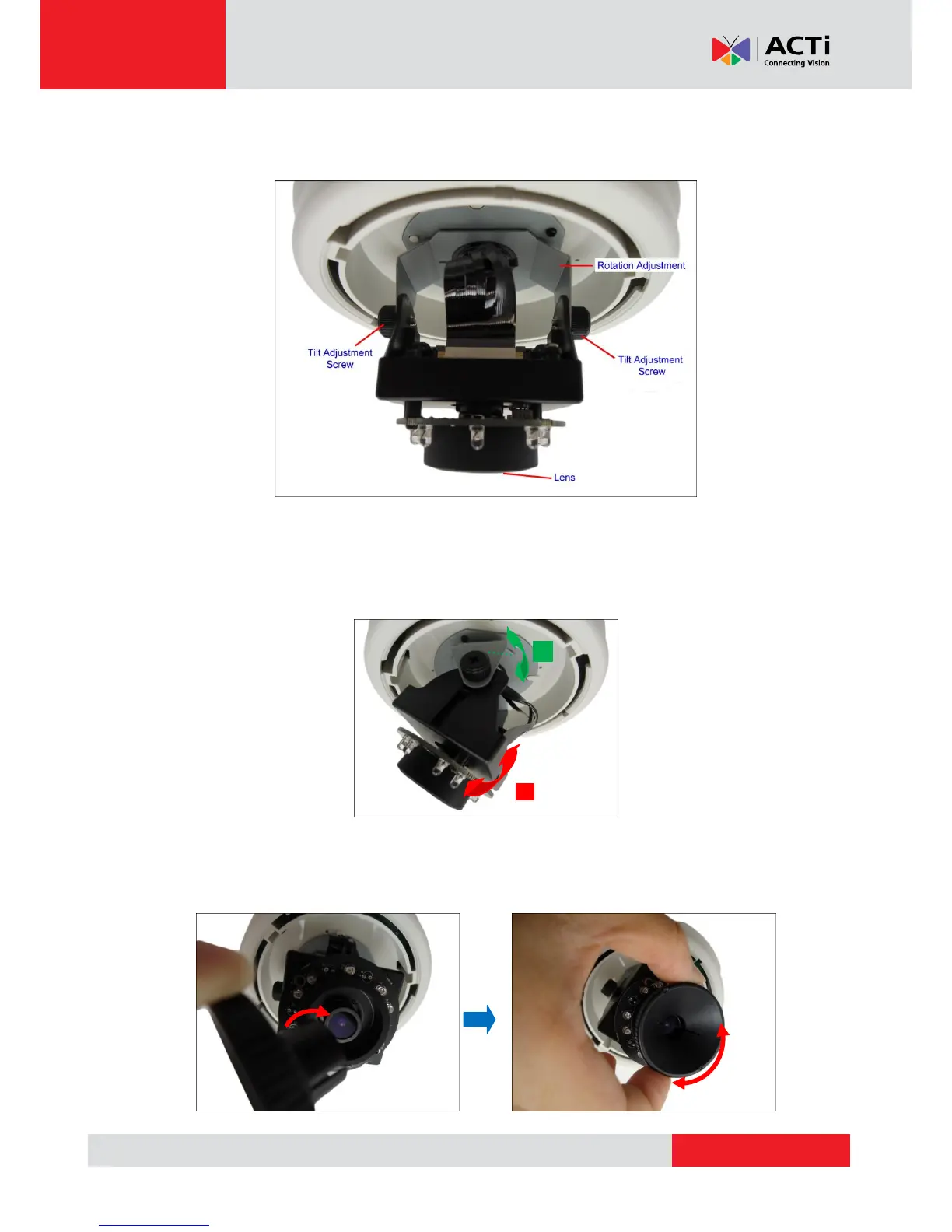

Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the
tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus.
NOTE: Focus adjustment is not available for E59 because the camera already comes with
fixed focus and fixed viewing angle.
1
2
