Actineon Splunk SPLKEH201GL User Manual

1a. Assemble in the 0u orientation
Assembling the bracket and mounting the Splunk Edge Hub so that the screen faces outward is
called a 0u rack mount, because it uses 0 unit space on your rack.
See the following images to assemble the bracket and attach the Splunk Edge Hub to the
bracket in the 0u orientation.

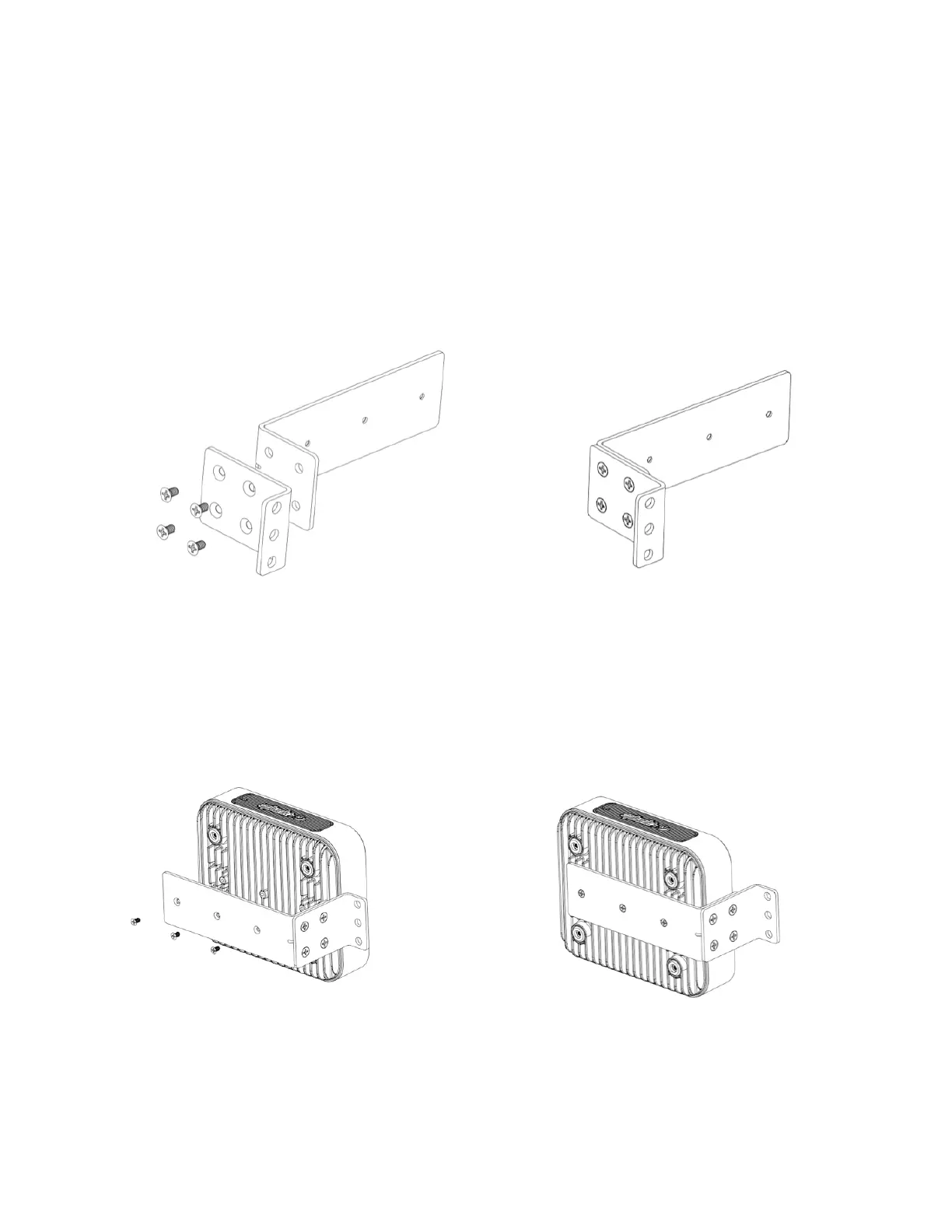

Align the 4 holes in a square position and use the screws to attach the bracket pieces together
according to the following image:
Align the three holes with the corresponding ones on the Splunk Edge Hub and use the screws
to attach the device to the bracket:
11
