ActronAir ESP Digital SRD173C - Page 32

Installation and Commissioning Guide - Split Ducted ESP Digital Units
Doc. No.0525-077 Ver. 2 200129
Installation and Commissioning Guide
Split Ducted ESP Digital
32
Copyright © 2007 ActronAir. All rights reserved. 0500-050
Ver. 02
For further info see www.actronair.com.au
R-410A ESP QUICK COMMISSIONING GUIDE
Gauges During Modulation
Typical Rise and Fall of Gauges during Modulation

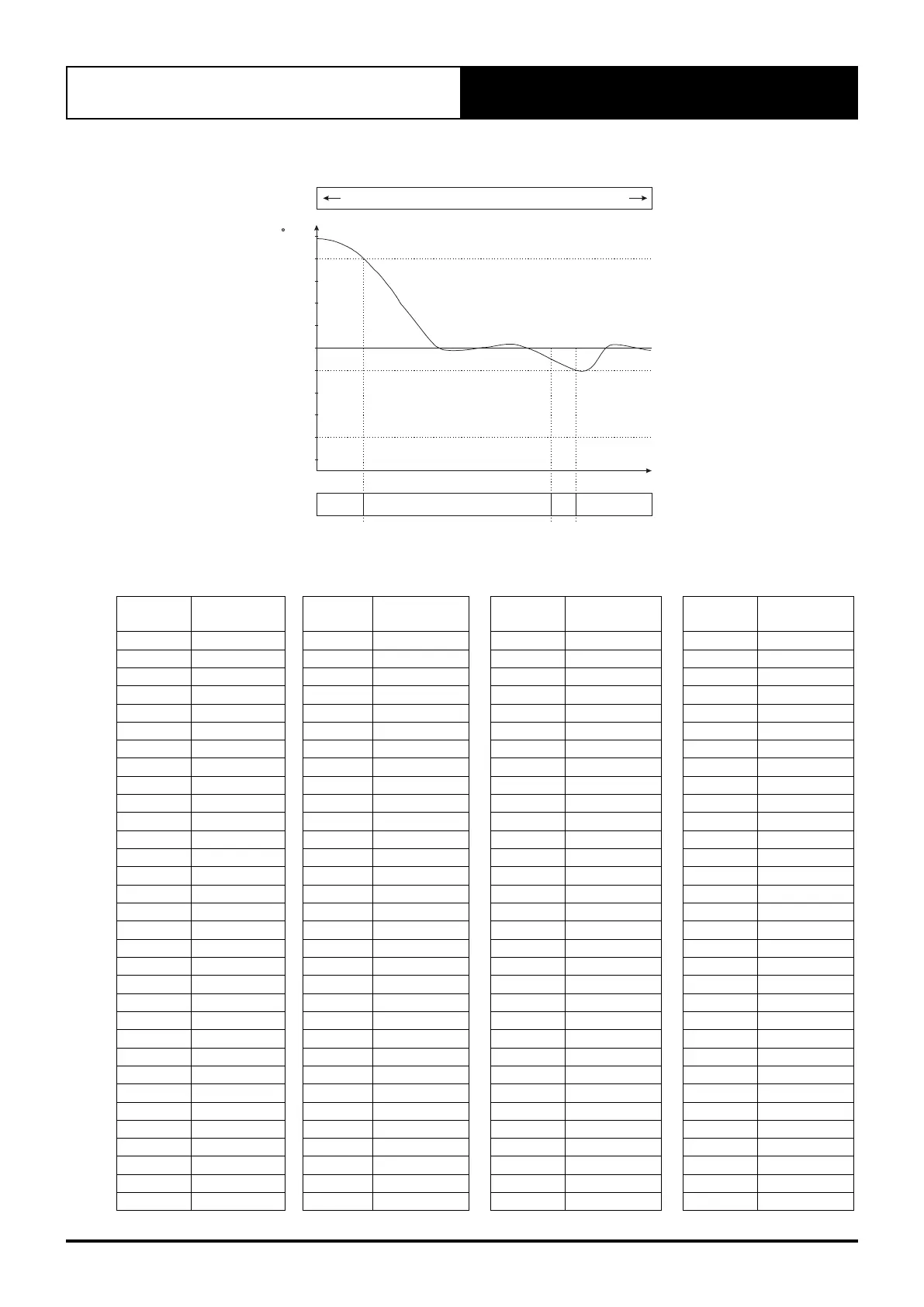

Auto Heat Cool Mode Operation Time Chart
Showing Cooling to Heating change over.
SET TEMP
TIME
(SET TEMP - 4)
(SET TEMP + 4)
ROOM TEMP
( C)
COMPRESSOR
AMBIENT
TEMP.
WARMER COOLER
Cooling
(MODULATING 10 - 100%)
Cooling
(100%)
OFF
Heating
(MODULATING)
(SET TEMP - 1)
Copyright © 2008 ActronAir™. All rights reserved. Page 16
R410A Pressure / Temperature Chart
Temp
o
C
Pressure
KPa
Temp
o
C
Pressure
KPa
Temp
o
C
Pressure
KPa
Temp
o
C
Pressure
KPa
-60 -34.4 -28 194.9 4 805.9 36 2090.7
-59 -30.7 -27 206.9 5 834.1 37 2145.5
-58 -26.8 -26 219.2 6 862.9 38 2201.3
-57 -22.8 -25 231.9 7 892.6 39 2258.2
-56 -18.6 -24 245.1 8 922.8 40 2316.1
-55 -14.2 -23 258.7 9 953.8 41 2375.1
-54 -9.6 -22 272.6 10 985.4 42 2435.1
-53 -4.8 -21 286.9 11 1017.8 43 2496.2
-52 0.8 -20 301.7 12 1050.9 44 2558.5
-51 5.3 -19 316.9 13 1084.7 45 2621.8
-50 10.7 -18 332.6 14 1119.2 46 2686.2
-49 16.3 -17 348.7 15 1154.6 47 2751.8
-48 22.2 -16 365.2 16 1190.7 48 2818.5
-47 28.2 -15 382.3 17 1227.5 49 2886.4
-46 34.0 -14 399.7 18 1265.2 50 2955.5
-45 40.9 -13 417.7 19 1303.6 51 3025.7
-44 47.8 -12 436.2 20 1342.9 52 3097.2
-43 54.8 -11 455.1 21 1382.9 53 3169.9
-42 62.1 -10 474.6 22 1423.9 54 3243.7
-41 69.6 -9 494.6 23 1465.7 55 3318.9
-40 77.4 -8 515.1 24 1508.3 56 3395.2
-39 85.5 -7 536.2 25 1551.8 57 3472.9
-38 93.9 -6 557.8 26 1596.2 58 3551.8
-37 102.5 -5 579.9 27 1641.4 59 3631.9
-36 111.5 -4 602.6 28 1687.6 60 3713.5
-35 120.8 -3 625.9 29 1734.6 61 3796.3
-34 130.4 -2 649.8 30 1782.6 62 3880.5
-33 140.3 -1 674.3 31 1831.6 63 3965.9
-32 150.5 0 699.4 32 1881.5 64 4052.8
-31 161.1 1 724.9 33 1932.3 65 4140.9
-30 171.9 2 751.3 34 1984.1 66 4230.6
-29 183.3 3 778.3 35 2036.9 67 4321.5
R-410A Pressure / Temperature Chart
