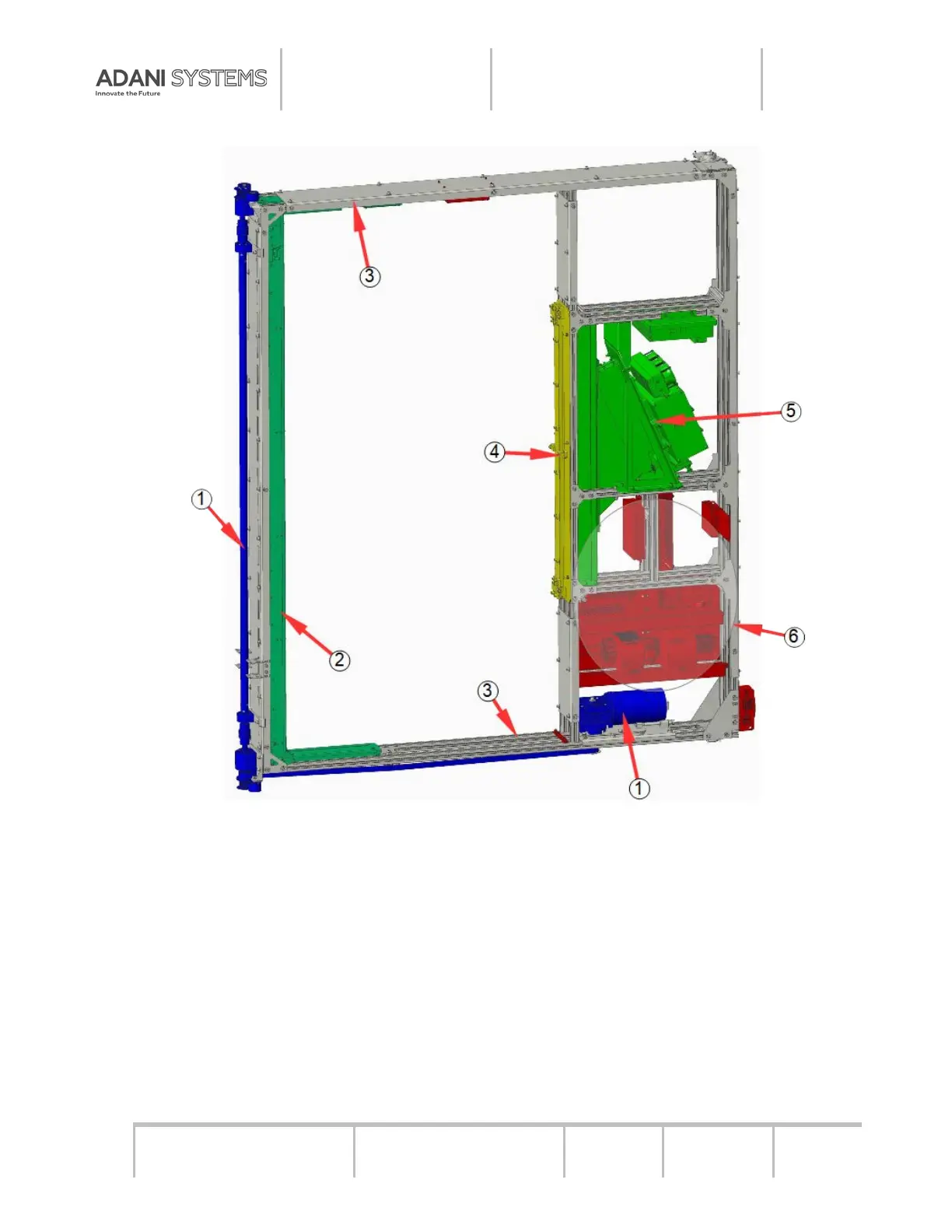

1 – Rotary mechanism; 2 – X-ray Detector; 3 – Rotary frame; 4 – Collimator output slit;
5 – X-ray generator with Beam-limiting unit; 6 – Electrics
Figure 3.5
3.4.1 Rotary frame
The rotary frame (see Figure 3.6) is a rigid structure made of metal profile. The rotary
frame is intended for securing the main components and systems of the System.
