About the Adaptec RAID 5405Z
The Adaptec RAID 5405Z is a SAS RAID controller with these features:
Form Factor Low-profile MD2
Bus compatibility PCIe
PCIe bus width x8
PCIe bus speed 2.5 Gb/s
Phys (Unified Serial Ports) 4
Standard cache 512 MB DDR2
Connectors, internal 1 mini-SAS x4 (SFF-8087)
Maximum number of disk drives 4 direct-attached (or up to 256 with expanders)
MaxIQ SSD support 8 Adaptec MaxIQ-branded/Intel X25-E SSDs (2TB max)
Enclosure Support I2C and SGPIO
Onboard speaker Yes
Zero Maintenance Cache
Protection Module
Adaptec ZMM-100DB daughterboard (pre-installed),
Adaptec ZMM-100CC super cap card (user installed—see
page 45)

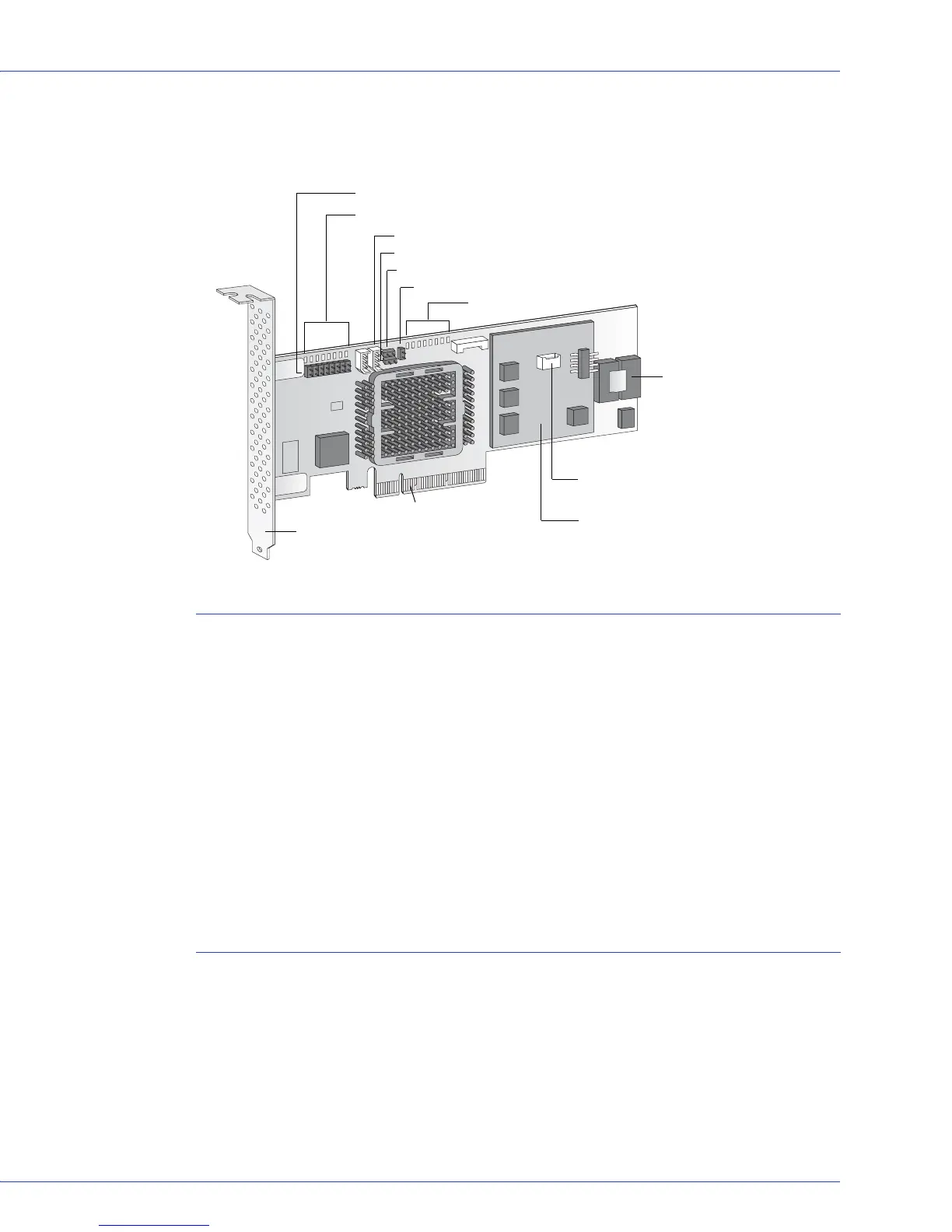

Mounting bracket
PCIe x8 connector
Internal mini-SAS
connector CN0
Mode 0 Flash connector
Drive Activity LED connectors for CN0
Ext. Alarm connector
I2C connector for CN0
Diagnostic LEDs
Drive Activity LEDs for CN0
Aggregate Activity
ZMM-100CC Cap
Card connector
ZMM-100DB
Daughterboard
To Next Page
