About the Adaptec RAID 5805Z/5805ZQ
The Adaptec RAID 5805Z/5805ZQ is a SAS RAID controller with these features:
Form Factor Low-profile MD2
Bus compatibility PCIe
PCIe bus width x8
PCIe bus speed 2.5 Gb/s
Phys (Unified Serial Ports) 8
Standard cache 512 MB DDR2
Connectors, internal 2 mini-SAS x4 (SFF-8087)
Maximum number of disk drives 8 direct-attached (or up to 256 with expanders)
MaxIQ SSD support 5805Z: 8 Adaptec MaxIQ-branded/Intel X25-E SSDs (2TB max)
5805ZQ: 8 MaxIQ-compatible SSDs using any Solid State Drive
on compatibility list (2TB max); see www.adaptec.com/
compatibility
Enclosure Support I2C and SGPIO
Onboard speaker Yes
Zero Maintenance Cache
Protection Module
Adaptec ZMM-100DB daughterboard (pre-installed),
Adaptec ZMM-100CC super cap card (user installed—see page
45)

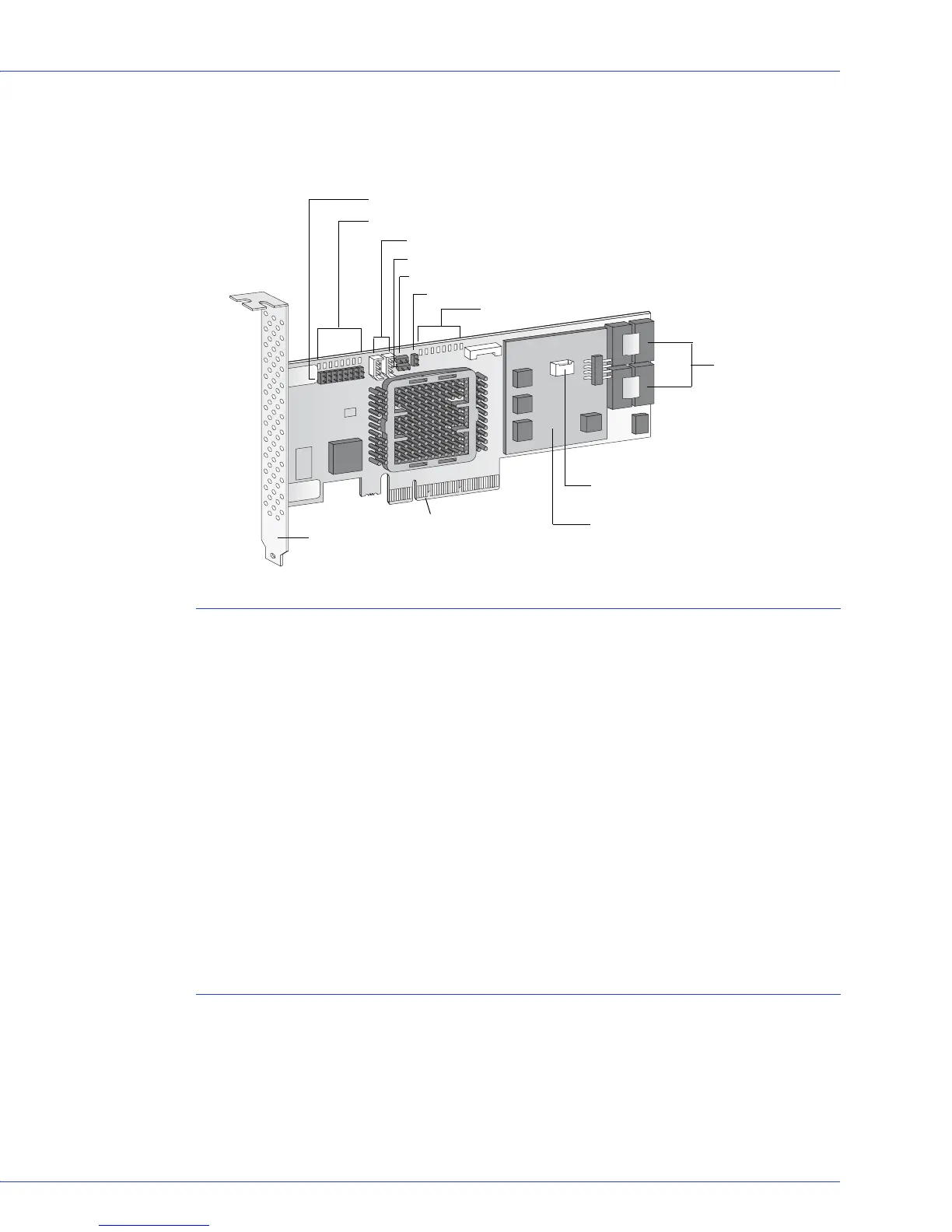

2 internal mini-SAS
connectors
CN1
CN0
Mounting bracket
PCIe x8 connector
Mode 0 Flash connector
Drive Activity LED connectors for CN0/CN1
Ext. Alarm connector
Diagnostic LEDs
Drive Activity LEDs for CN0/CN1
Aggregate Activity
ZMM-100CC Cap
Card connector
I2C connectors for CN0/CN1
ZMM-100DB
Daughterboard
