ADB 2500 - Set Top Box; ADB 2500 Set Top Box

62
Set Top Box

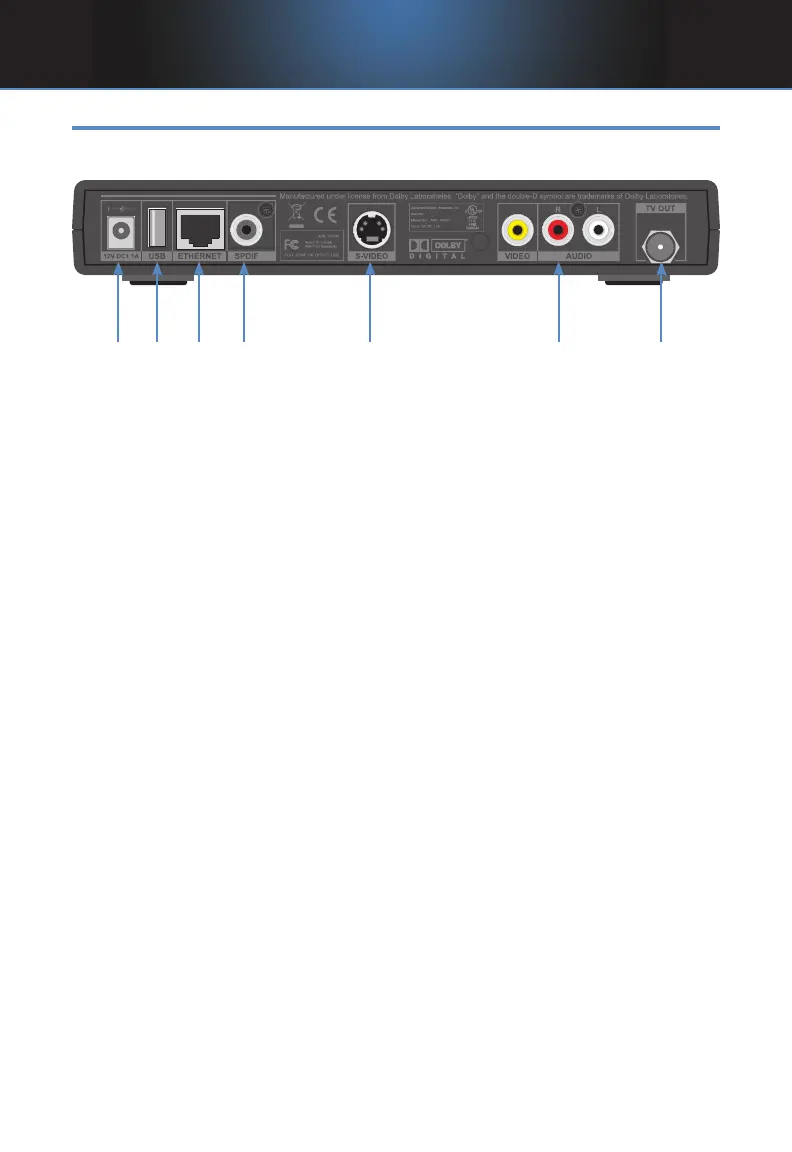

ADB 2500 Set Top Box
Power 12V DC 1.1A Provides power to the set top box.
USB (Universal Serial Bus) Connects the set top box to technician’s
equipment and other devices.
Ethernet Connects the set top box to the video service using a CAT5
Ethernet cable.
SPDIF Connects the set top box to a home theater system to provide
surround sound audio - provides audio only.
S-Video Connects the set top box to your TV to provide high-quality
video - provides video only.
Video/Stereo Audio R/L (Video/Audio Left/Audio Right) Connects the
set top box to your TV or VCR to provide good quality video and stereo
audio.
TV Out Connects the set top box to your TV using a standard coax
cable - provides audio and video.
1.
2.
3.
4.
5.
6.
7.
1 2 3 4 5 6 7
