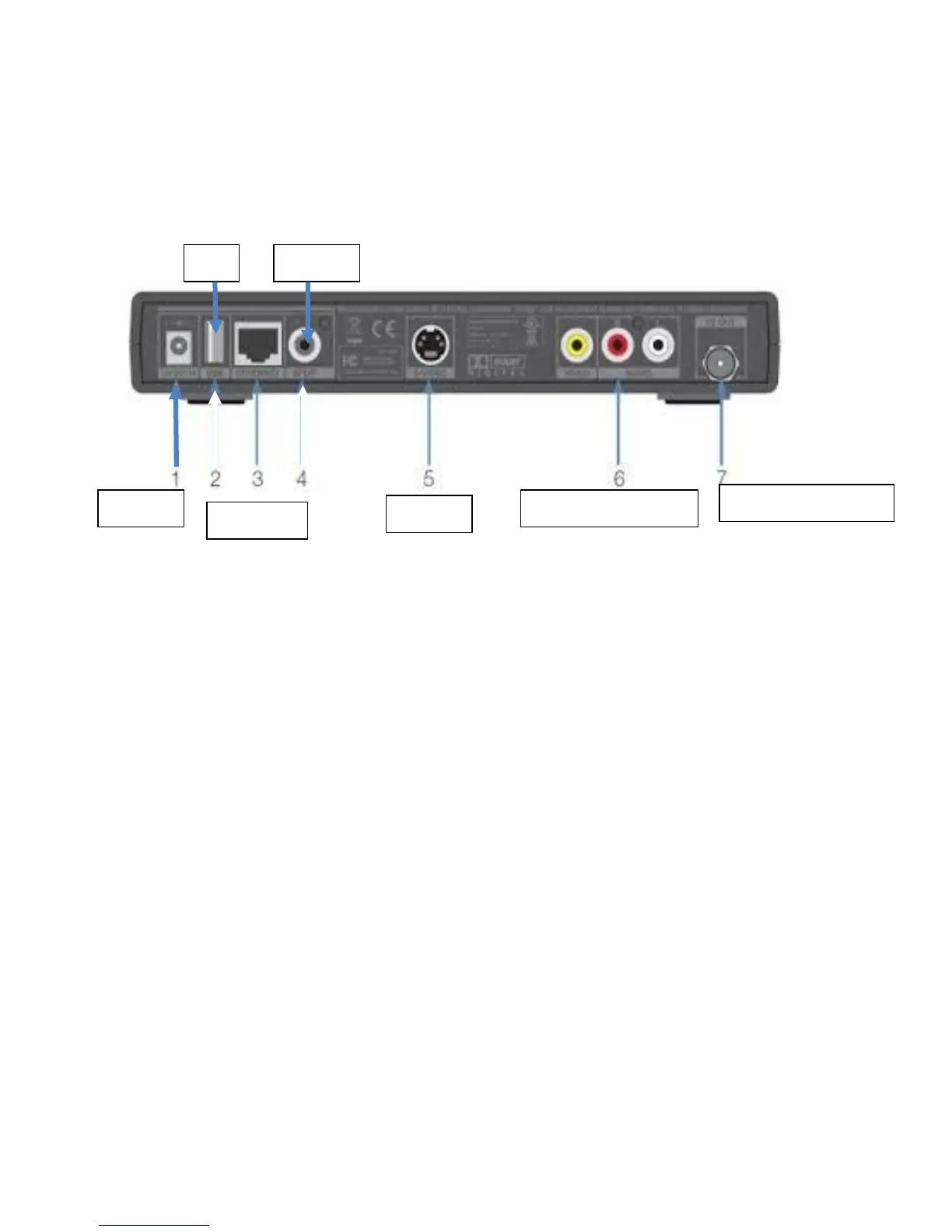

Rear Panel View
Below is an explanation for each of the connections listed above.
#1 - Power is the connector for the DC power adapter.
#2 - USB (Universal Serial Bus) is a USB 2.0 connector.
#3 - Ethernet is a RJ-45 port for IP video output.
#4 - Coaxial is for a BNC-to-RCA adapter (S/PDIF) audio output to a digital home theater receiver.
#5 - S-Video (Super Video or Separated Video) is for a high quality video output to a VCR or TV that
accepts S-Video. It carries video only; you must also connect to the TV or home theater receiver for
audio.
#6 Video Out (Yellow) is for RCA video outputs to a TV, VCR, or other device.
#6 Audio Out (Red & White) are for left and right RCA stereo audio outputs.
#7 To TV (Video Out) is for coaxial output to connect the TV receiver to the TV or VCR.
