ADB 5721WNX

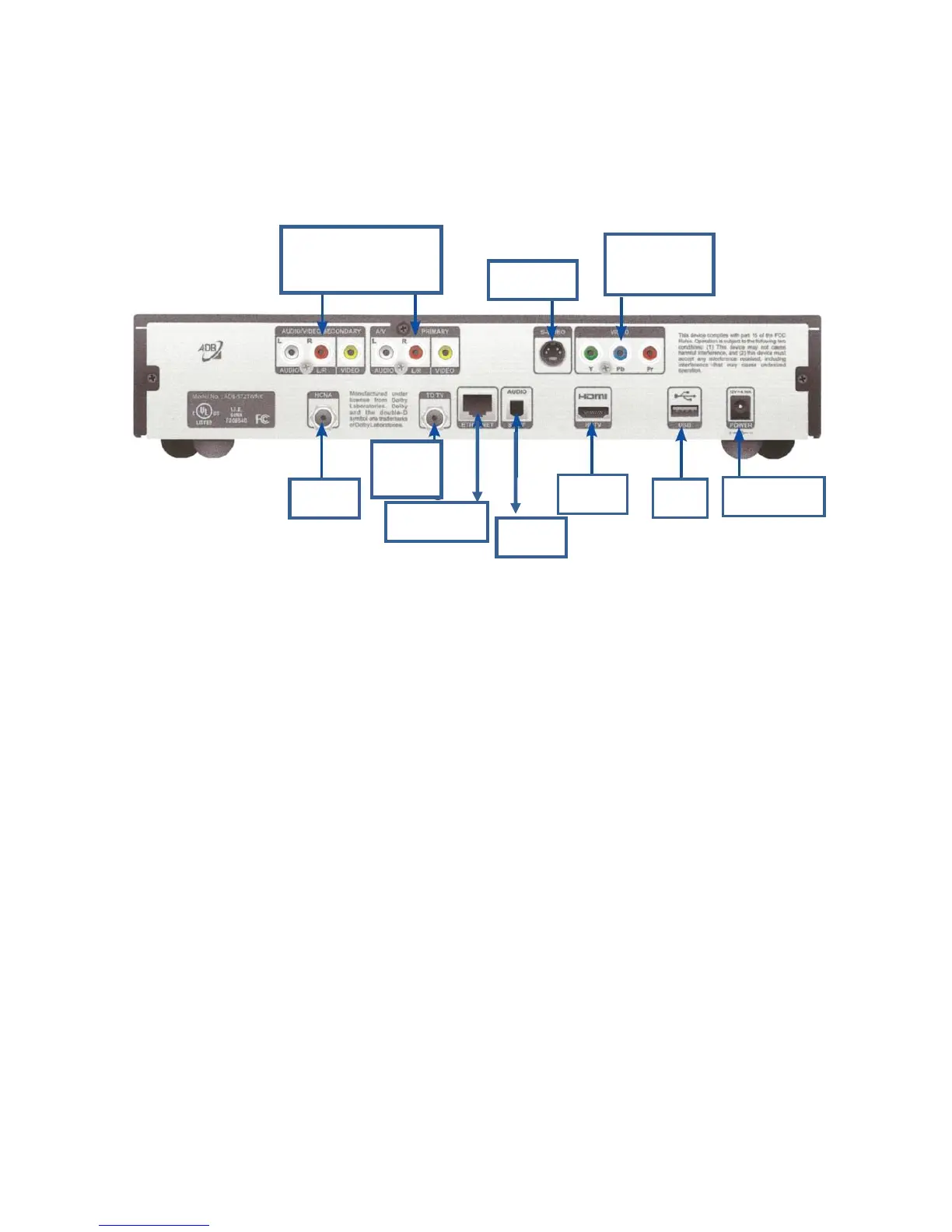

Rear Panel View
HDMI (High-Definition Multimedia Interface) connects to a high-definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI adapter.)
HCNA (HomePNA over Coax) is the technology, which allows to utilize existing coaxial cable as the
network’s physical wiring to connect PCs and Ethernet enabled devices, such as STB, to a LAN, thereby
eliminating the need to install new wiring.
Ethernet is a RJ-45 port for IP video output.
Pr, Pb, & Y are for RCA component video outputs to an HDTV.
S-Video (Super Video or Separated Video) is for a high quality video output to a VCR or TV that accepts
S-Video. It carries video only; you must also connect to the TV or home theater receiver for audio.
Video Out is for RCA video outputs to a TV, VCR, or other device.
Audio Out are for left and right RCA stereo audio outputs.
To TV (Video Out) is for coaxial output to connect the TV receiver to the TV or VCR.
USB (Universal Serial Bus) is a USB 2.0 connector.
Power is the connector for the DC power adapter.
