38

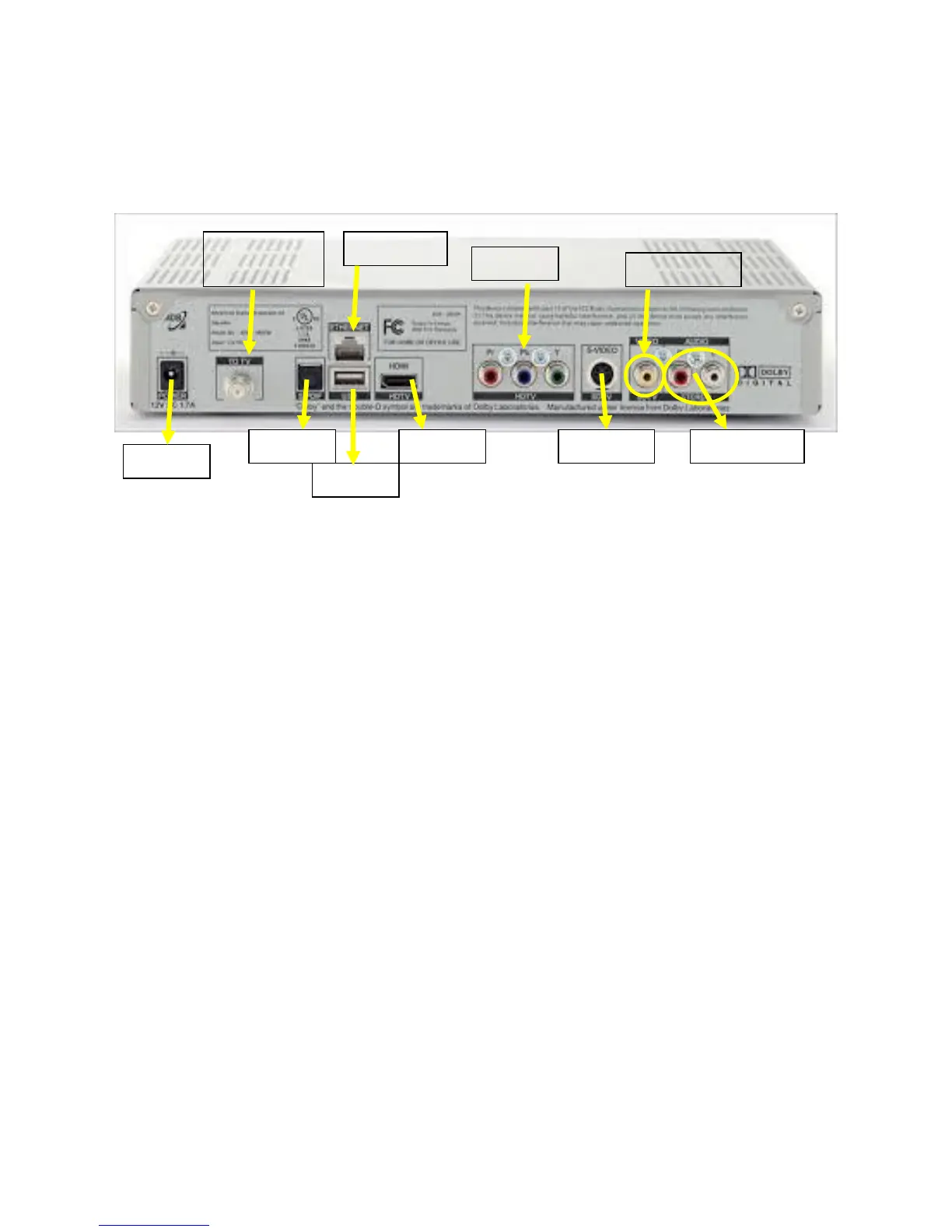

Rear Panel View
Below is an explanation for each of the connections listed above.
To Wall (Video In) is for coaxial input for digital signal.
HDMI (High-Definition Multimedia Interface) connects to a high-definition TV or home theater receiver
with an HDMI input (for a DVI input, use an HDMI-to-DVI adapter.)
Ethernet is a RJ-45 port for IP video output.
Pr, Pb, & Y are for RCA component video outputs to an HDTV.
S-Video (Super Video or Separated Video) is for a high quality video output to a VCR or TV that accepts
S-Video. It carries video only; you must also connect to the TV or home theater receiver for audio.
Optical is for a Toslink (S/PDIF) audio output to a digital home theater receiver.
Video Out is for RCA video outputs to a TV, VCR, or other device.
Audio Out are for left and right RCA stereo audio outputs.
To TV (Video Out) is for coaxial output to connect the TV receiver to the TV or VCR.
USB (Universal Serial Bus) is a USB 2.0 connector.
Power is the connector for the DC power adapter.
