2.2.7.2 Rear View with Connections

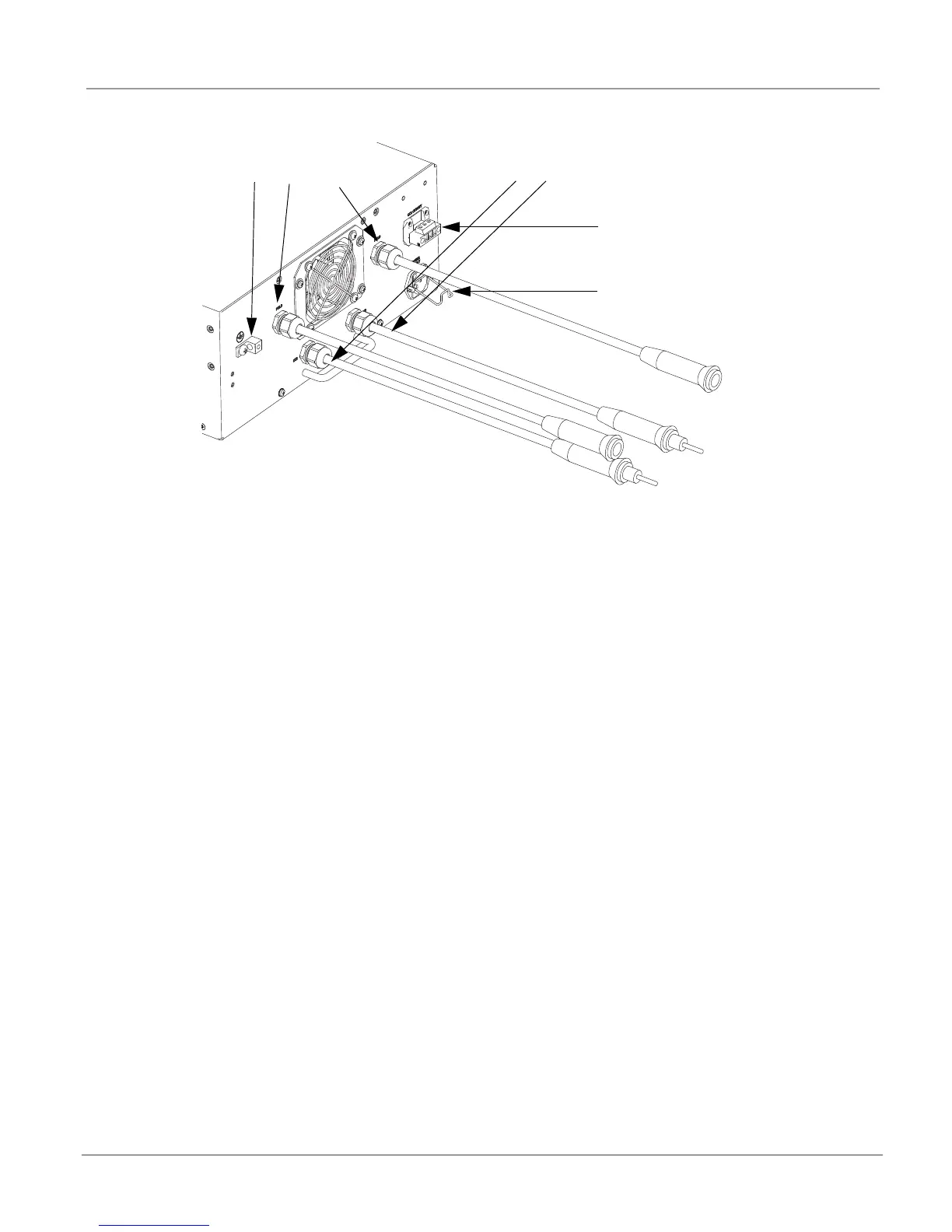

Figure 5: Rear view of the AGLAS Master

1. Cable with connection socket to series circuit

2. Cable with connection socket to series circuit

3. Cable with connection plug to Constant current regulator or Filter

4. Cable with connection plug to Constant current regulator or Filter

5. Screw for earth ground connection

6. Over-voltage Protection Contactor

7. Input Power (115-230 Vac 50/60 Hz)
