AGLAS Master Control Device
Modes of Operation
© ADB SAFEGATE All Rights Reserved
22
96A0480 Rev. B
The "Master Heath" and "Circuit Health" indicators are green when the master and circuit are healthy. If there are warnings for
the master or circuit they will turn yellow. If there are master or circuit alarms they will turn red.

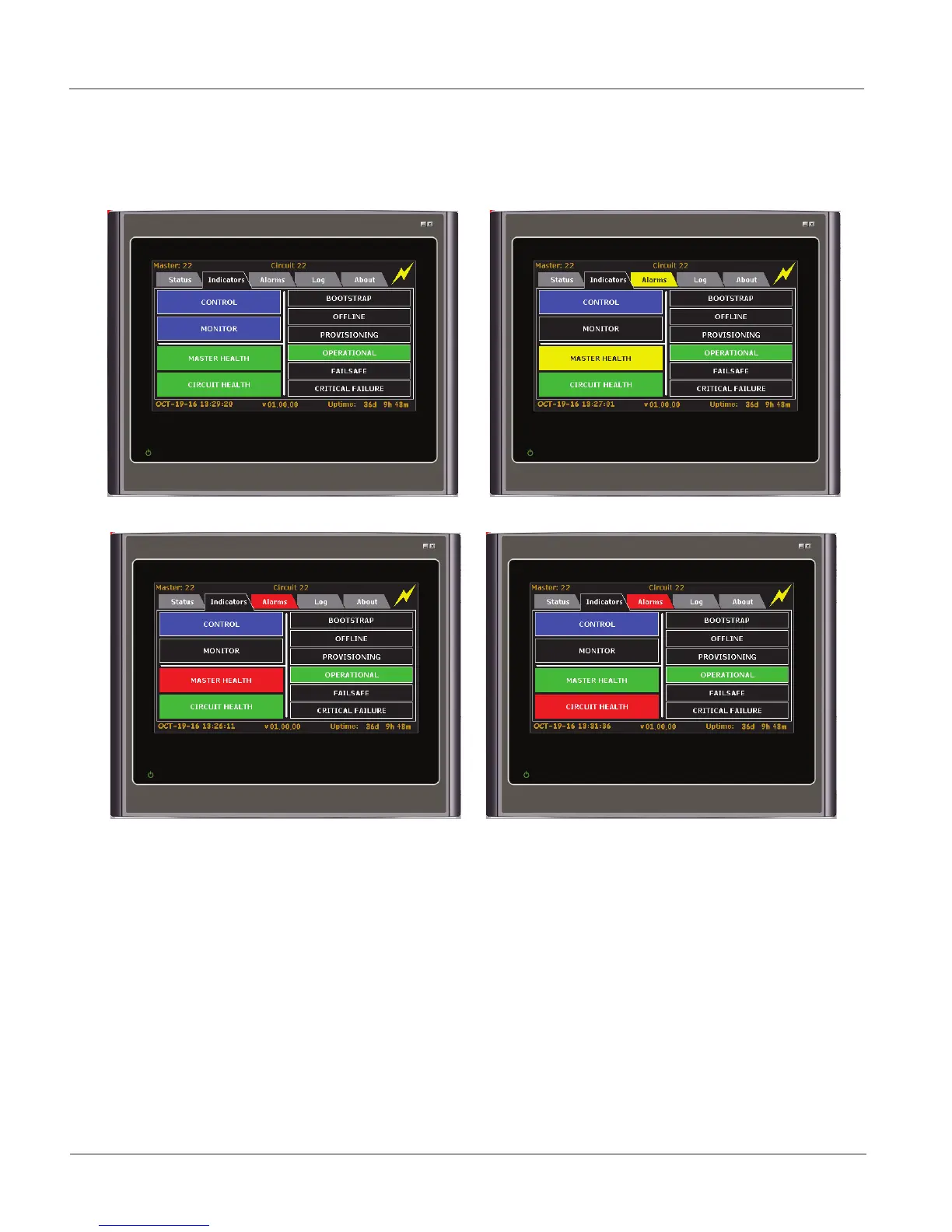

Figure 12: Indicators with Alarms and Warnings
Indicators_with_alarms Indicators_with_circuit_alarm
Indicators_with_monitor_control_clients Indicators_with_warnings
