Home Station ADSL ADB P.DG A4001N
© (2011) ADB Broadband S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
42 Advanced Setup Section

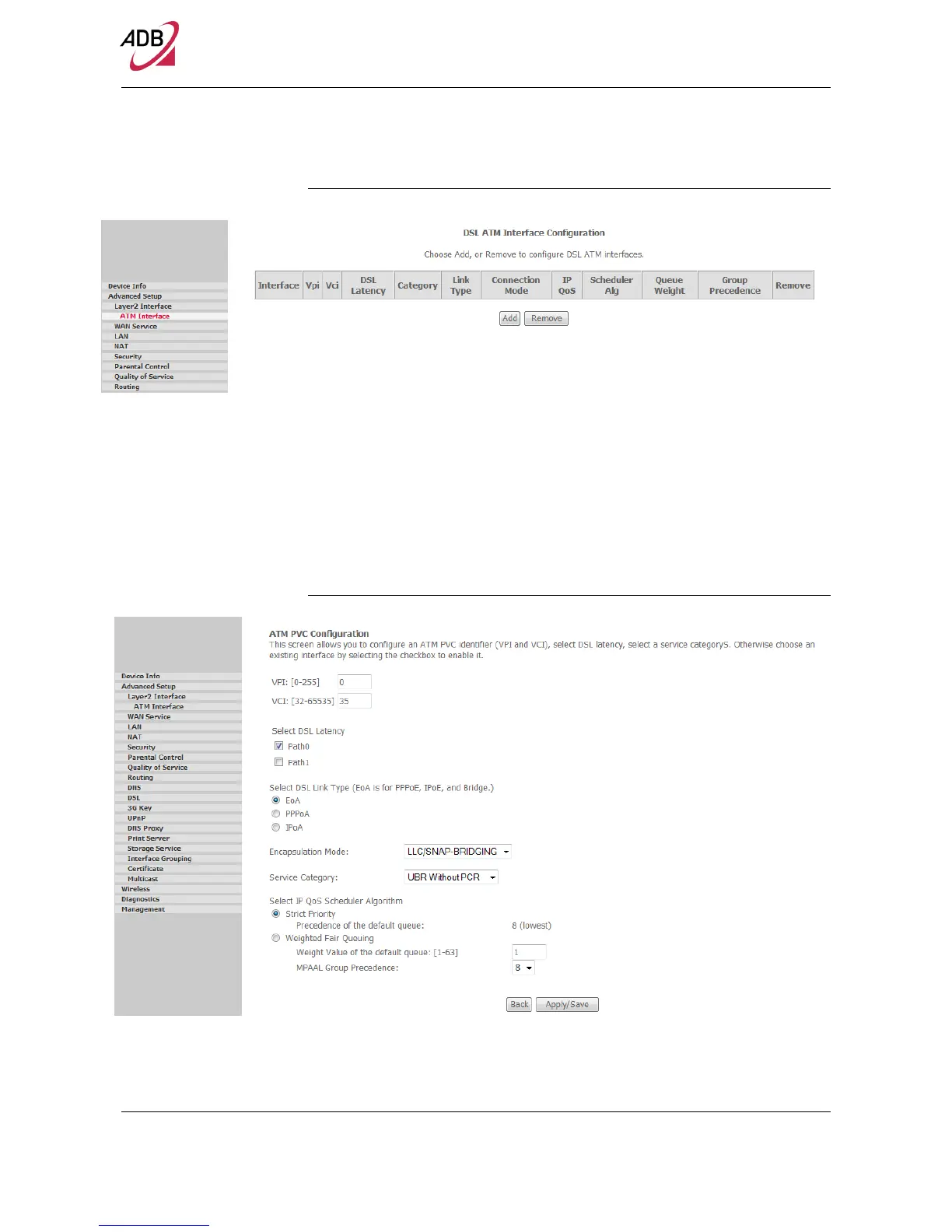

FIGURE 1. Layer 2 ATM panel
Click on the Add button if you want to add a new connection for the DSL ATM in-
terface. The DSL ATM Configuration screen is shown in Figure 2.
The ATM PVC Configuration screen allows you to configure an ATM PVC identifier
(VPI and VCI) and select a service category.
Check the Remove check-box and select the Remove button to delete a DSL ATM
configuration.
FIGURE 2. Adding Layer 2 ATM interface panel

ADB P.DG A4001N Specifications

General

Brand	ADB
Model	P.DG A4001N
Category	Network Router
Language	English
