Power supply connection
The Digital iPEPS provides flexibility in the way that it is powered in order to suit
your installation requirements. Each Digital iPEPS can be powered:
• ViabothUSB connections from the host computer, or
• Fromthesuppliedautosensingpoweradapter.
Power supply issues and options
If you intend to derive power from the host computer then both USB
connections must be made to the host computer. The Digital iPEPS will share its
requirements between the two ports and will automatically refuse to operate if
only one connection is made.
If you want to disable virtual media by omitting its USB cable, then you will need
to use the supplied power adapter. On the side panel of the Digital iPEPS, use
switch 1 to determine how power should be
derived:
SW1 OFF Derive Digital iPEPS power
from either the USB
connections or the supplied
power adapter.
ON Derive Digital iPEPS power
only from the supplied power
adapter.

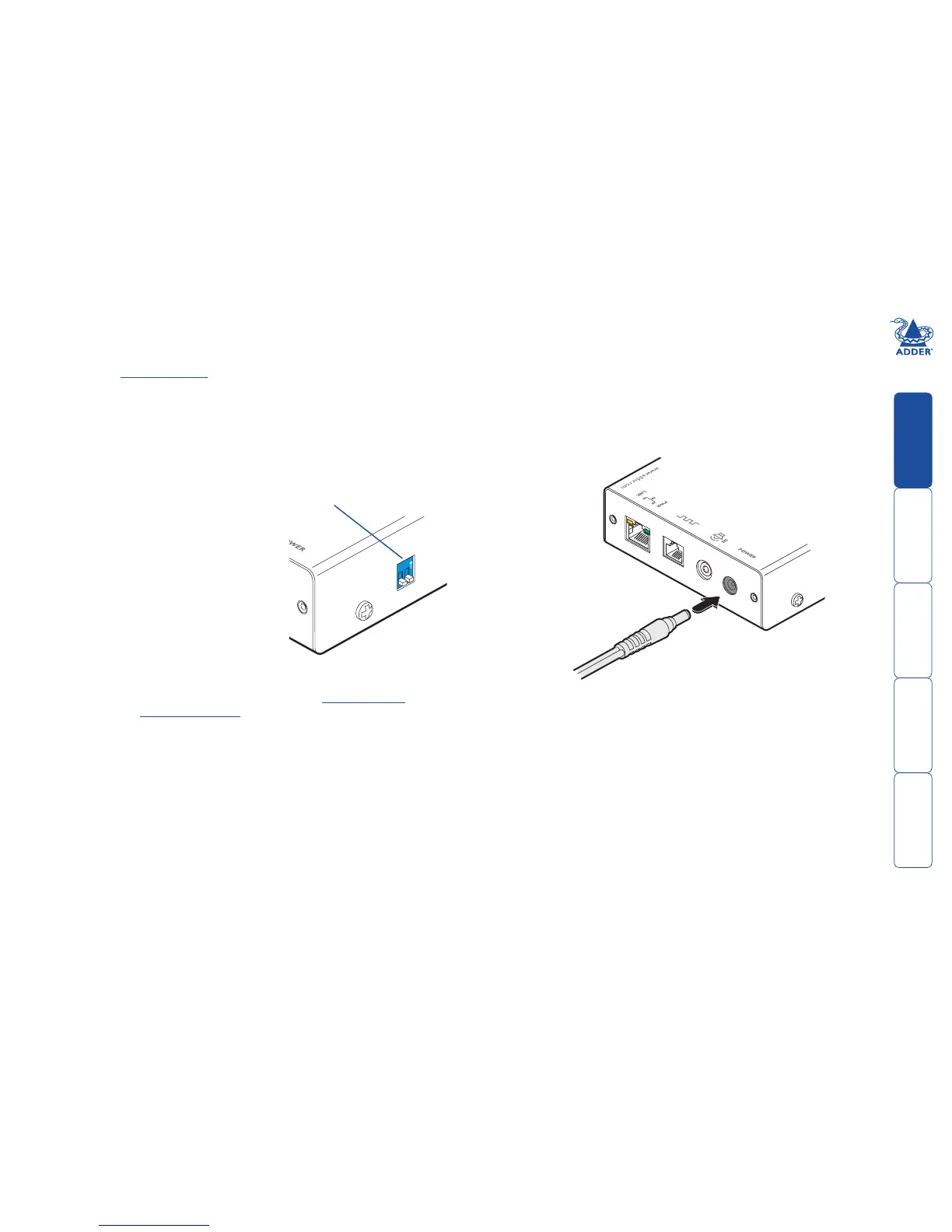

To connect the power adapter
1 Connect the low voltage output connector from the power supply adapter
to the power socket on the end panel of the Digital iPEPS.
Low voltage
output connector
from the supplied
power adapter
1
ON
2
2 Connect the IEC connector of the supplied country-specific power lead to
the socket of the power supply.
3 Connect the power lead to a nearby mains supply socket.
Note: SW2 is used to reset the Digital iPEPS back to its factory defaults and is
also used during firmware upgrades.
