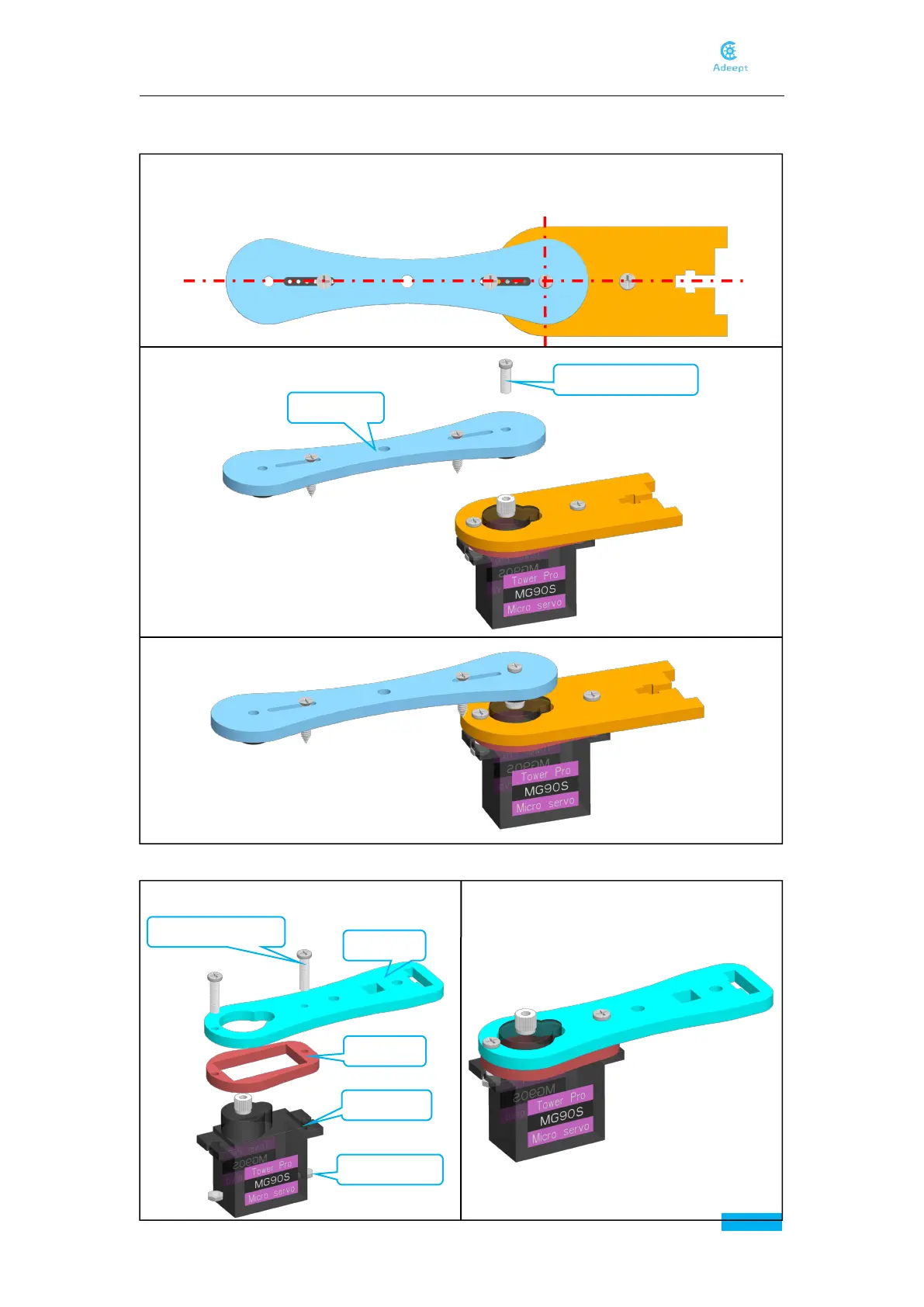

First install the rocker arm on the A18 into the servo. When installing, the mounting hole of
the rocker arm should be aligned with the round hole on the A18. Install it at the angle
shown below.
Assemble the following components
3. Then fix one end of A18 to the servo on A17.
4. Fix a debugged servo to A20.
M2.5*8 Screw x1
A18 x1
Effect diagram after assembling
Assemble the following components
M2*10 Screw x2
Effect diagram after assembling
A20 x1
A22 x1
Servo x1
M2 Nut x2
