22

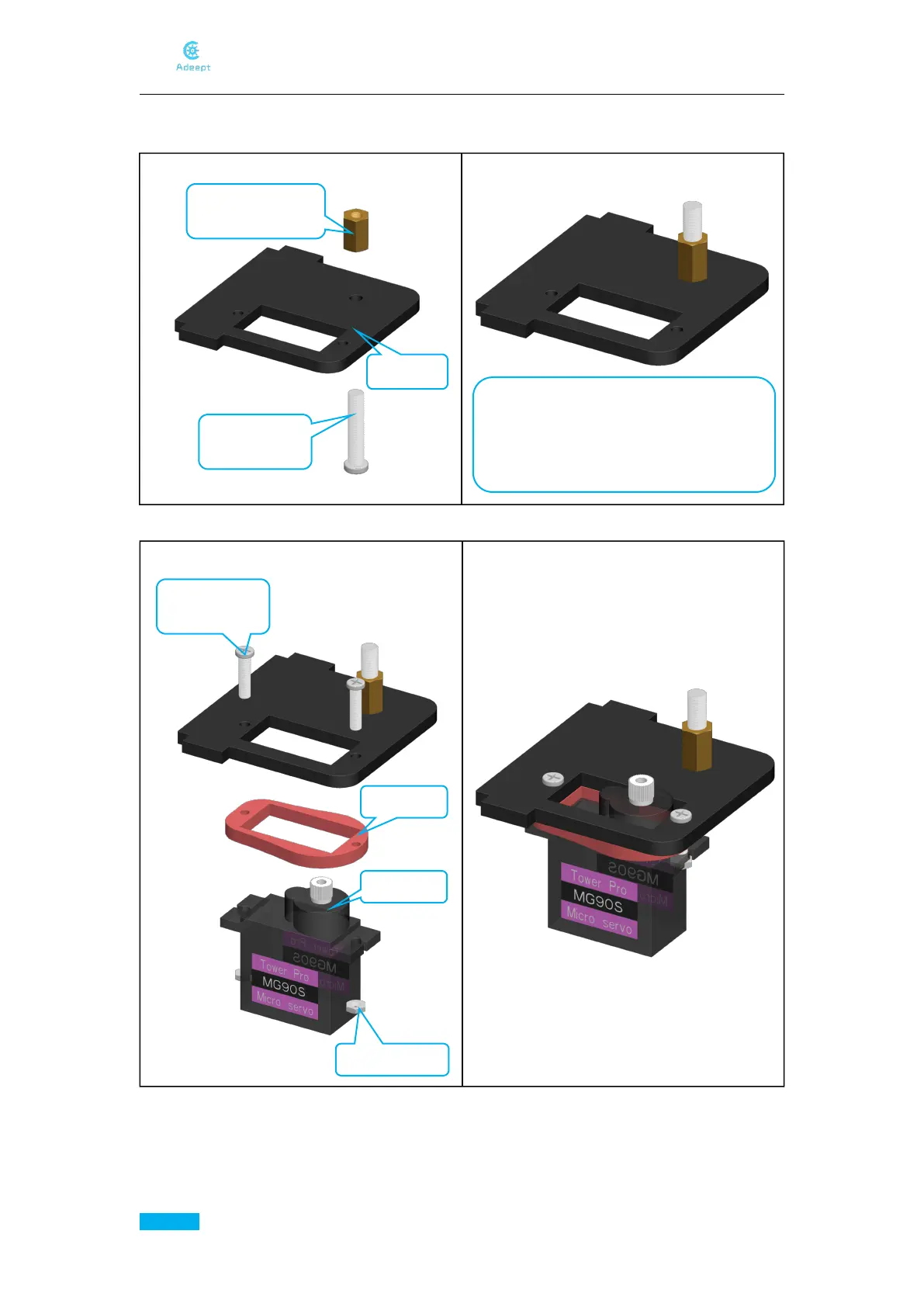

Effect diagram after assembling
Assemble the following components
Effect diagram after assembling
Assemble the following components
9. Fix one M3*8 Copper Standoff to A24.
10. Fix a debugged servo to A24.
M3*8 Copper
Standoff x1
A15 x1
Install it in strict accordance with the
position shown in the figure. Do not
mount the M3*8 Copper Standoff on the
other side of the A15.
M3*18 Screw
x1
M2*10 Screw
x2
A22 x1
Servo x1
M2 Nut x2
