ADEEPT RaspTank - Page 27

www.adeept.com
23

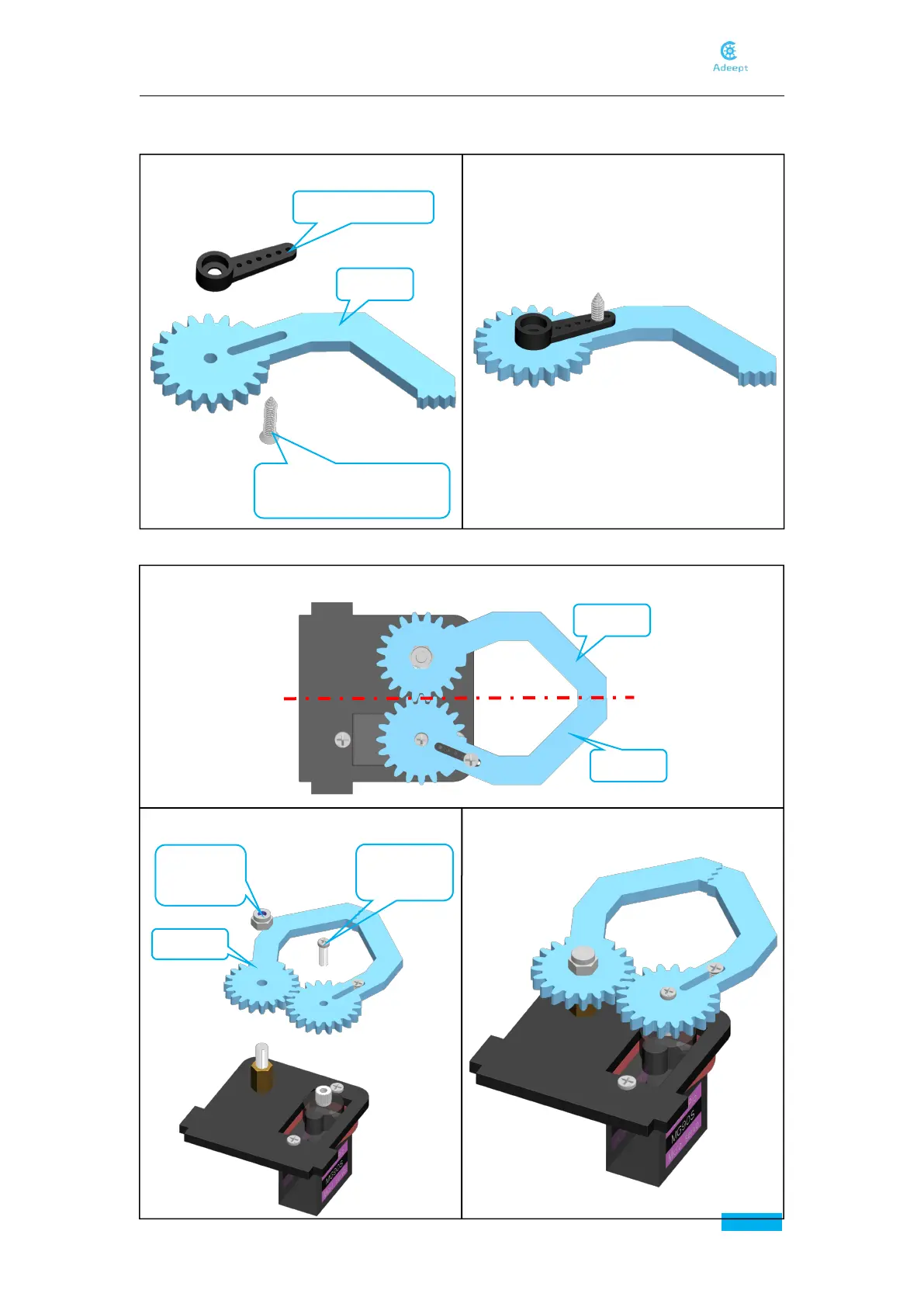

Effect diagram after assembling
Assemble the following components
Install A27 and A28 as shown below.
Effect diagram after assembling
Assemble the following components
11. Fix one rocker arm of the servo to A27.
12. Assemble A27 and A28.
Rocker arm x1
A27 x1
Self-tapping screw packaged
with servo x1
A28
A27
M3 Lock
Nut x1
M2.5*8
Screw x1
A28 x1
