7. Fix one M3*6 Copper Standoff on A04.
8. Fix one section of the 18650 Battery Holder Set to A04.

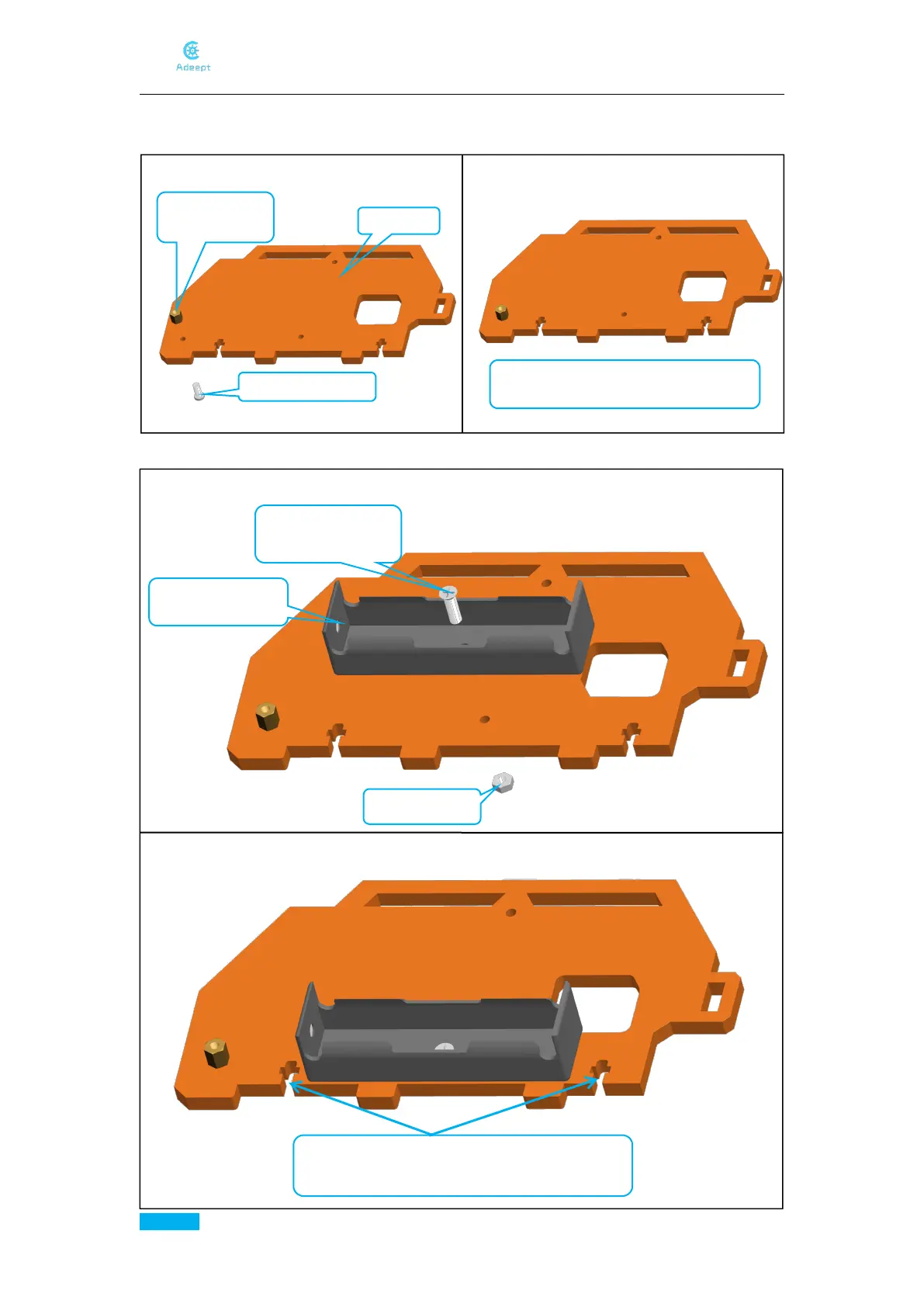

Assemble the following components
Effect diagram after assembling
M3*6 Copper
Standoff x1
A04 x1
Do not reverse the A04.
M3*8 Screw x1
Assemble the following components
M3*10 Countersunk
Head Screw
a 18650 Battery
Holder
M3 Nut x1
Effect diagram after assembling
The power cords at the ends of the battery
holder can pass through the gap here.
