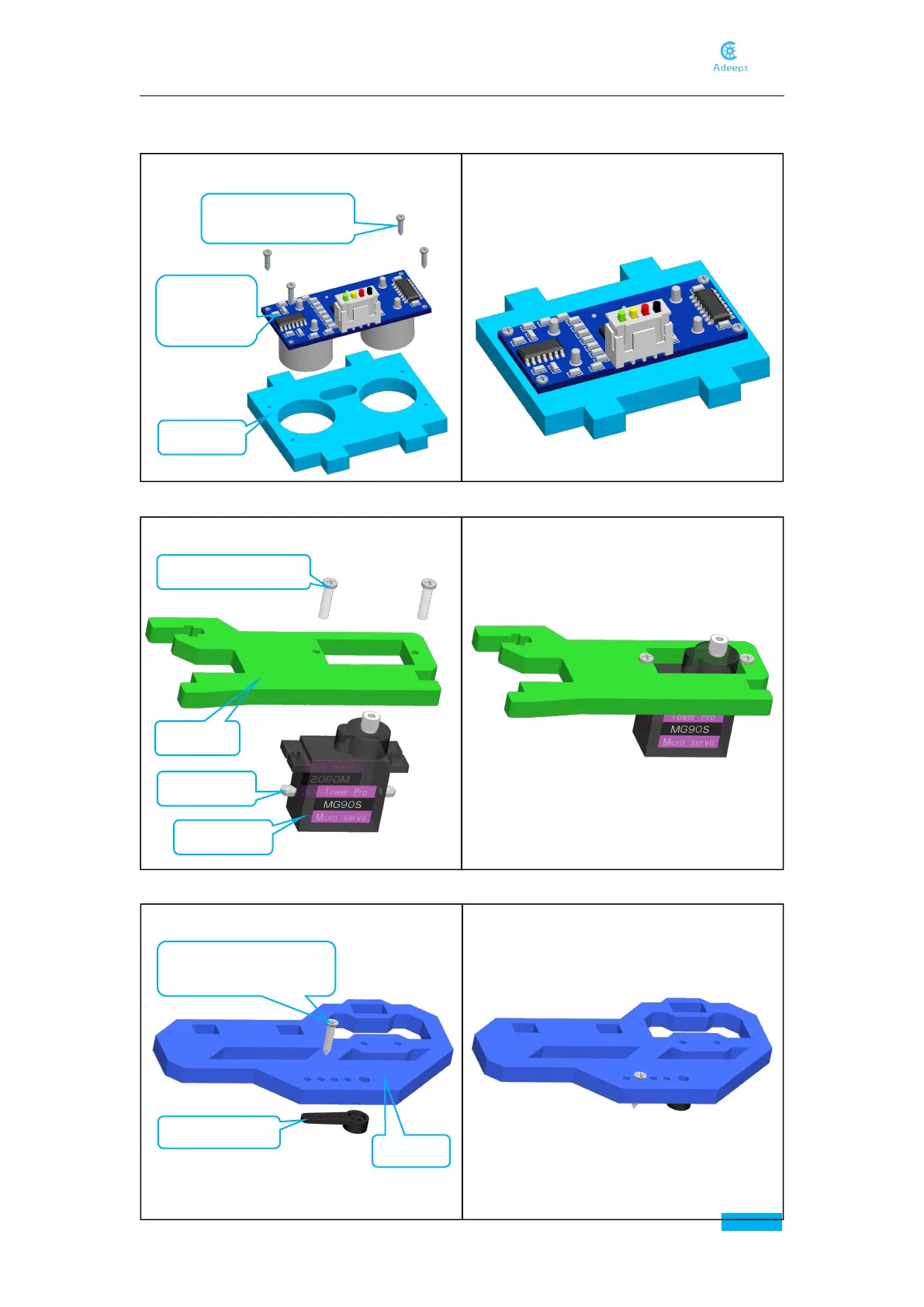

13. Fix Adeept Ultrasonic Module on A10.
14. Fix a debugged servo to A05.
15. Fix one rocker arm of the servo on A09.
Effect diagram after assembling (When
the screw is obstructed or cannot be
screwed in, turn over the plate and
screw in the other side.)
Assemble the following components
M2 Nut x2
Assemble the following components
M1.4*6 Self-tapping
Screw x4
Adeept
Ultrasonic
Module x1
A10 x1
Effect diagram after assembling
M2*10 Screw x2
A05 x1
Servo x1
Effect diagram after assembling
Assemble the following components
Self-tapping screw
packaged with servo x1
Rocker arm x1
A09 x1
