GENERAL INFORMATION

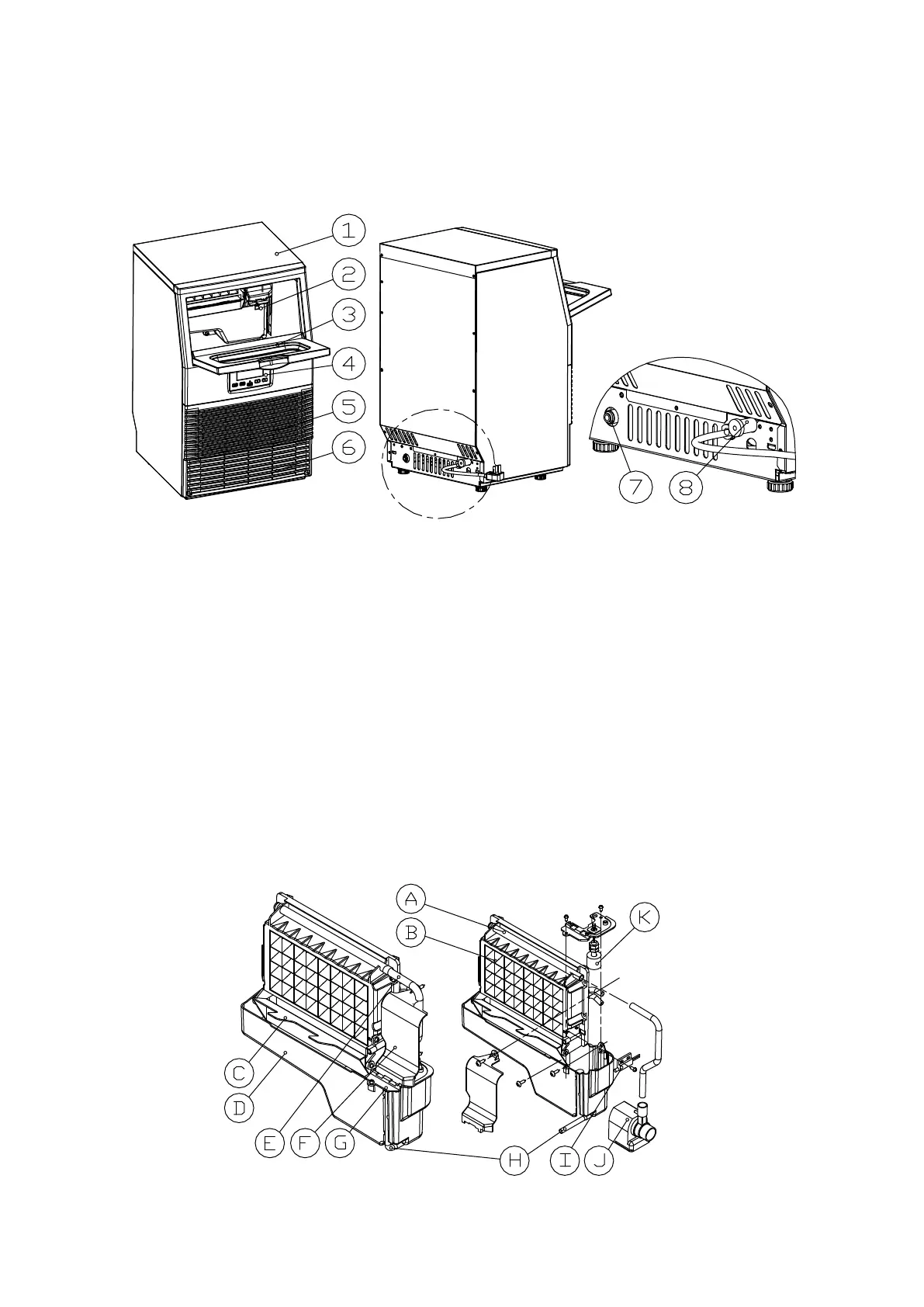

1) Main Unit Construction
1.Top cover
2. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water
charging tank, water pump an d some detecting parts
3. Doo r for ice takin g
4. O peration panel
5. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
6.Air inlet
7.Main Water supplying inlet: For connecting the main water suppl ying pipe
8. Water draining port：Normal plugged with the ca
p. When need to drain the water, unplug the c ap.
And connect the whi te drain pipe.
Accessory: About 2 meters long and white color water drain pipe、
1/4 inches to 1/2 inches water quick connector of the water faucet, ice scoop
¢6.35mm diameter and white c olor water supplying hose
2) Ice-making and its water tank parts
To Next Page
