ADJ Products, LLC - www.adj.com - DMX Operator User Manual Page 8
PUSH

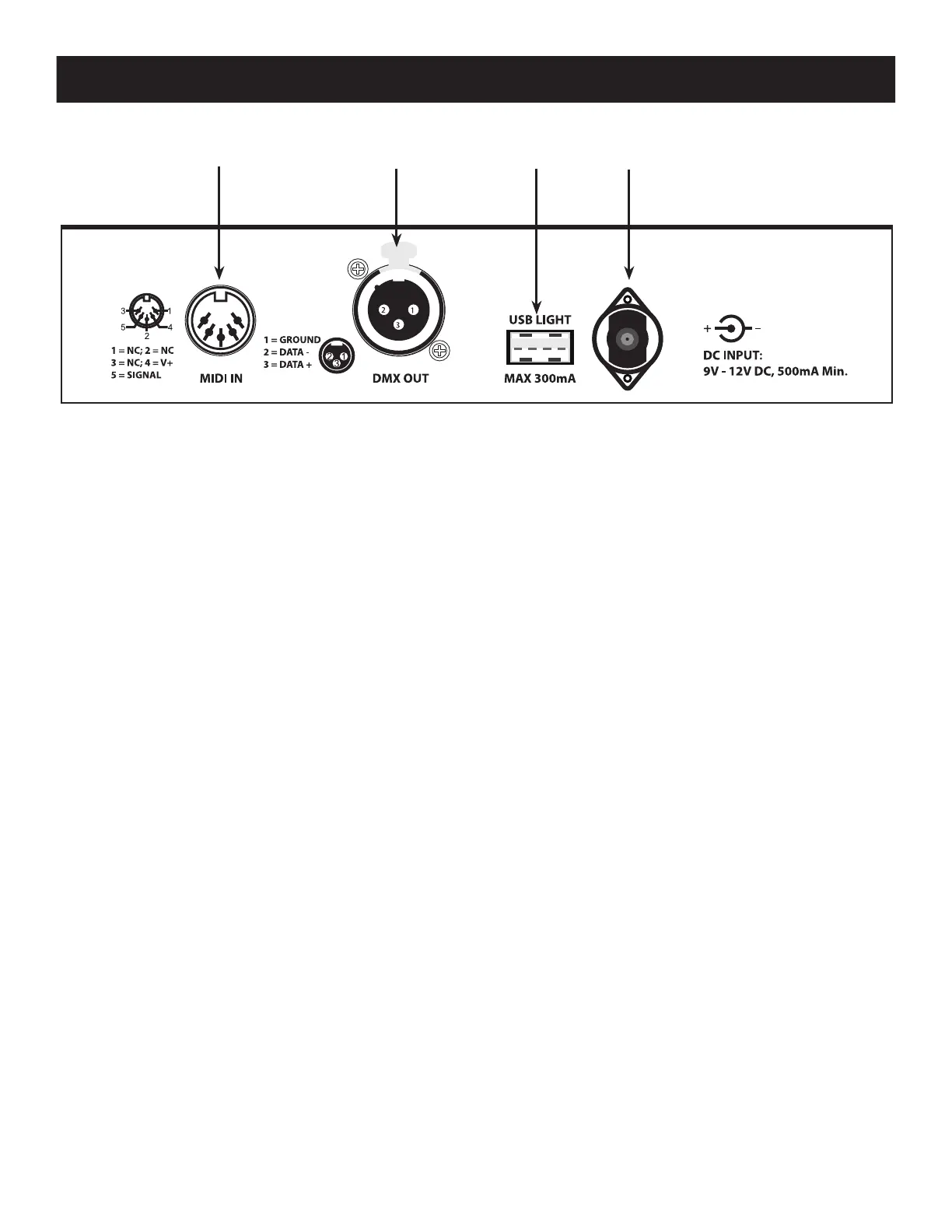

DMX Operator Rear Connections
16
17 18 19
16. MIDI IN - Receives MIDI data.
17. DMX OUT - Used to send DMX signal to fixtures or Packs.
18. USB INTERFACE - This USB INTERFACE has 3 uses:
• Connect a USB LED lamp, with MAX output current of 500mA (Light Not Included).
• Connect a USB stick (not included) and backup all controller settings
(chases/scenes/other settings). You are able to backup 12 files (fixtures 1-12).
Please see page 16 for backup instructions.
• Contact a USB stick (not included) to upload new controller firmware.
NOTE: Please contact ADJ customer support for more details.
19. DC INPUT - Accepts a DC 9~12V, 300 mA minimum, power supply.
