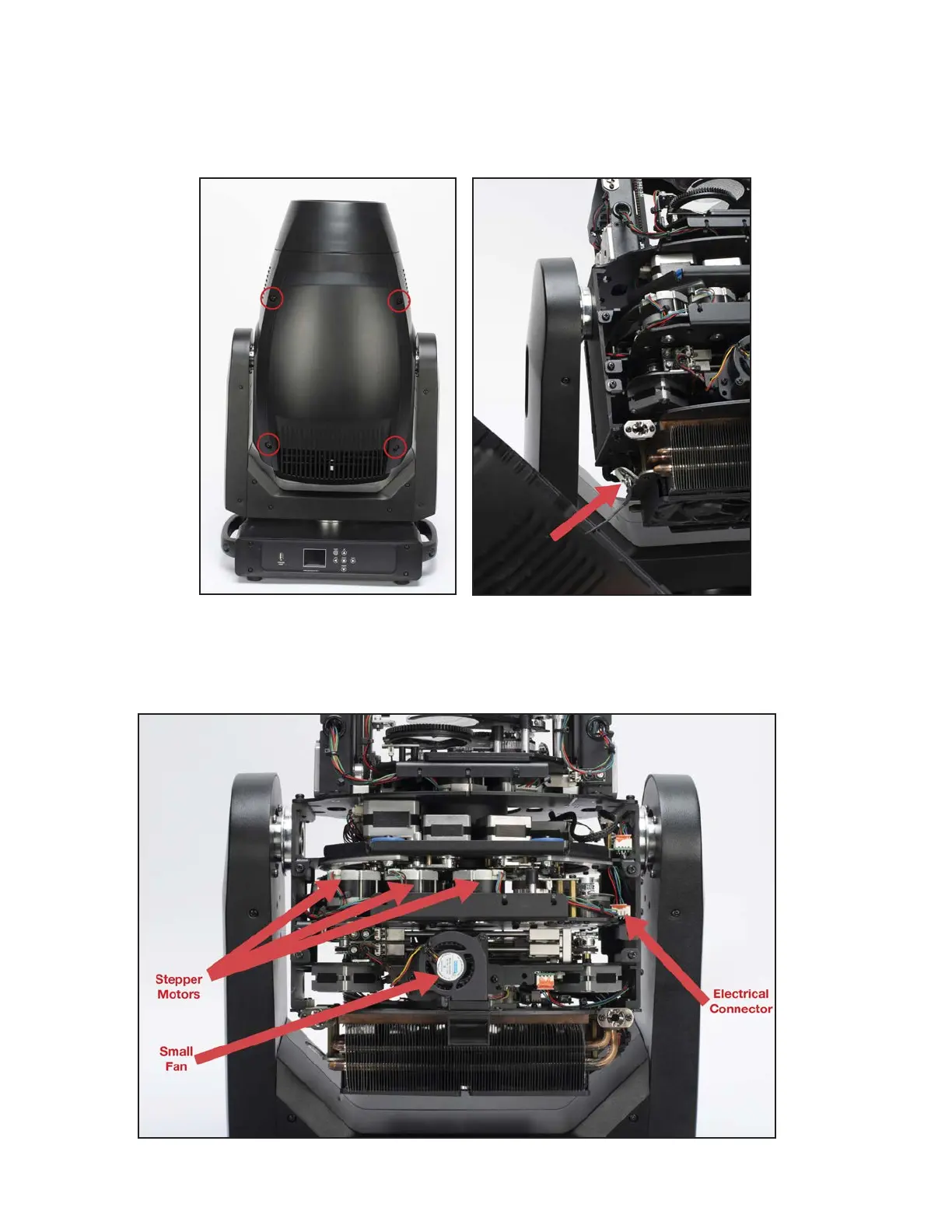

1. Engage both the pan and tilt locks. Use a screwdriver to loosen the 4 fasteners that secure the
cover (left), then unclip the security cable (right) and remove the cover. Repeat this process for
both halves of the cover.
2. Position the head so that the side with the small fan (located near the bottom of the head) is fac-
ing towards you. Locate the gobo wheel module, which prominently features a row of 3 stepper
motors. From there, find and disconnect the electrical connector on the right-hand side of the
module, near the effect wheel.
GOBO REPLACEMENT
