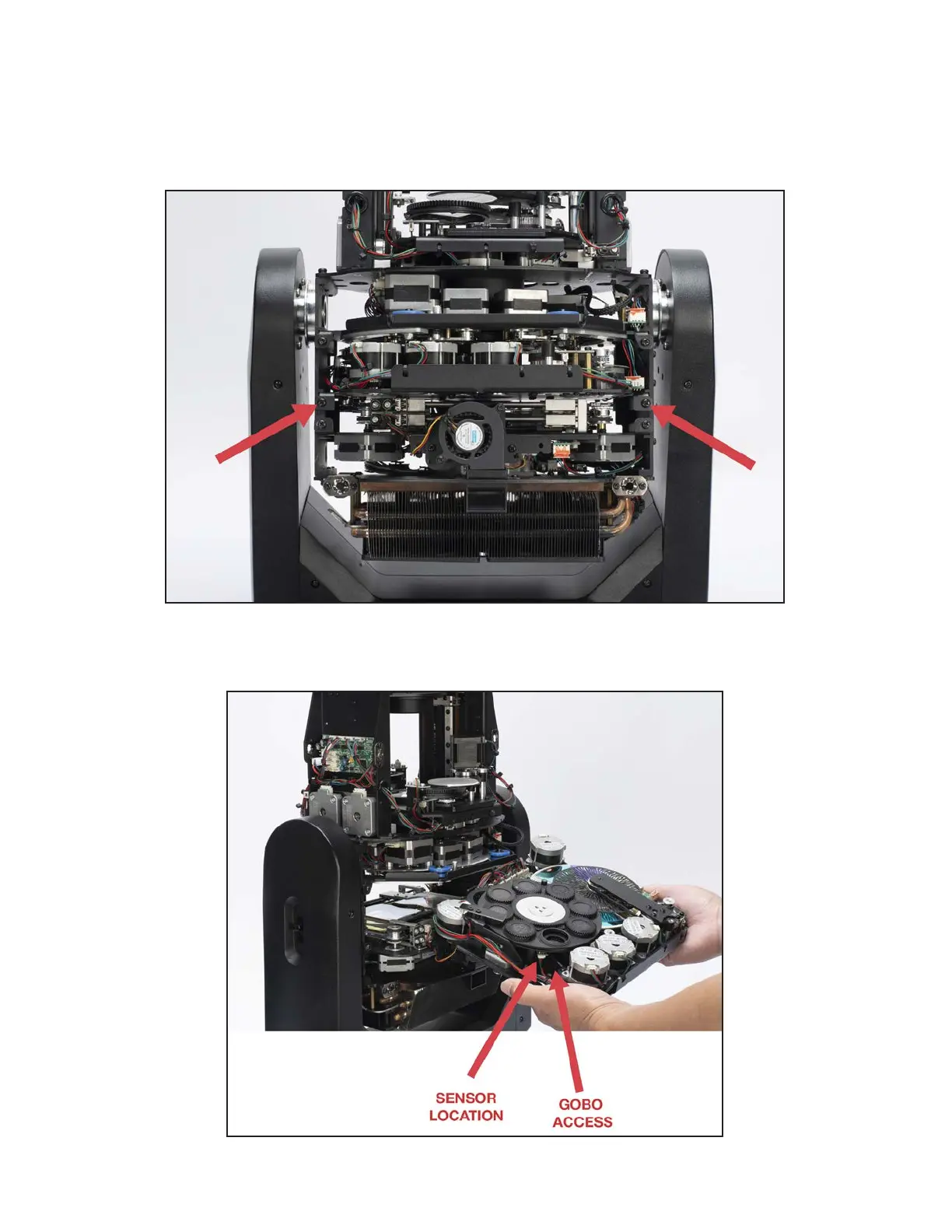

3. Locate the two screws that hold the gobo wheel module in place. The first screw is located below
and left of the stepper motors, and the second is located below and right of the electrical con-
nector that was disconnected in Step 2.
4. Remove the gobo wheel module from the head. Locate the open area between the left-most
stepper motor and the gobo wheel. This is the location that will be used to remove the desired
gobo. Please beware of damaging the sensor beneath the gobo wheel at this location.
16
GOBO REPLACEMENT
