5. Rotate the replaceable gobo wheel (top wheel) so that the gobo you wish to replace is positioned
near the open area just behind the left-most stepper motor. Then rotate the non-replaceable
gobo wheel (bottom wheel) so that the open slot is aligned with the gobo you wish to replace.

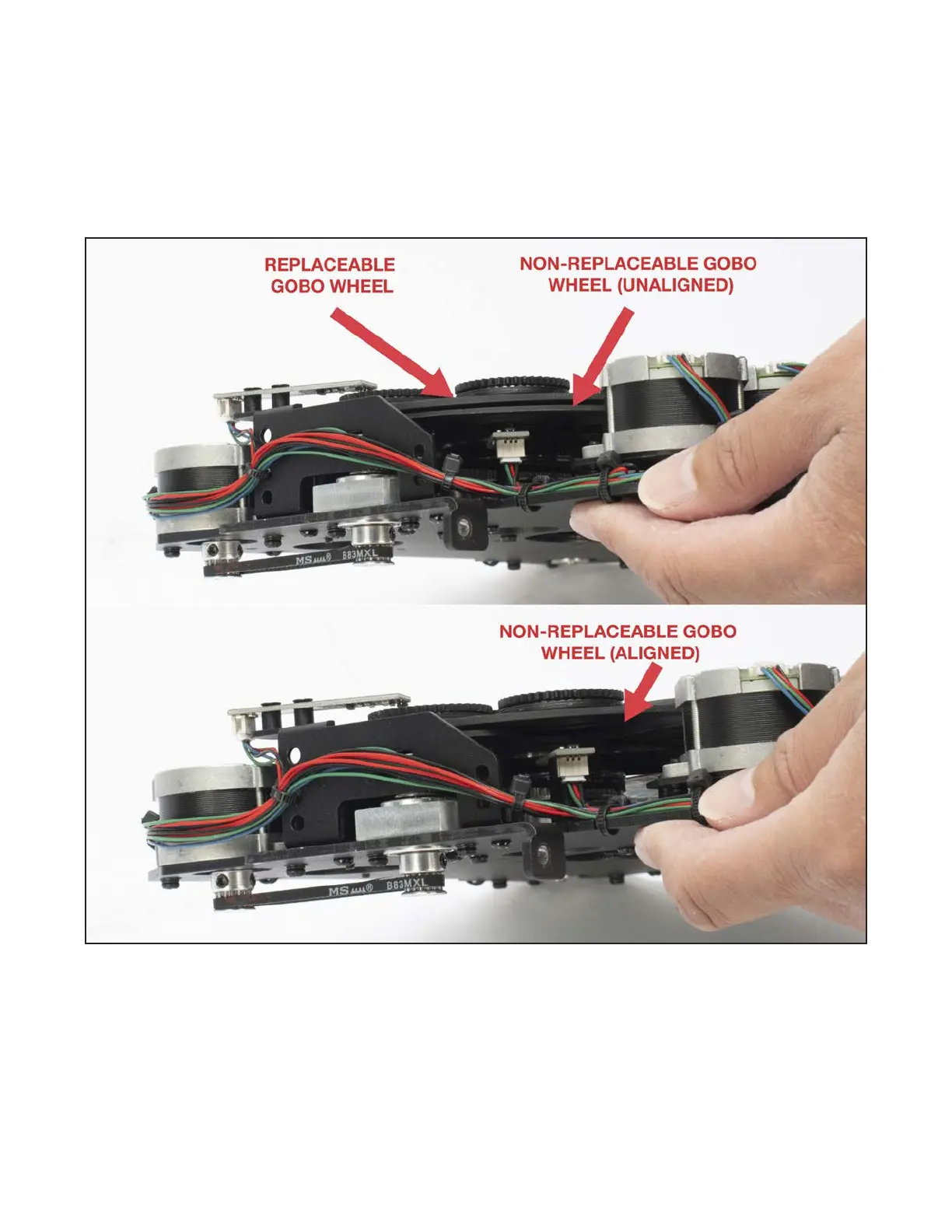

The top image shows the 2 gobo wheels out of alignment; the bottom image shows the 2 wheels
aligned as desired.
17
GOBO REPLACEMENT
