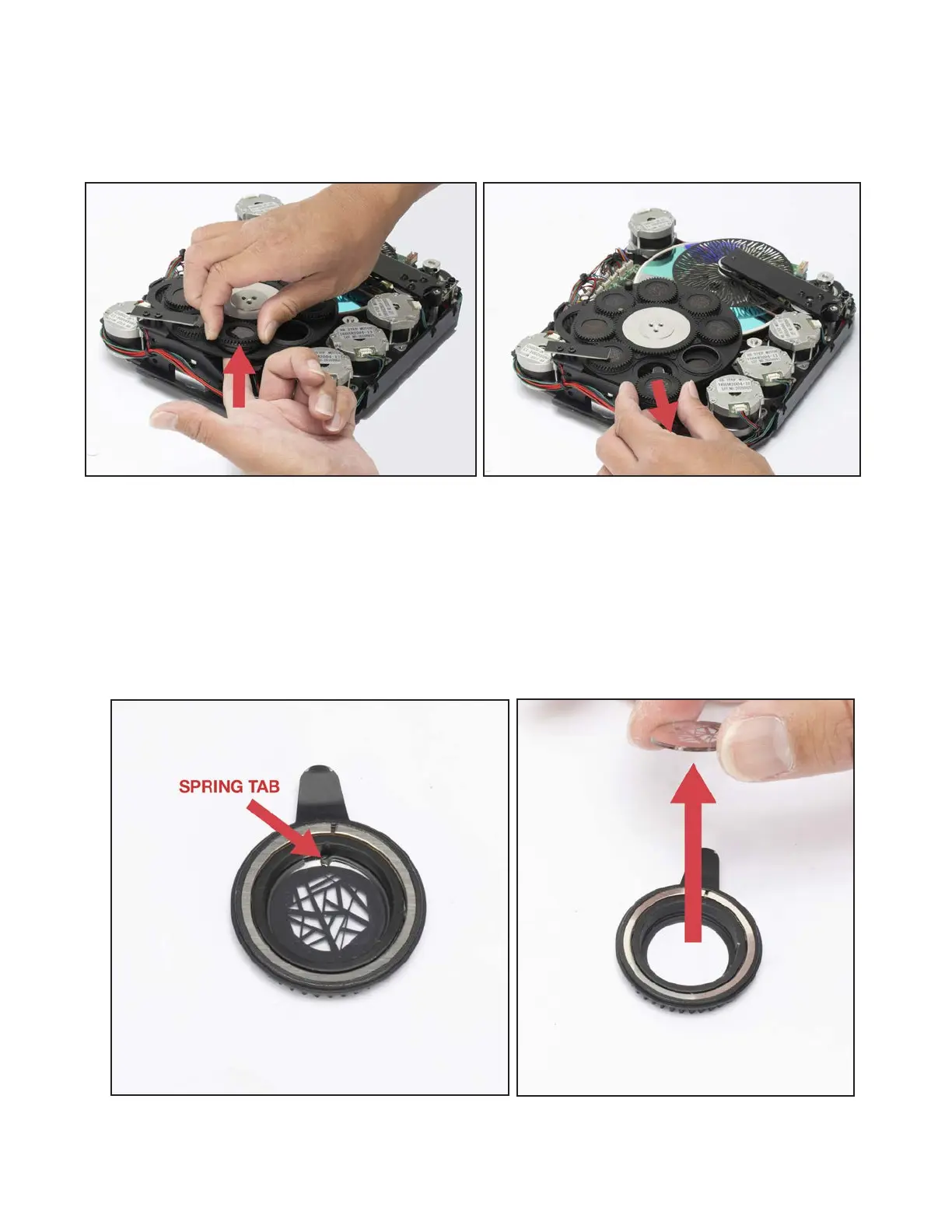

6. Firmly grasp the holder of the gobo you wish you replace by the toothed gear portion. Lift the
gobo upward, gently pushing from below with a finger if necessary (left), then pull the holder out-
ward (right) to remove from the gobo wheel.
7. Turn the holder over so that the gear side is facing downwards. Carefully use a pick to catch
the spring tab and release the retainer spring (left). Be careful to avoid scratching the gobo.
Remove the retainer spring, then remove the gobo (right).
18
GOBO REPLACEMENT
