8. Place the new gobo in the gobo holder, and re-install the retainer spring.

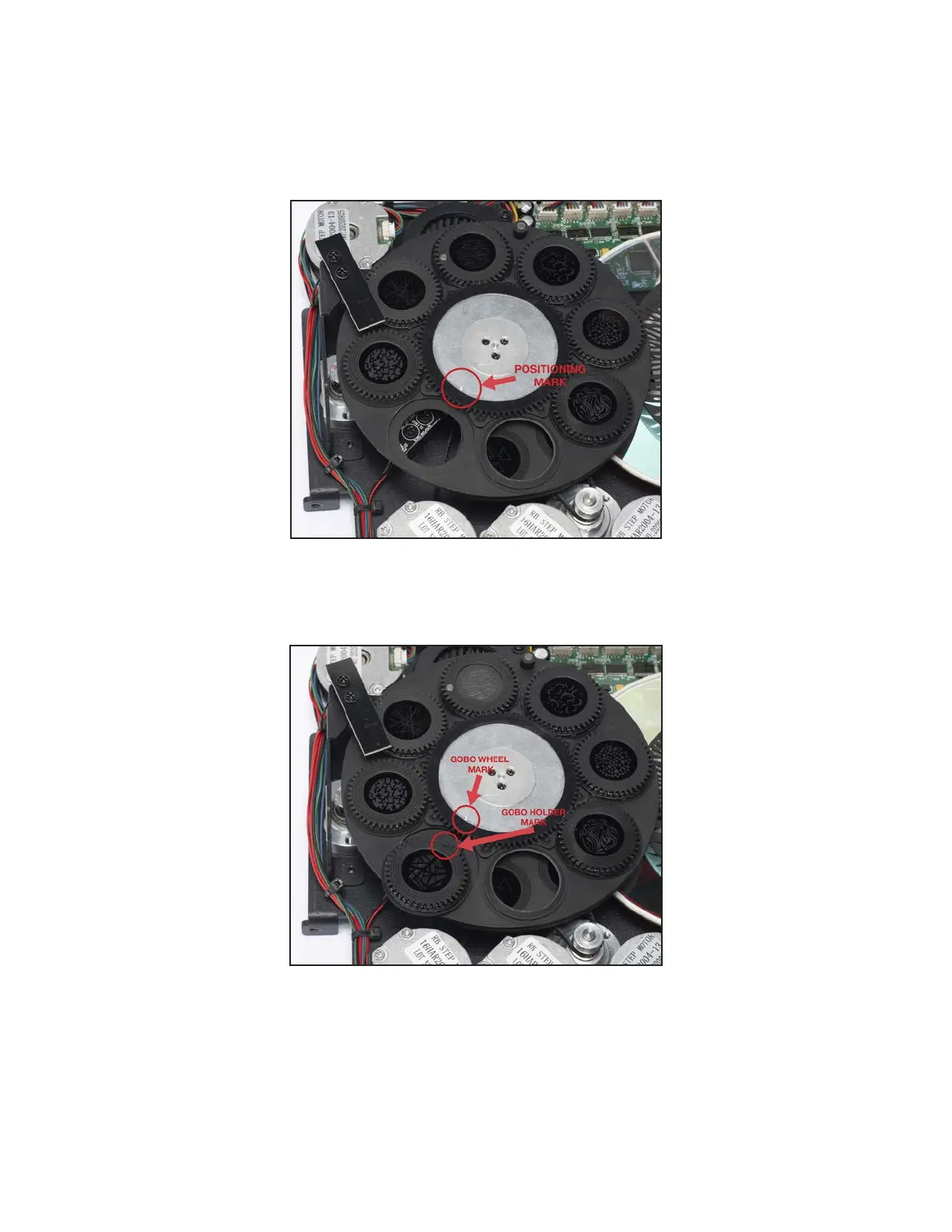

9. Manually rotate the silver central gear of the gobo wheel so that the positioning mark is aligned
with the slot where you will be installing the new gobo.
10. Turn the gobo holder back over so that the gear side is facing upwards. Position the mark on the
gobo holder so that it aligns with the mark on the gobo wheel, then slide the prong on the gobo
holder into the slot on the gobo wheel until it clicks into place.
11. Re-assemble the moving head by reversing steps 1-4.
19
GOBO REPLACEMENT
