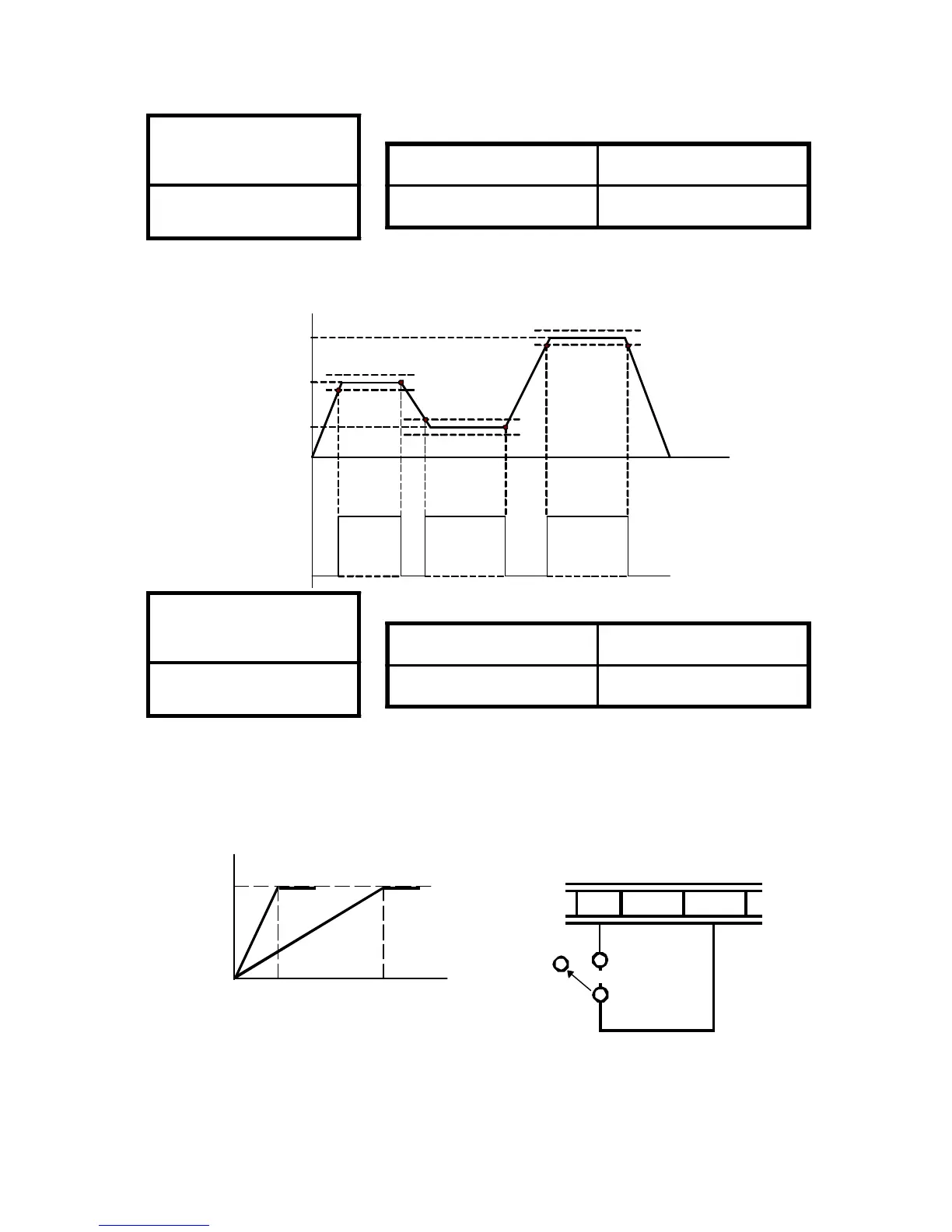

Frequency arrive
signal range
CD55
1.Signal output at running F.≧ setting F.x(1-CD55%) for acceleration.
2.Signal output at running F.≦ setting F.x(1+CD55%) for deceleration.
44
Setting Range 0.0 ~ 100.0%
Default Value 10.0%
+10%
-10%
+10%
-10%
+10%
-10%
ON
ON
ON
Setting
Frequency 3
Setting
Frequency 1
Setting
Frequency 2
ARR Terminal
2nd Maximum
Voltage frequency
CD56
Set CD42(CD43)=7 define FT1(FT2) terminal for hardware V/F curve
switcher.
Open : select the 1st V/F curve preset in CD17
Close : select the 2nd V/F curve preset in CD56
V
100%
CD17 CD56 (f)
(1st) (2nd)
FT1 COM
2 V/F
1 V/F
Setting Range 25.00 ~ 400.00HZ
Default Value 60.00HZ
To Next Page
