43

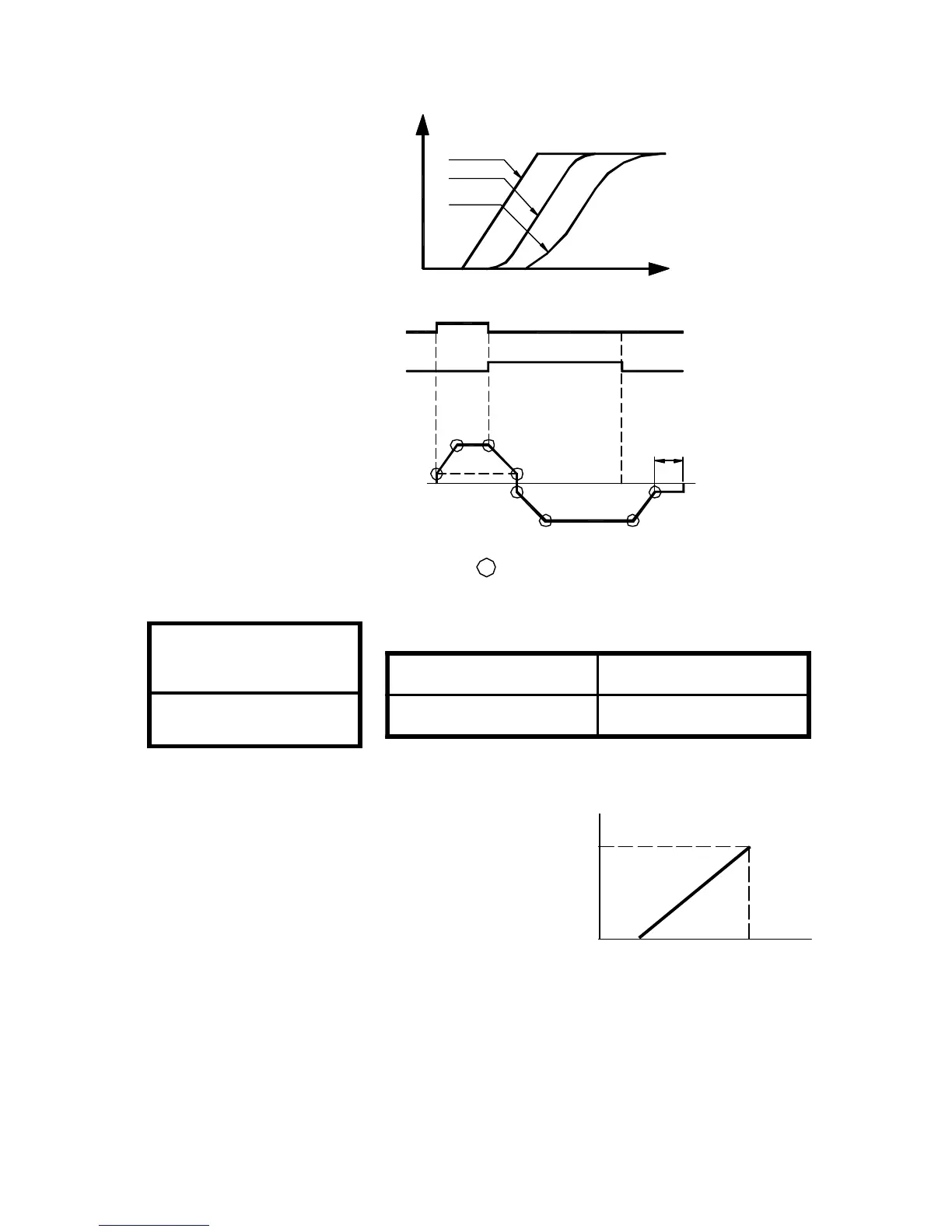

FWD RUN COMMAND
Output Frequency
ACCEL DECEL
Braking Time
DC injection
S Curve period
REV RUN COMMAND
CD53=0
CD53=3
CD53=7
F
(Hz)
TIME
This function only effects in CD44(CD45)=8,9,10,13.
Set FA1(FA2) for current signal (4-20mA).
0 : No current signal application
1 : Current signal in terminal FA1
2 : Current signal in terminal FA2
3 : FA1 & FA2 current signal terminal
Note : referenct to FA1(FA2) terminal
setting for 4-20mA signal.
F
Fmax
Fmin
4mA 20mA
current signal
4 ~ 20 mA speed
command
CD54
Setting Range 0 ~ 3
Default Value 0
