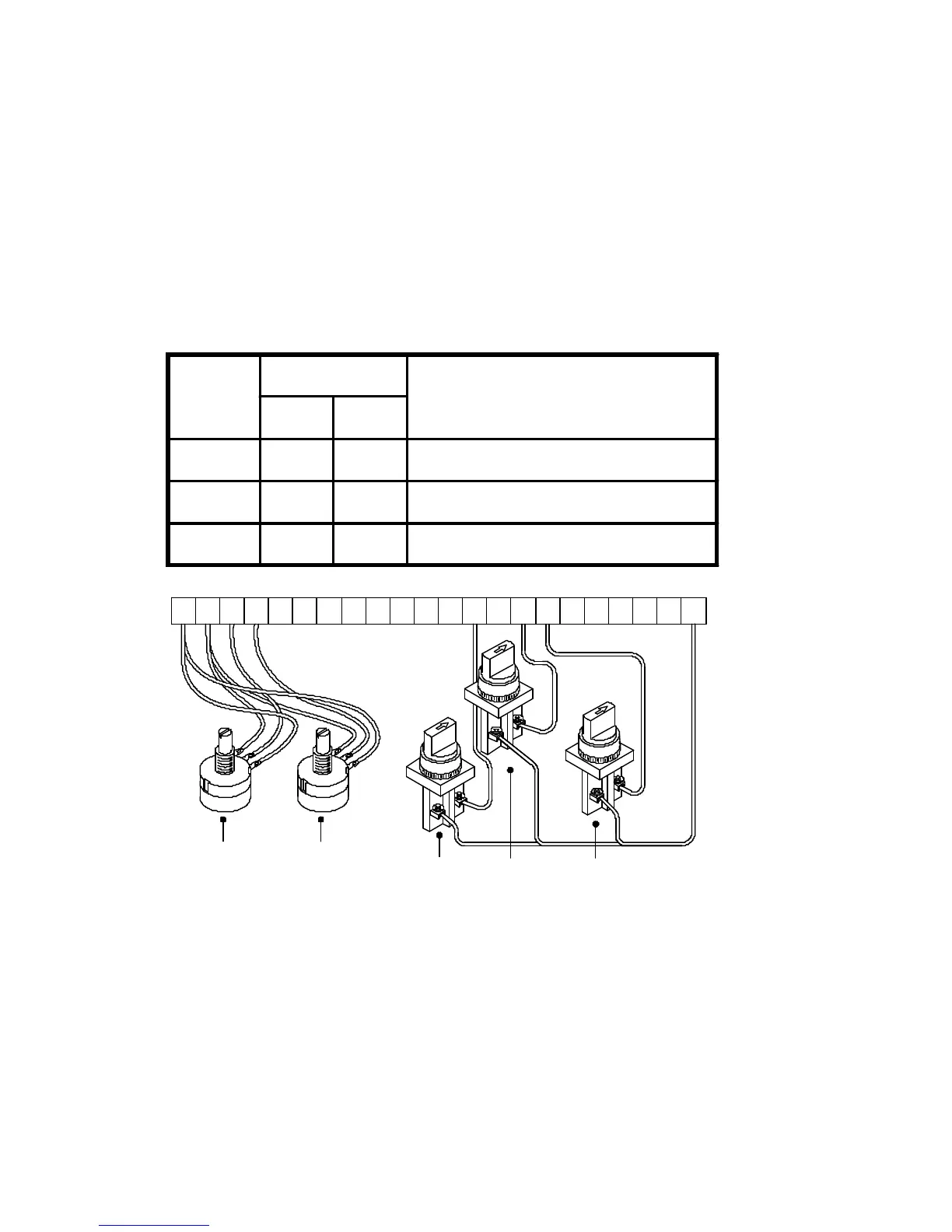

EXAMPLE 04 : Using VR for 3 stages
DESCRIPTION :
CD10 = 1 ; 1st speed single enter from terminal
CD12 = 1 ; Terminal command (For External)
CD44 = 8 ; 2nd speed single enter from FA1
CD45 = 9 ; 3nd speed signal enter from FA2
88
REVMETFA110VGND FA2 MBMA AMC CB FWD24V CF2CF1 FT2FT1 ARRRST COMCOM
RUN/STOP
SW1
VR2 VR3
SW2
SPEED
TERMINAL
SPEED COMMAND ENTRY
SW2 SW1
1 OFF OFF Pannel VR1
2 OFF ON VR2
3 ON OFF VR3
