10
MS2(4)-337

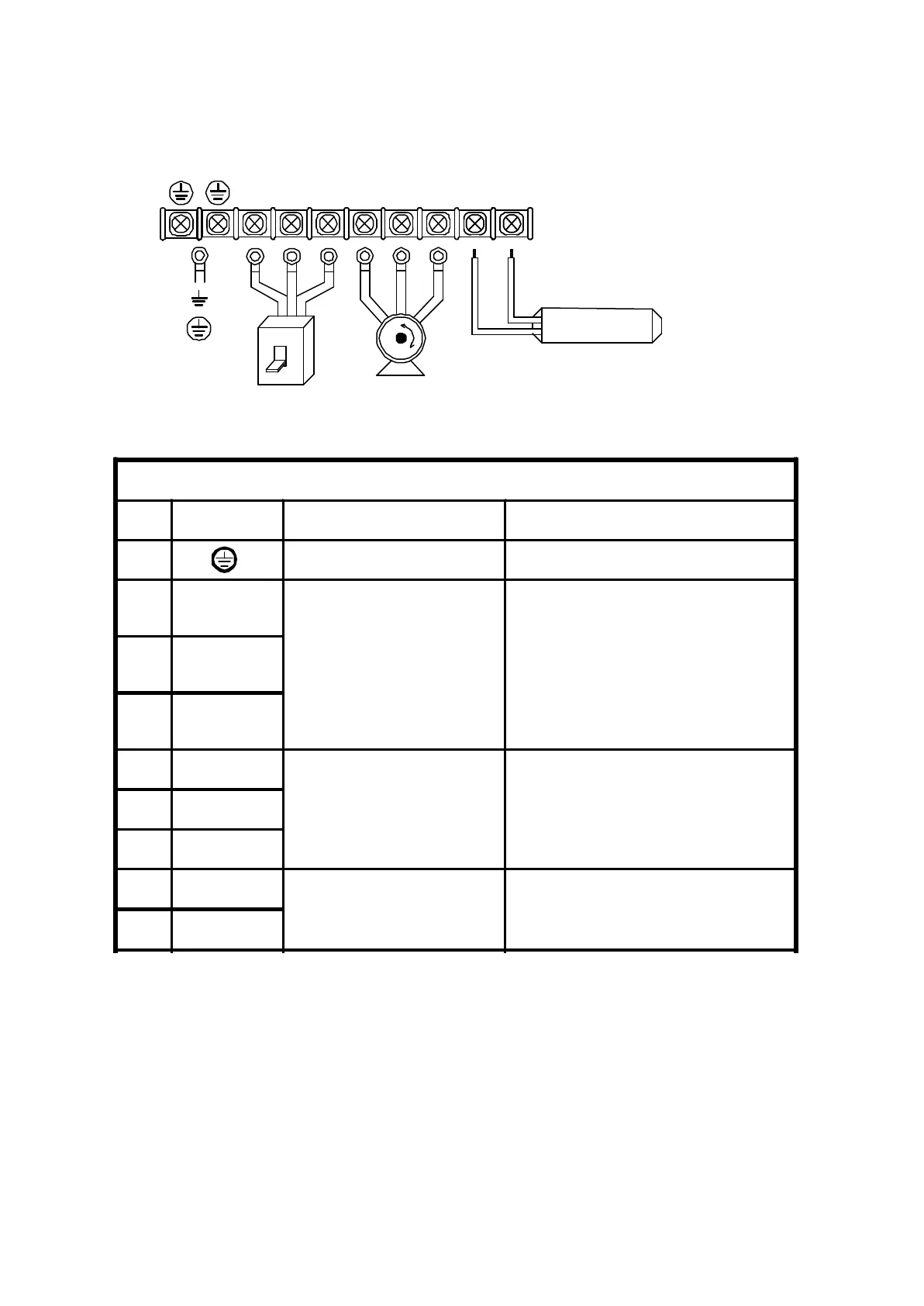

Main circuit terminal
No. Symbol Description Terminal name
1 Ground Ground(Earth) Terminal
2 L1
Connect power supply
(L1,L2) Single Phase
(L1,L2,L3) Three Phase
110VAC±10%
220VAC±10%
380/440VAC±10%
50/60HZ±10%
3 L2
4 L3
5 W
Inverter output
Terminals connected
to motor
6 V
7 U
8 P
Dynamic brake
Terminals connected to braking
Resistor
9 PR
L2 L3
U V W
GROUND
P PR
L1
POWER
MOTOR
External braking resistor
Refer to the appendix A
MS2-337 60 80W：
MS 4-337 180 80W：
SOURCE
Ω
Ω
