EXAMPLE 02 : Normal / Jog operation
DESCRIPTION :
CD00 = Normal speed ; User setting
CD04 = Jog speed ; User setting
CD12 = 1 ; Terminal command (For External)
CD42 = 1 ; Define FT1 Terminal = JOGF function
CD43 = 2 ; Define FT2 Terminal = JOGR function
Set FT1 jumper at FT1 and FT2 jumper at FT2, see 4-1 descrip-
tion on page 14.

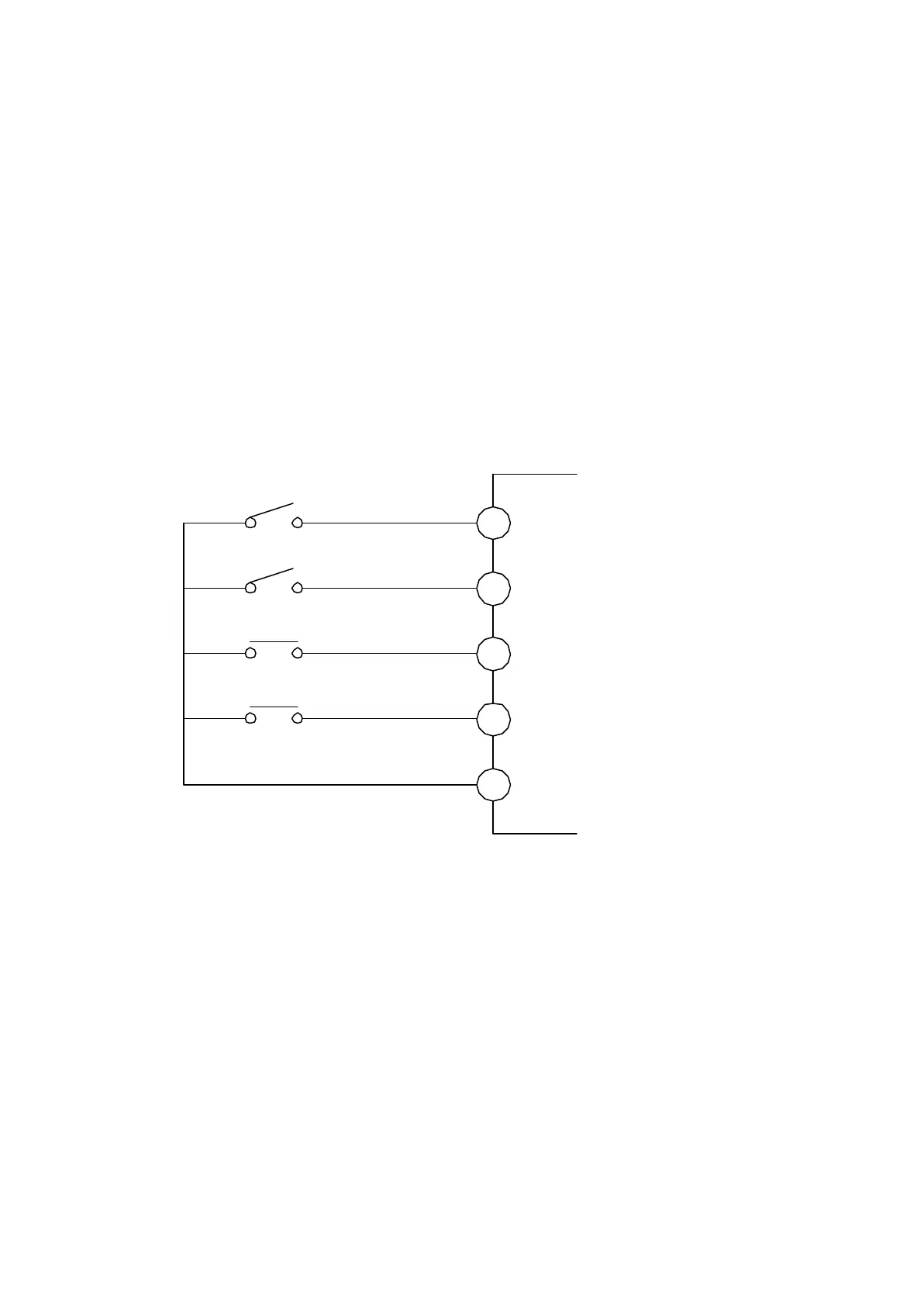

NORMAL / JOG
S1 = FWD SW
S2 = REV SW
S3 = FWD JOG SW
S4 = REV JOG SW
88
9
10
11
12
FWD
REV
FT1 (JOGF)
FT2 (JOGR)
S1
S2
S3
S4
14 COM
