EXAMPLE 04 : 8th speed from terminal control
DESCRIPTION :
CD12=1
CD42=6
CD58=0
CD00 : 1st speed
CD22 : 2nd speed
CD23 : 3rd speed
CD24 : 4th speed
CD47 : 5th speed
CD48 : 6th speed
CD49 : 7th speed
CD50 : 8th speed
3
2
1

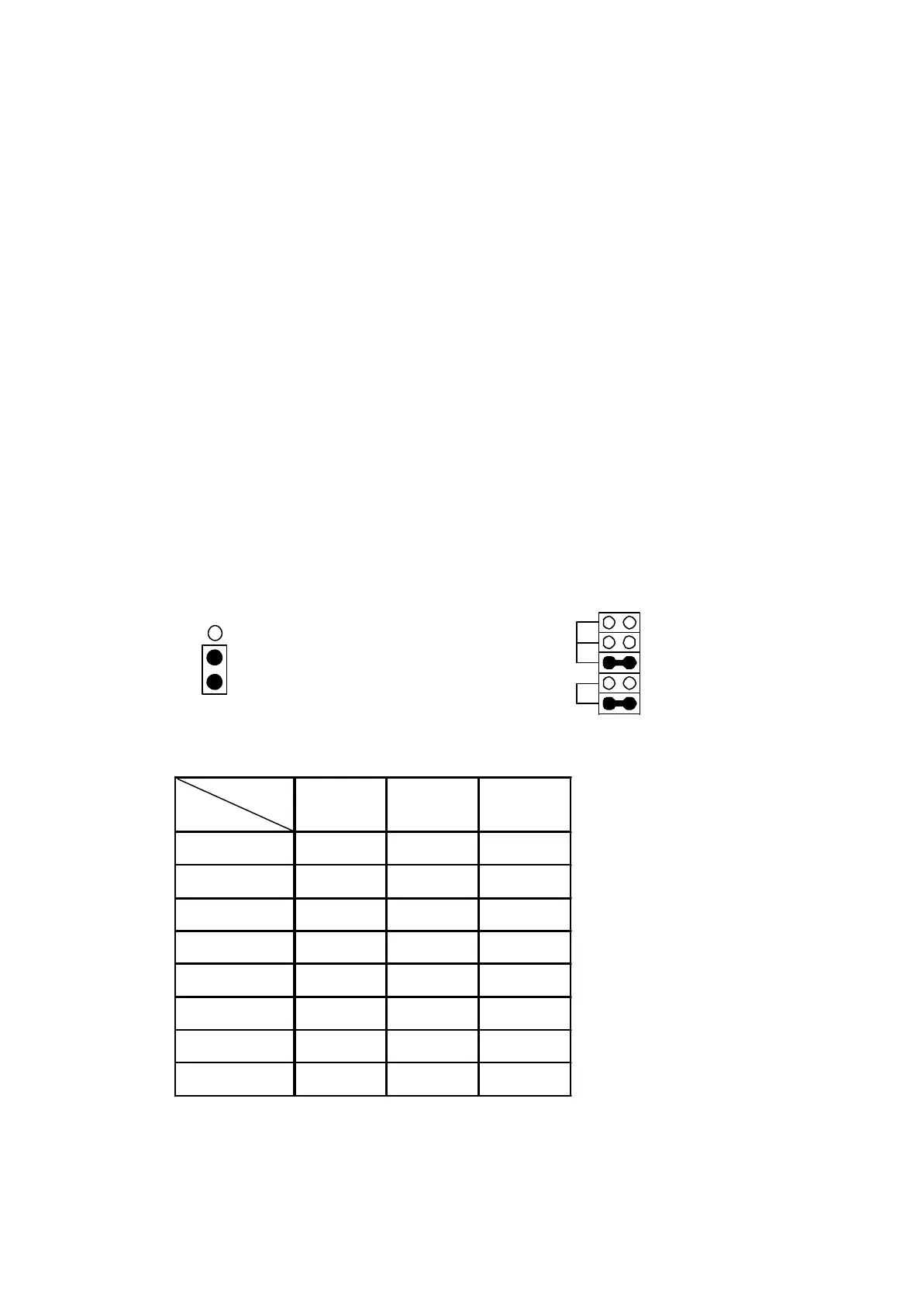

1 and 2 short
90
Terminal
Speed
FT1
(CF1)
FT2
(CF2)
CF3
1st speed OFF OFF OFF
2nd speed ON OFF OFF
3rd speed OFF ON OFF
4th speed ON ON OFF
5th speed OFF OFF ON
6th speed ON OFF ON
7th speed OFF ON ON
8th speed ON ON ON
RST
FT2
CF2
FT1
CF1
FT2
FT1
