Crazy Tower Arcade Manual V7.1
Chapter 10 – Card Reader
49 | P a g e

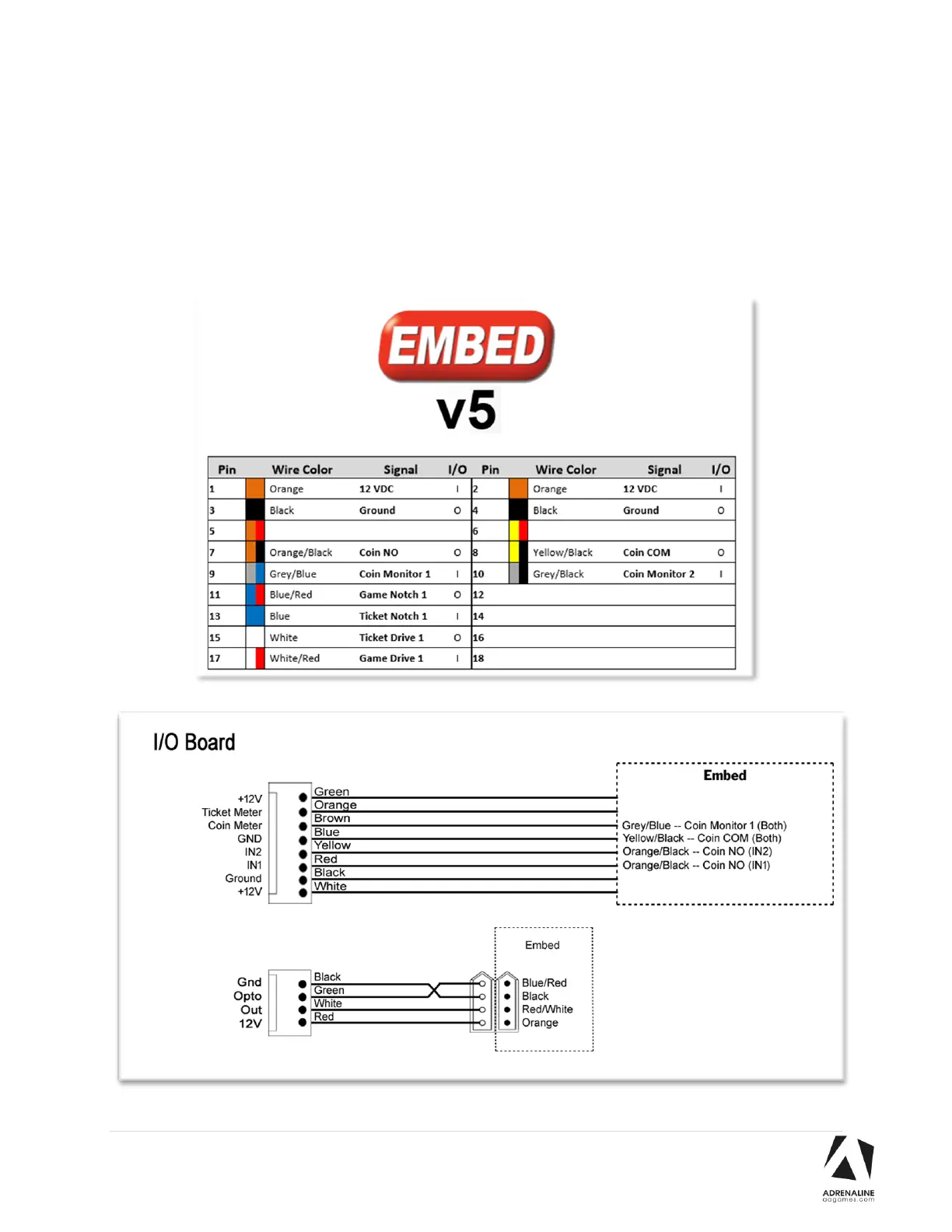

Embed System
If you are using an Embed system, you need to connect your harnesses to Adrenaline Amusements I/O
board & harnesses. You should refer to the Embed instructions manual for wiring pin-out but here’s
Embed V5 example:
