Adrenaline Crazy Tower Arcade - Chapter 8: Diagrams and Schematics; I;O Board Diagram (ADR-04-1001)

Crazy Tower Arcade Manual V7.1
Chapter 08 – Diagrams & Schematics
35 | P a g e
Chapter 08 – Diagrams & Schematics

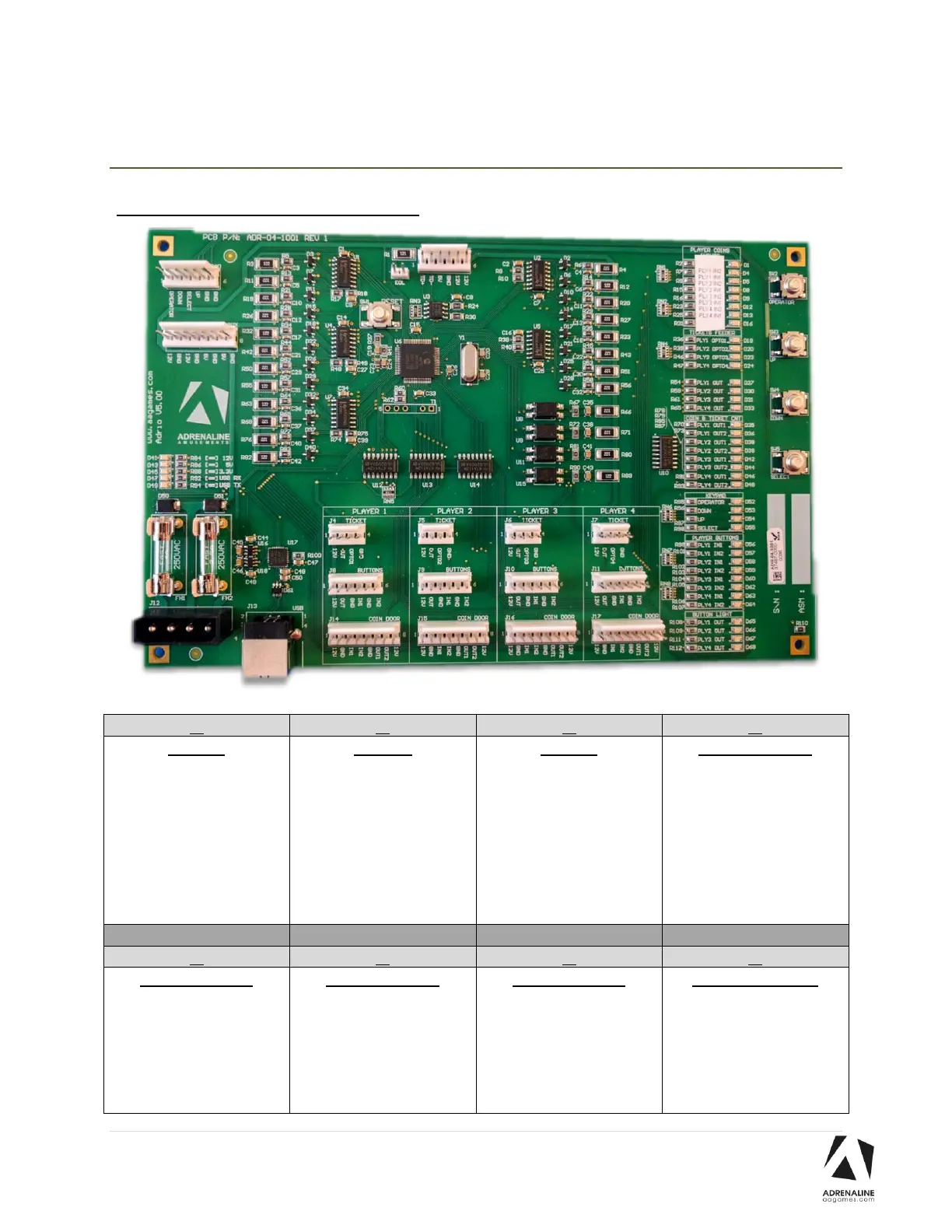

I/0 board ADR-04-1001 Rev. 1
J1
J2
J3
J4
No Use
Keypad
1. (Blue) Enter
2. (Green) Down
3. (Red) Select
4. (White) Up
5. (Black) GND
6. No Use
No Use
Player 1 Ticket
1. (Red) +12V
2. (White) OUT
3. (Green) OPTO1
4. (Black) GND
J5
J6
J7
J8
Player 2 Ticket
1. (Red) +12V
2. (White) OUT
3. (Green) OPTO2
4. (Black) GND
Player 3 Ticket
1. (Red) +12V
2. (White) OUT
3. (Green) OPTO3
4. (Black) GND
Player 4 Ticket
1. (Red) +12V
2. (White) OUT
3. (Green) OPTO4
4. (Black) GND
Player 1 Buttons
1. (Red) +12V
2. (Blue) OUT
3. (Black) GND
4. (White) IN1
5. No Use
6. No Use
