ADT 7100 User Manual System Overview

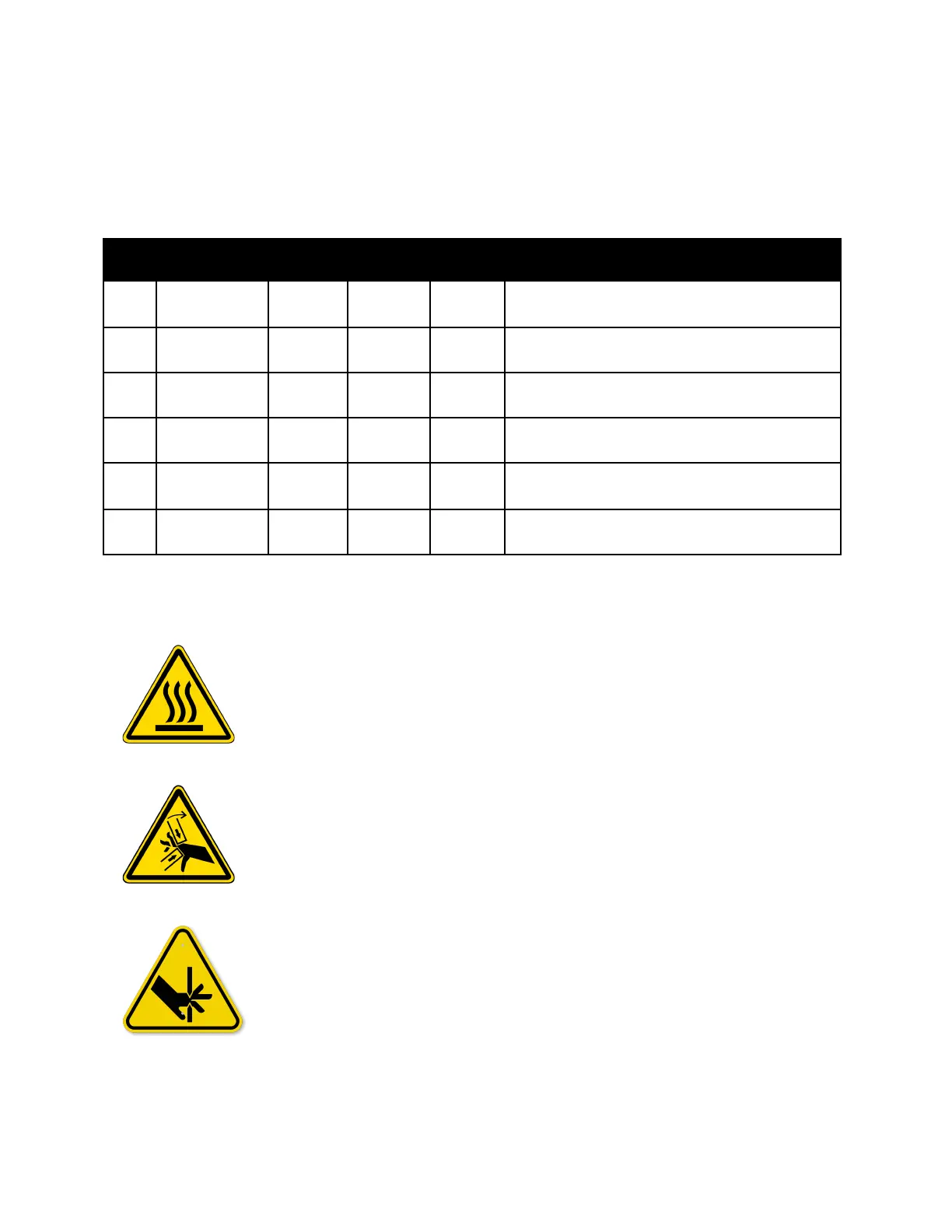

Types of Blades
The grit size and composition of a blade are dependent on the material to be cut. The thinner the
blade, the narrower the kerf. These are blades available in the LNF store.
Brand
Model
Typical Kerf
(um)
Exposure
(mm)
Diamond
grit (um)
Notes
ADT
00777-1030-008
230
0.864 - 2.388
30
It is used to cut glass and other hard materials. Less
chipping than blade 1045 but higher wear rate
ADT
00777-1045-008
230
0.864 - 2.388
45
It is used to cut glass and other hard materials
K&S
S1230-Q5HH-000
50
0.762
4 - 6
It is used only to cut silicon and softer materials.
It is getting discontinue
K&S
SC-20-Q-D0-DE
36 - 40
0.762
4 - 6
It is used only to cut silicon and softer materials.
Equivalent to blade S1230-Q5HH-000
K&S
S2550-Q5HH-000
80
1.27
4 - 6
It is used only to cut thicker silicon and softer materials.
It is getting discontinue
K&S
SC-20-Q-D0-HH
61 - 70
1.27
4 - 6
It is used only to cut thicker silicon and softer materials.
Equivalent to blade S2550-Q5HH-000
1.4 SAFETY AND HAZARDS
The chuck on the mounting station operates at 60°C. Therefore, always use
caution when adding or removing samples.
The chamber door and handles are a pinch hazard. Always use caution
when opening and closing the chamber door.
The dicing blade can rotate as fast as 60 krpm and is dangerous to touch. Do
not force open any cover or reach under it. Never touch the edge of a blade;
this can injure you or damage the blade.
