ADTRAN NetVanta 1230 Series User Manual

Physical Descriptions NetVanta 1230 Series Hardware Installation Guide
18 Copyright © 2009 ADTRAN, Inc. 61700594G1-34B
10/100/1000Base-T Gigabit Ethernet Interfaces
The NetVanta 1238 front panel contains four Gigabit Ethernet interfaces (RJ-45). These interfaces are
labeled G1 through G4 and their status LEDs are located directly over the interfaces.
SFP Slots
The NetVanta 1238 front panel contains two standard SFP slots for fiber connectivity. These
interfaces, numbered G1 and G2, are associated with the Gigabit Ethernet interfaces numbered G1 and
G2 and share status LEDs. (Use either the RJ-45 connectors or the SFP slots. The fiber slots have
precedence.)
NetVanta 1238 Rear Panel Design
The NetVanta 1238 rear panel is shown below. Refer to Appendix A on page 27 for pinouts.

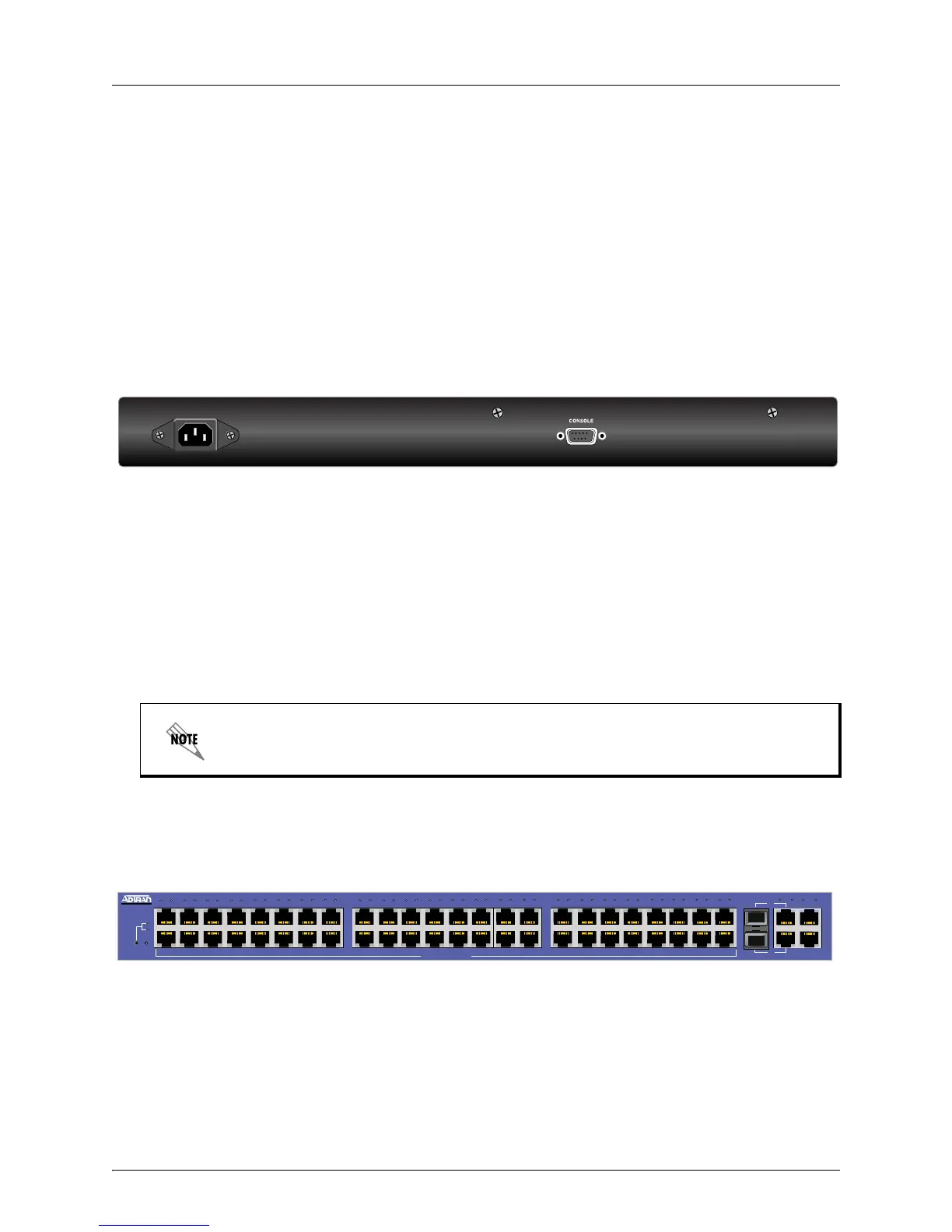

Figure 6. NetVanta 1238 Rear Panel Layout
NetVanta 1238 Rear Panel Interfaces
Power Connection
The rear panel has a power input to the AC universal power supply. Please refer to Supplying Power to
the Unit on page 25 for connection details.
CONSOLE Interface
The CONSOLE interface is an EIA-232 serial port (DCE) that provides local management and
configuration (via a DB-9 female connector).
NetVanta 1238 PoE Front Panel Design
The NetVanta 1238 PoE front panel is shown below. Table 1 on page 20 describes all of the LEDs, and
Appendix A on page 27 shows the connector pinouts.
Figure 7. NetVanta 1238 PoE Front Panel Layout
NetVanta 1238 PoE Front Panel Features
Status LED
The STAT LED, which indicates the unit’s status, is located to the lower left of the front panel adjacent
to RJ-45 port 2.
Connection directly to an external modem requires a cross-over cable.
100-240 VAC
50-60 Hz
0.5A MAX
G2
G3
G4
NetVanta 1238
7
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1718 1920 2122 23 24 25 26 2728 2930 3132 3334 35 36 3738 39 40 4142 4344 4546 4748
1 3 5 9 11 13 15
2
4
6
8
10 12
14
16
17 19 21 23 25 27 29 31
18
20
22
24
26 28
30
32
33 35 37 39 41 43 45 47
34
36
38
40
42
44 46
48
STAT
G1
G1
G2
G3
G4
LINK/ACT
PoE
Power over Ethernet
