NetVanta 1230 Series Hardware Installation Guide Unit Installation
61700594G1-34B Copyright © 2009 ADTRAN, Inc. 25

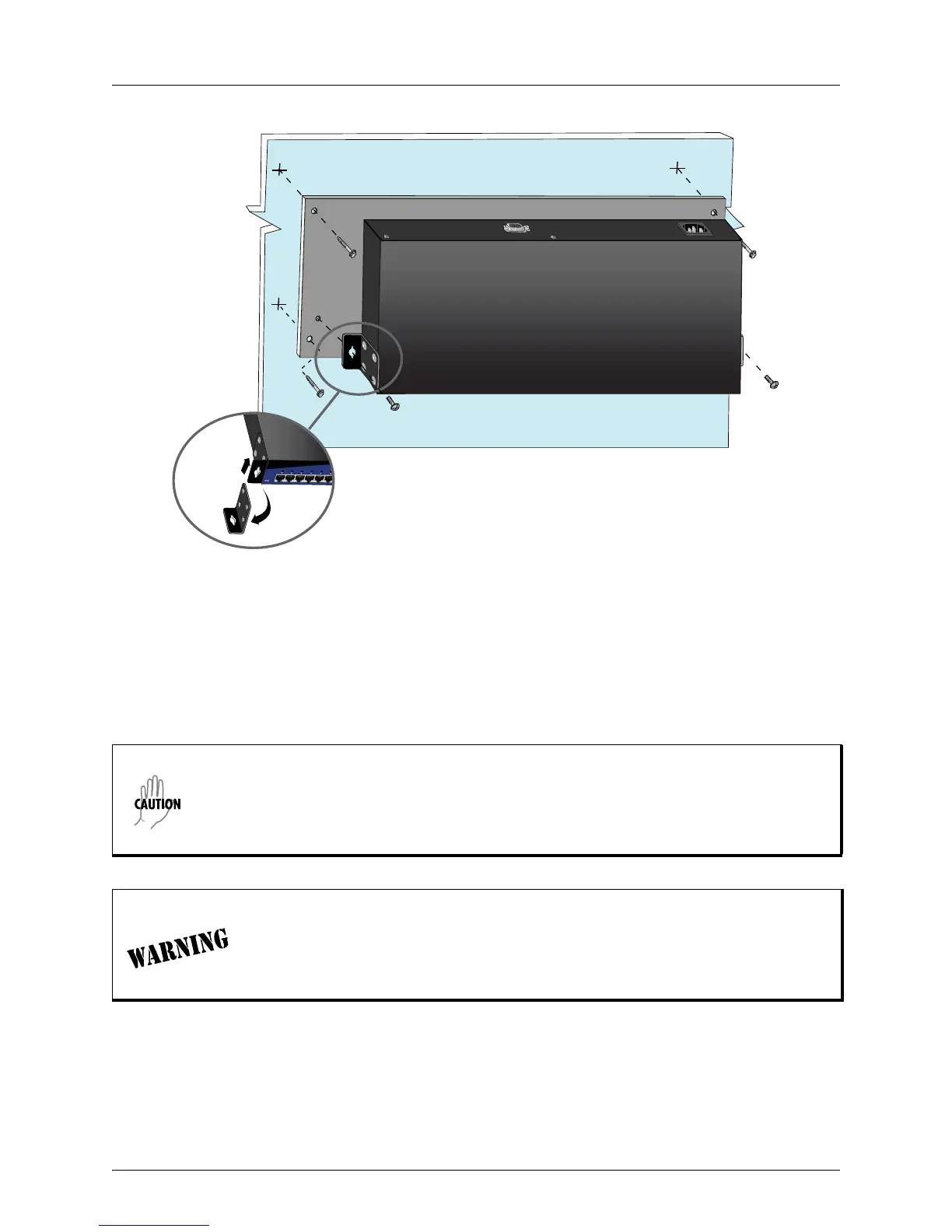

Figure 9. Wallmount Installation
Supplying Power to the Unit
The NetVanta 1230 Series units come equipped with an auto-sensing 100 to 240 VAC, 50/60 Hz power supply
for connecting to a properly grounded power receptacle. (A detachable power cable with a grounded,
three-prong plug comes with the shipment.) To power these units, plug one end of the power cable into the
power connector of the NetVanta and the other end to an appropriate AC power source.
After the NetVanta is powered on, the LED indicators will flash momentarily. This flashing represents a reset of
the system.
Use only approved power cable(s). If you have not been provided with a power cable for
your system, purchase a power cable that is approved for use in your country. The power
cable must be rated for the product and for the voltage and current marked on the
product's electrical ratings label. The voltage and current rating of the cable should be
greater than the ratings marked on the product.
To help prevent electric shock, plug the system and peripheral power cables into
properly grounded electrical outlets. These cables are equipped with three-prong
plugs to help ensure proper grounding. Do not use adapter plugs or remove the
grounding prong from a cable. If you must use an extension cable, use a 3-wire cable
with properly grounded plugs.
CONSOLE
100-250 VAC
50-60Hz
