Physical Descriptions NetVanta 3100 Series Hardware Installation Guide
18 Copyright © 2015 ADTRAN, Inc. 61700600L2-34C
• AAA support using local user database, RADIUS, and TACACS+
• Flash memory supports multiple images of AOS
• Remotely configurable and field upgradeable using TFTP or FTP (1700611G2 only)
• Telnet, HTTP, SSH, or SNMP management options
• 1.63-inch H x 9.00-inch W x 6.38-inch D
• DC power (12 VDC, 800 mA, 7.5 W)
• Operating Temperature: 0°C to 50°C
• RoHS compliant (Telecommunications exemption) (1700611G2, 1700612G1 only)
NetVanta 3130 Shipping Contents
Each NetVanta 3130 unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in
transit, immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to the
Support page on the ADTRAN website at http://www.adtran.com/support
).
Shipments of the NetVanta 3130 include the following items:
• NetVanta 3130 base unit
• Quick start guide
• External 12 VDC power supply
• One 7-foot CAT 5e cable (P/N 3125111-E)
• One 7-foot phone cable
NetVanta 3130 Front Panel Design
The NetVanta 3130 front panel is shown below. Front panel LED descriptions are given in Table 1 on page 24.

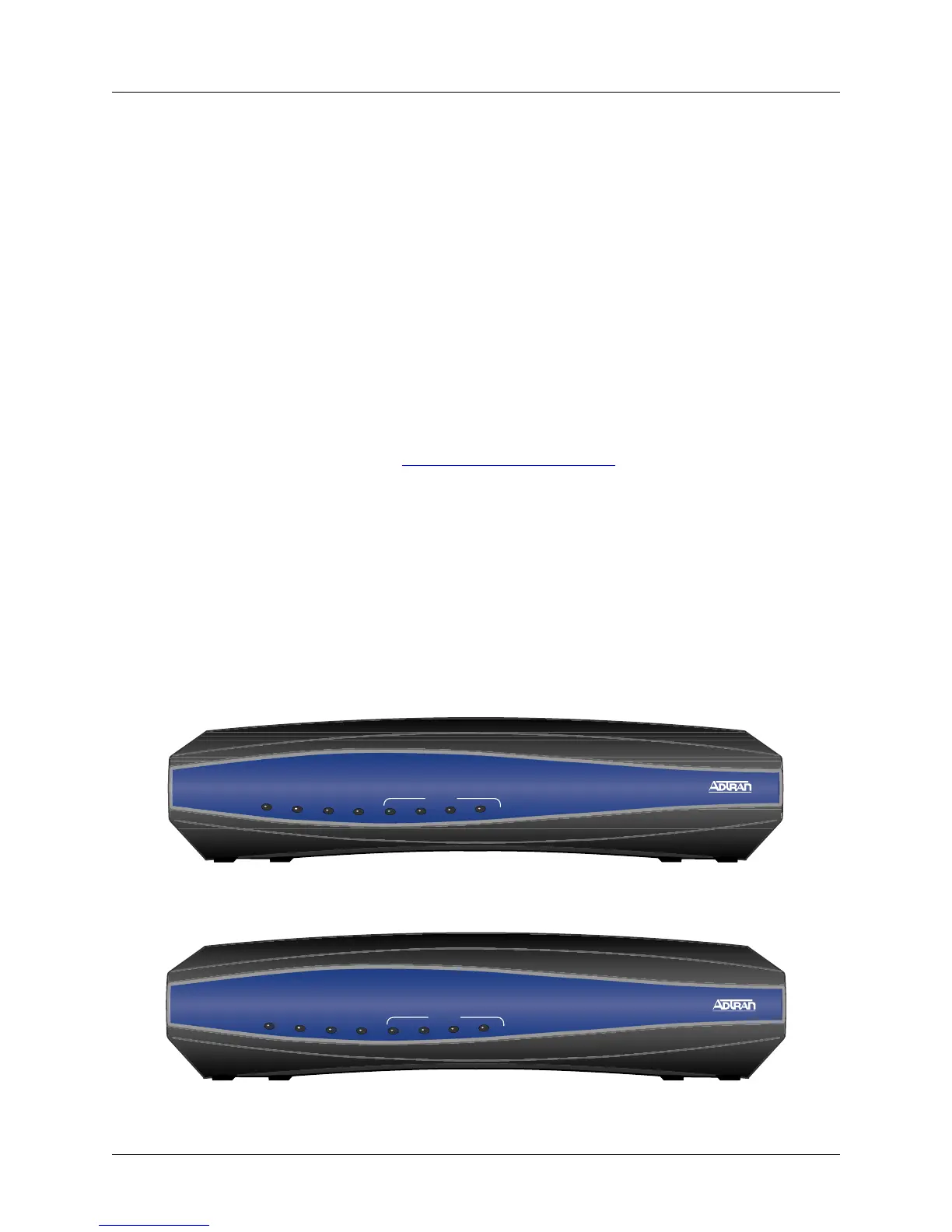

Figure 5. NetVanta 3130 (with DBU) Front Panel Layout
Figure 6. NetVanta 3130 (without DBU) Front Panel Layout
STAT
WAN
VPN
DBU
1
2
SWITCH
NetVanta 3130
3
4
STAT
WAN
VPN
INET
1
2
SWITCH
NetVanta 3130
3
4
