NetVanta 3100 Series Hardware Installation Guide Unit Installation
61700600L2-34C Copyright © 2015 ADTRAN, Inc. 33

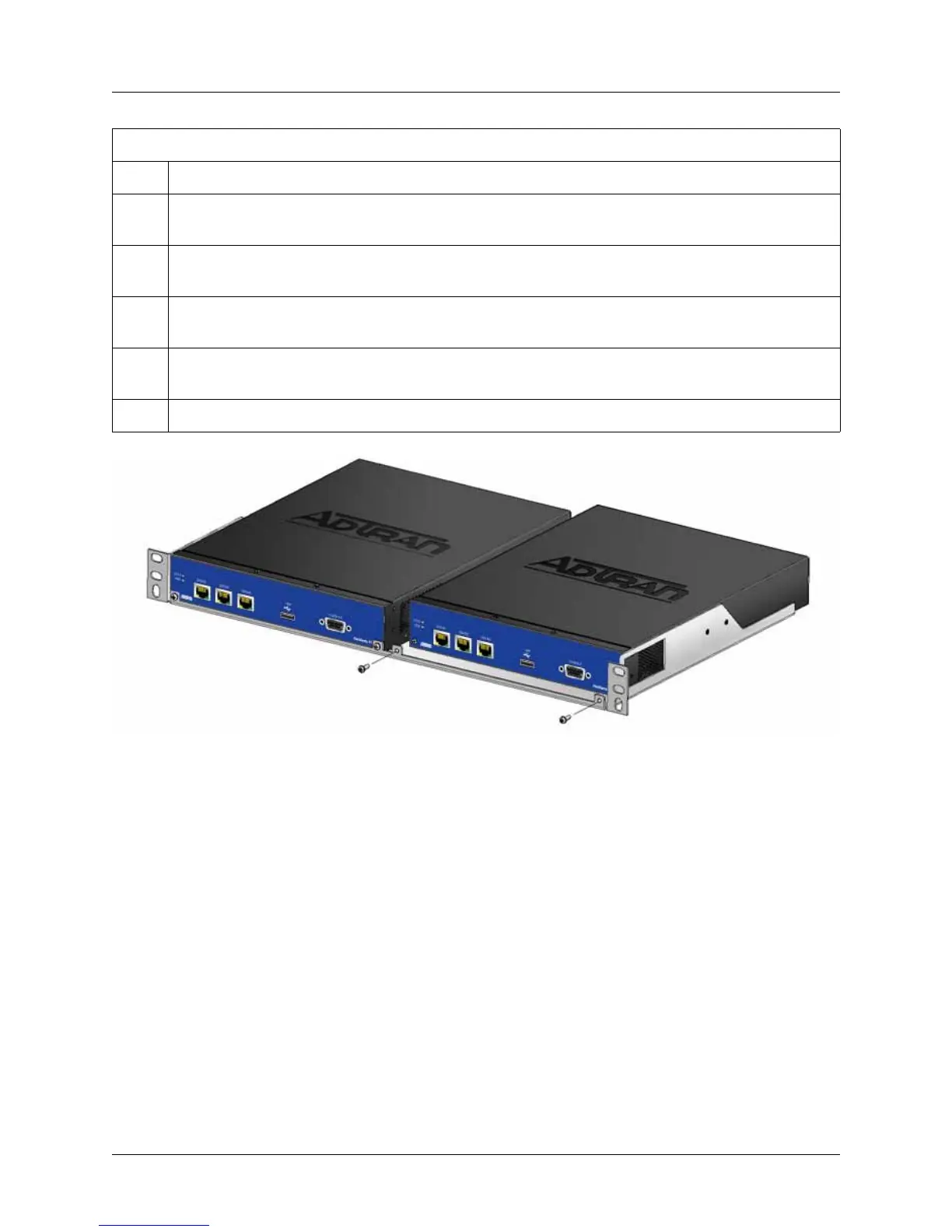

Figure 17. Dual Mounting Tray
Rack Mounting the NetVanta 3140 Using the Dual Mounting Tray
Step Action
1 Install the mounting tray (P/N 1700508F1) in a stationary 19-inch equipment rack using the
screws provided.
2 To allow proper grounding, scrape the paint from the rack around the mounting holes where the
tray will be positioned.
3 Position two NetVanta units side by side on the mounting tray lining up the holes in the front of the
NetVanta units with the holes in the tabs on the front of the tray (see Figure 17).
4 Insert the provided screws through the tabs into the NetVanta units securing them with a
screwdriver.
5 Apply power to the units (refer to Supplying Power to the Unit on page 34).
