NetVanta 3100 Series Hardware Installation Guide Physical Descriptions
61700600L2-34C Copyright © 2015 ADTRAN, Inc. 23
NetVanta 3140 Front Panel Design

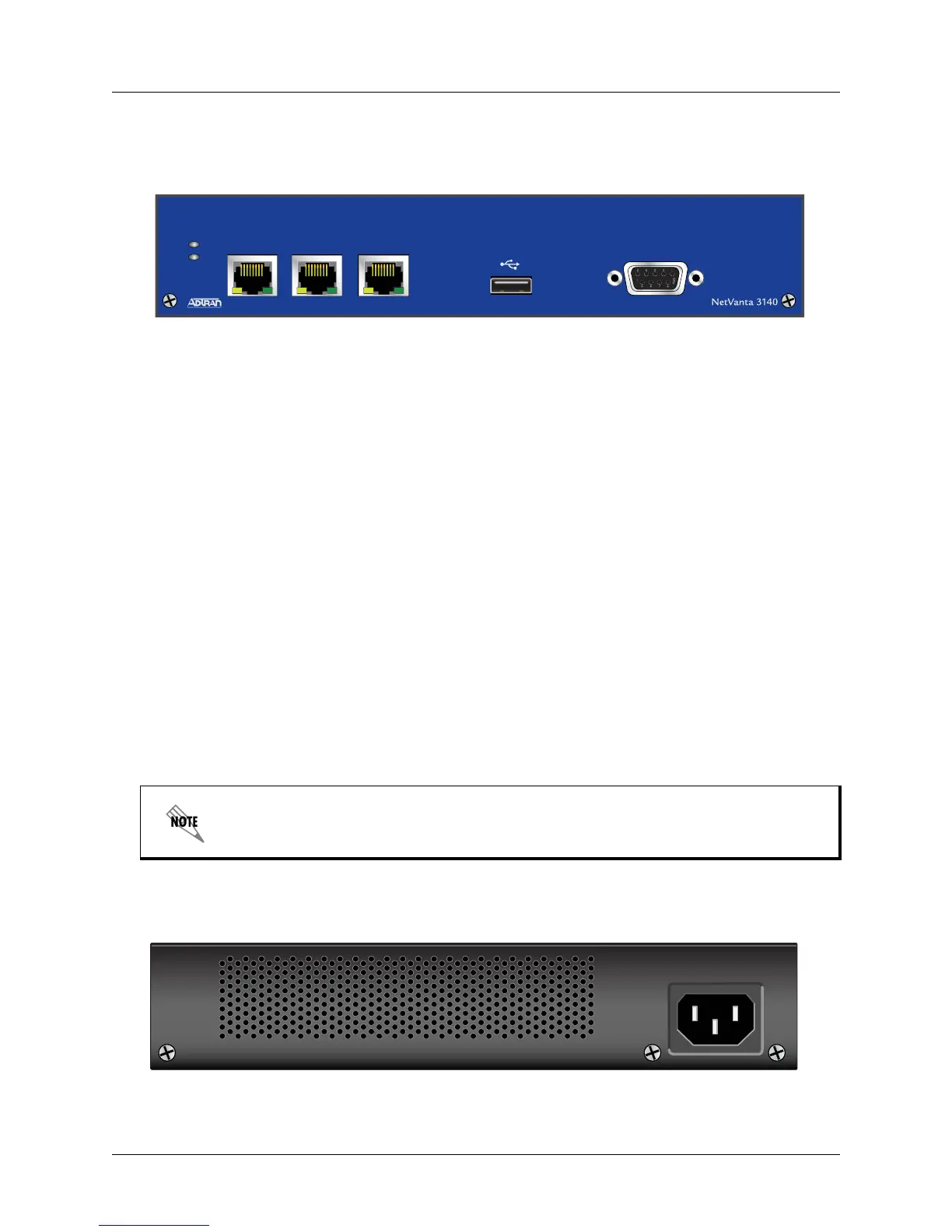

The NetVanta 3140 front panel is shown below. Front panel LED descriptions are given in Table 2 on page 25.
Figure 11. NetVanta 3140 Front Panel Layout
NetVanta 3140 Front Panel Interfaces
10/100/1000Base-T Gigabit Ethernet Interfaces
The GIG 0/1, GIG 0/2, GIG 0/1 interfaces provide three fixed RJ-45 connectors. The Ethernet ports
provide the following:
• 10Base-Te, 100Base-T, or 1000Base-T via RJ-45
• Auto-negotiation
•CSMA/CD
• IEEE 802.3 compatibility
• Auto MDIX
USB Interface (Future Release)
The USB interface is a type A USB host connector and is provided for use with 3G/4G modems or
flash drives.
CONSOLE Interface
The CONSOLE interface is an EIA-232 serial port (DCE) that provides local management and
configuration (via a DB-9 female connector).
NetVanta 3140 Rear Panel Design
The NetVanta 3140 rear panel is shown below.
Figure 12. NetVanta 3140 Rear Panel Layout
Connection directly to an external modem requires a cross-over cable.
STAT
USB
CONSOLE
USB
GIG 0/1 GIG 0/2 GIG 0/3
AC INPUT
